GVT-2000 Version: 1
RJ45 zu SFP Gigabit-Mediakonverter

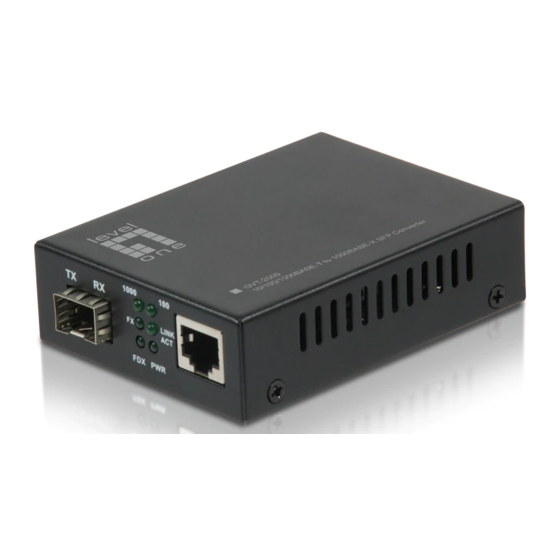

The GVT-2000 media converter is able to convert network signals between copper and fiber-optic based
networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-
T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and
1000Base-T auto-sensing.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP
(Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss,
as well as cut through and smart pass through mode.
The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used
as a standalone unit or as a slide-in module to the CHV-2000 19" converter rack, which can accommodate
up to 14 units for use in a central wiring closet.
Key-features
- Überträgt Daten von 10/100/1000Base-T-Kupfer- zu Glasfaserschnittstellen
- SFP-Steckplatz unterstützt steckfähige optische Gigabit-Module, wodurch Sie aus einer Vielzahl von
Transceivern wählen können
- 9K-Jumbo-Frames für bessere Datenübertragungsraten
- Integrierte LFP- (Link Fault Pass-through) (LLCF/LLR) Technologie
- IEEE-802.3x-Überwachung schützt vor verloren gegangenen Paketen und sorgt für zuverlässige
Datenübertragung
- Kippschalter zur angepassten Konfiguration
- Unterstützt Übertragung mit geringer Zeitverzögerung
www.level1.com
- Unterstützt Übertragung extralanger Pakete bis 1,6 kB
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for LevelOne GVT-2000
Summary of Contents for LevelOne GVT-2000
- Page 1 The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.
- Page 2 - -10°C ~ 55°C Betriebstemperaturbereich Works With CVH-2000 14-Slot Media Konverter Gehäuse GVT-2001 RJ45 zu SC Gigabit-Mediakonverter, Multi-Mode Fiber, 550m Specifications System Specifications Standards & Protocols: IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.3z 1000Base-SX/LX, Connectors and Cabling:...
- Page 3 Temperatur (°C): Storage: -40 ~75 °C Operating: -10 ~ 55 °C Luftfeuchtigkeit (nicht kondensierend ): 5 ~ 90 % Deployment: Desk, chassis mounted Physical Specifications Abmessungen (W x D x H mm): 71 x 94 x 26 mm Gewicht: 420 g Zuverlässigkeit MTBF: 50000hrs...
-
Page 4: Order Information
Diagramm Order Information GVT-2000 Package Contents GVT-2000 Netzadapter Quick Installation Guide Zubehör CVH-2000 14-Slot Media Konverter Gehäuse No liability or responsibility for any errors or omissions in the content. Specifications are subject to change without notice. All mentioned brand names are registered trademarks and property of their owners.
