- Page 2 10. FVT-0103TXFC Technical Specifications • Standards : IEEE802.3u 10/100Base-TX, 100Base-FX IEEE802.3af Power over Ethernet • UTP Cable : Cat. 5 cable and up to100m Fiber Cable : μ 50/125, 62.5/125 or 100/140 m multi-mode • PoE Power Reception Supports : “Endpoint”...
- Page 3 Switch-based Media Converter breaks up TP and Fiber segments’ collision domain to extend the cabling distance. • TP Cable Limitations: Cat. 5 and up to 100m • Converter Fiber Cable Limitations: FVT-0103TXFC Multi-mode Half-duplex 412m Multi-mode Full-duplex...
- Page 4 2. Model Description DC Jack 2.5mm Model Power Description DC Input : +5V 2.5A FVT-0103TXFC 60mA@-48VDC over Cat.5 The 100Mbps Fiber Transceiver Wavelength 1310nm SC multi-mode 2Km Fig. 10 DC+5V Input Jack and Dimension 8. Connecting to TP, Fiber Device...
- Page 5 3. Checklist 10/100 10/100 Remote Before you start installing the FVT-0103TXFC Converter, Station Switch Switch verify that the package contains the following: ⎯ 100TX to 100FX SC multi-mode POE Converter ⎯ This User's Manual Fiber ● ● ● ● ●...

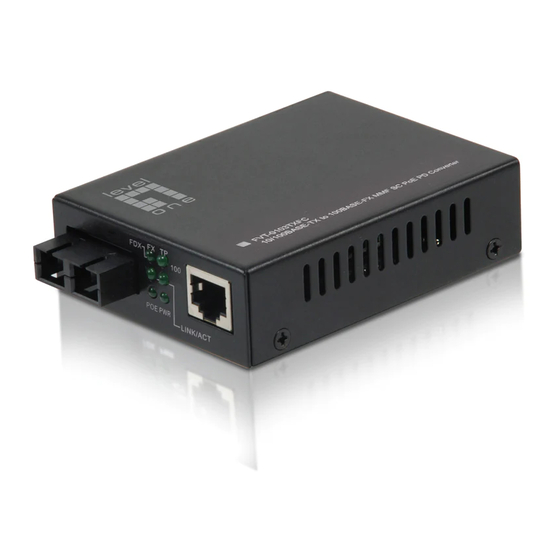

- Page 6 Also refer to Fig. 8 and Fig. 9 for the erroneous status when TP Cable A, Fiber Cable B or Fig. 1 The View of FVT-0103TXFC PoE Converter Fiber Cable C fails to connect. Note: Link fault pass through (LFP) function only takes effect as S1-Bit4 (see Fig.
- Page 7 Midspan : -48V via TP pin 4,5,7,8 /COL PD IN Bridge Media Converter 10/100Base-TX to 100Base-FX Fig. 4 FVT-0103TXFC PoE Converter Front Panel This device complies with Part 15 of the FCC Rules 5VDC MADE IN TAIWAN Fig. 5 FVT-0103TXFC PoE Converter Rear Panel...
