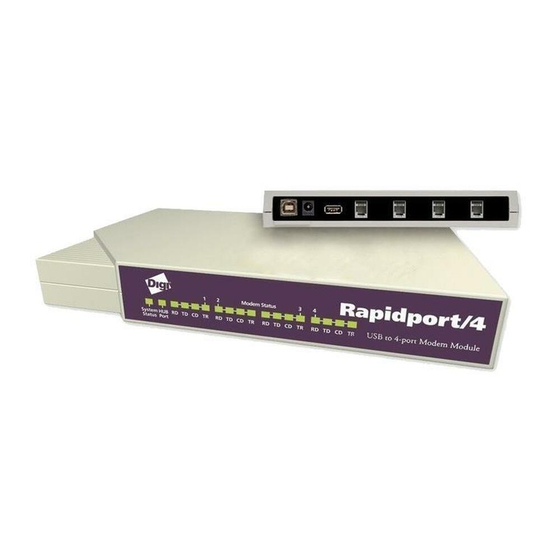

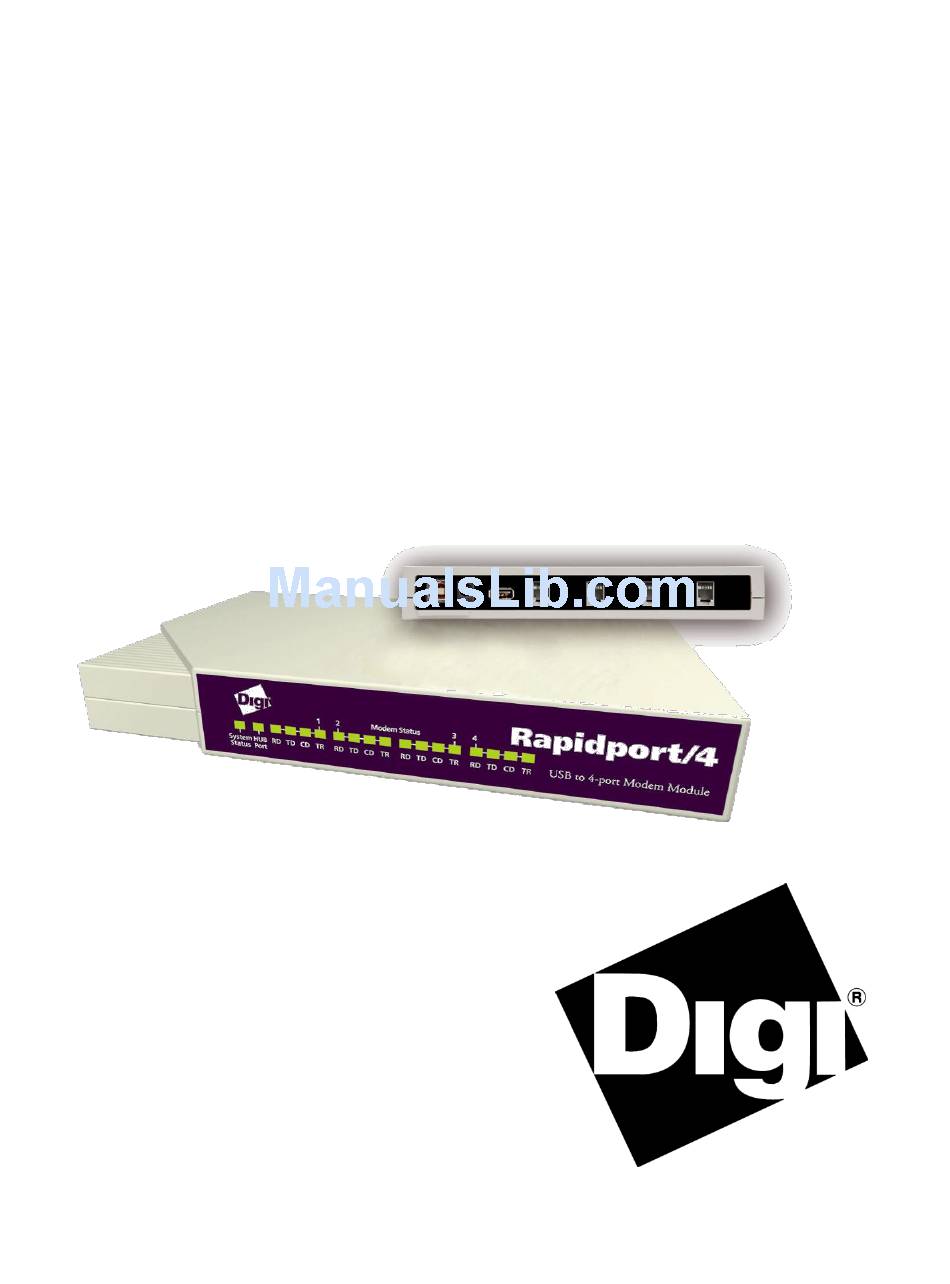

- Page 1 Rapidport ® USB TO 4 PORT MODEM MODULE Installation Guide www.digi.com...
-
Page 2: Table Of Contents
Table of Contents Cabling Rapidport ..................1 Installing Rapidport Drivers ................2 Installing the Rapidport Modems..............3 Interpreting the Status Lights ...............3 The Edgeport Utility Program ..............4 Regulatory & Other Information ...............10... -
Page 3: Cabling Rapidport
1) Connect one end of the power supply* into the back of your Rapidport and the other end into an AC outlet. 2) Connect one end of the phone cord** to Port 1 on the back of the Rapidport and the other end to an analog phone jack. -
Page 4: Installing Rapidport Drivers
Note: You must be logged into an account with administrator privileges before proceeding. Note: Please go to www.digi.com to download software for older Operating Systems. 1. Connect the USB cable. (Refer to the Table of Contents to locate the cabling instructions for your specific Edgeport model.) If your computer is connected to the internet, the latest Microsoft certified... -
Page 5: Installing The Rapidport Modems
The red light will also blink during installation until the installation is complete. Amber This light signifies serial port activity on the Rapidport. The yellow light may also flash briefly during installation. -
Page 6: The Edgeport Utility Program
The Edgeport Utility Program (For All Windows Operating Systems) The Edgeport configuration utility program (edgeport.exe) allows you to manage the serial ports of your Rapidport product. Note that with Windows NT you must have administrative privileges in order to change the COM port settings. - Page 7 (~56 bytes). This flag causes the Edgeport to poll the RX FIFO for received bytes. If any bytes are available they will be sent to the driver without any delay. Rapidport Installation Guide (90000665 Rev. C) – Page 5...
- Page 8 If we do not receive any bytes in 200ms we may report an erroneous event even if there are available bytes in the Edgeport device or driver. Rapidport Installation Guide (90000665 Rev. C) – Page 6...
- Page 9 Test Ports - Perform a confidence test on the internal workings of the serial ports. Power Management – Turn on and off the power for Hubports with USB PlusPower ports Rapidport Installation Guide (90000665 Rev. C) – Page 7...
- Page 10 Advanced Tab The Advanced tab allows you to do the following: Uninstall the drivers. Enable Event Logging – Place event messages in system event log. Configure how COM ports will be assigned. Rapidport Installation Guide (90000665 Rev. C) – Page 8...
- Page 11 When using this mode, converters are identified not by their serial number, but by a 2-7 digit number that identifies which USB port it is plugged into. After changing this setting, you will need to reboot before the change takes effect. Rapidport Installation Guide (90000665 Rev. C) – Page 9...
-
Page 12: Regulatory & Other Information
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Rapidport Installation Guide (90000665 Rev. C) – Page 10... - Page 13 Class B & CISPR 22 Class B emission and CSA No. 950 immunity tests and the EN61000-3-2(2000), EN61000-3-3(1995) current harmonics and voltage variation tests. Actual test levels are listed in the appropriate tables. Quality Manager Austin, Texas July 2006 Rapidport Installation Guide (90000665 Rev. C) – Page 11...
- Page 14 Digi International 11001 Bren Road East Minnetonka, MN 55343 digi.info@digi.com www.digi.com Corporate Headquarters: 952-912-3444 877-912-3444 Fax: 952-912-4952 Digi Europe: +49-231-9747-0 Digi Hong Kong: +852-2833-1008 Digi North America: 877-912-3444 Rapidport Installation Guide (90000665 Rev. C) – Page 12...
