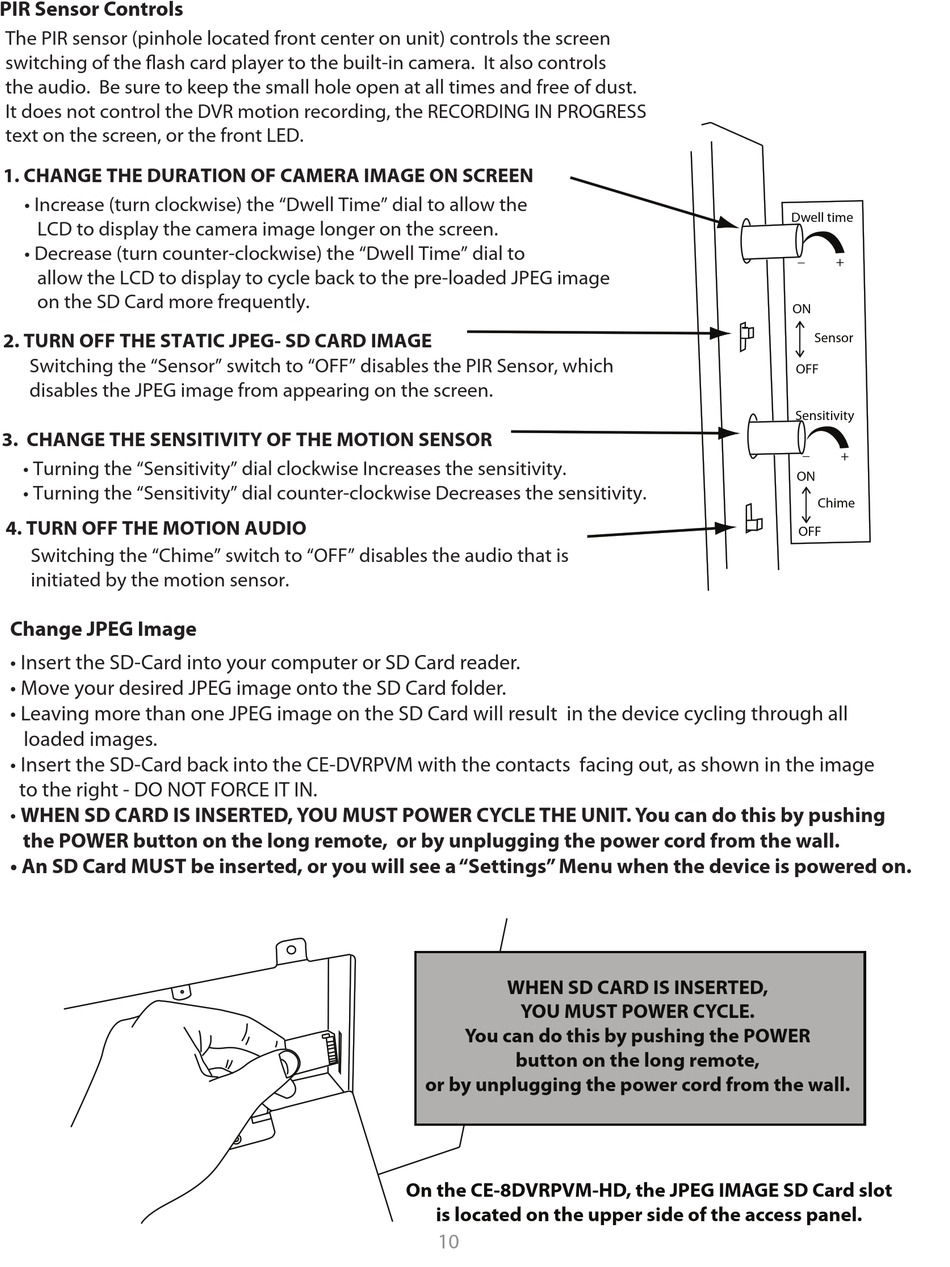

PIR SENSOR CONTROLS
PIR Sensor Controls
1. CHANGE THE DURATION OF CAMERA IMAGE ON SCREEN
PIR SENSOR CONTROLS
2. TURN OFF THE STATIC JPEG- SD CARD IMAGE
1. CHANGE THE DURATION OF CAMERA IMAGE ON SCREEN
3. CHANGE THE SENSITIVITY OF THE MOTION SENSOR
4. TURN OFF THE MOTION AUDIO 2. TURN OFF THE STATIC JPEG- SD CARD IMAGE
Change JPEG Image 3. CHANGE THE SENSITIVITY OF THE MOTION SENSOR
• Insert the SD-Card into your computer or SD Card reader.
• Move your desired JPEG image onto the SD Card folder.
• Leaving more than one JPEG image on the SD Card will result in the device cycling through all
4. TURN OFF THE MOTION AUDIO
loaded images.
• Insert the SD-Card back into the CE-DVRPVM with the contacts facing out, as shown in the image
to the right - DO NOT FORCE IT IN.
• WHEN SD CARD IS INSERTED, YOU MUST POWER CYCLE THE UNIT. You can do this by pushing
the POWER button on the long remote, or by unplugging the power cord from the wall.
• An SD Card MUST be inserted, or you will see a "Settings" Menu when the device is powered on.
WHEN SD CARD IS INSERTED,
YOU MUST POWER CYCLE.
You can do this by pushing the POWER
button on the long remote,
or by unplugging the power cord from the wall.
WHEN SD CARD IS INSERTED,
On the CE-8DVRPVM-HD, the JPEG IMAGE SD Card slot
YOU MUST POWER CYCLE.
is located on the upper side of the access panel.
You can do this by pushing the POWER
button on the long remote,
or by unplugging the power cord from the wall.
On the CE-8DVRPVM-HD, the JPEG IMAGE SD Card slot
is located on the upper side of the access panel.
10
