SPEEDZONE ELITE/COMP CYCLOCOMPUTER
Congratulations on your purchase and welcome to the growing number of cyclists who are discovering a powerful new
generation of bicycle computers. Your Specialized SpeedZone Cycle Computer has been designed to provide the best
combination of performance, features, durability and ease of use and installation.
This manual is an important part of your SpeedZone Cycle Computer. To get the most enjoyment out of your SpeedZone
Cycle Computer, please read all sections carefully and reference it when preforming the initial programming and operation
of the unit. Once you are familiar with all functions of your SpeedZone Cycle Computer, store this manual in a safe location
for future reference.
SPEEDZONE ELITE/COMP FEATURES
• Time of Day
• Odometer
• Wheel Size Settings
• Speed
• Average Speed
• Maximum Speed
• Individual Trip Distance (TRP)
• Cadence*
• Average Cadence*
• Maximum Cadence*
• Temperature
• Stopwatch Chronograph (
COMP ONLY
• Interval Countdown Timer (
COMP ONLY
• Wireless Speed (
)
COMP ONLY
* Standard on Elite. Available with
Cadence Harness option on Comp
)
)
1

Advertisement

Table of Contents
loading

Related Manuals for Specialized SpeedZone

Summary of Contents for Specialized SpeedZone

  • Page 1 Cycle Computer, please read all sections carefully and reference it when preforming the initial programming and operation of the unit. Once you are familiar with all functions of your SpeedZone Cycle Computer, store this manual in a safe location for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS COMPONENTS OF THE CYCLOCOMPUTER RESET THE CYCLOCOMPUTER CHANGING THE BATTERY SWITCH BETWEEN BIKE 1 / BIKE 2 INSTALLING THE STEM MOUNT BRACKET (COMP ONLY) OPERATING THE INTERVAL TIMER INSTALLING THE HANDLE BAR BRACKET RESET SERVICE REMINDER INSTALLING THE SPEED &...

  • Page 3: Components Of The Cyclocomputer

    COMPONENTS OF THE CYCLOCOMPUTER CHANGING THE BATTERY SpeedZone Cycle Computers are powered by a CR2032 3v Lithium Battery. Under normal conditions, battery life should be approximately one year. FACE OF COMPUTER INSTALLING OR REPLACING THE COMPUTER BATTERY Using a coin or flathead screwdriver, turn the battery door counter clockwise and ZIP- TIES remove the battery compartment cover.

  • Page 4: Installing Bar Handle/Steering Column Bracket

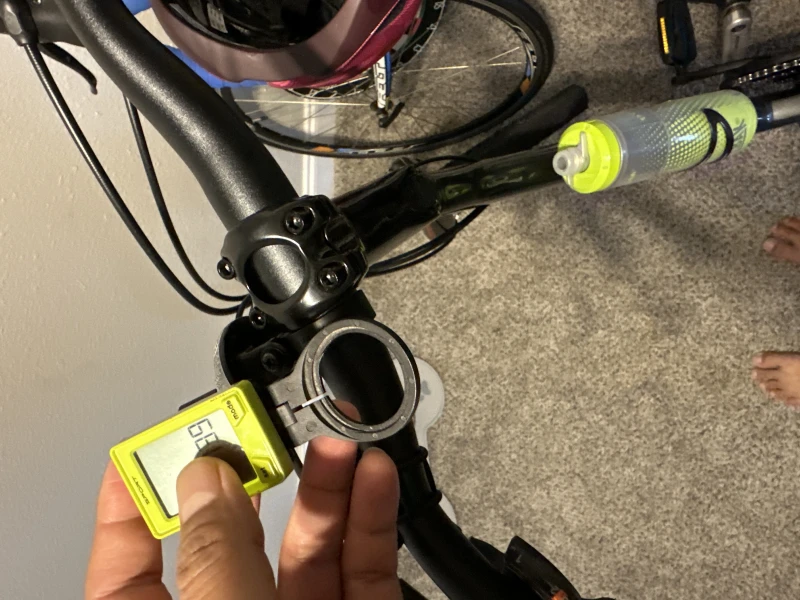

    On bikes with high-rise stems or threaded headsets, SpeedZone computers give you the SpeedZone computers give you the option of mounting the computer in-line with your stem. This option is ideal for aero bars or to keep a visually balanced look to the handlebars.

  • Page 5: Installing The Speed & Cadence Sensor

    On the SpeedZone Elite, both speed and cadence are picked up from the rear wheel using a special bracket, which has Adjust the position of the sensor and magnet so they are in proper alignment as shown in the drawing. Tighten the two sensors at the end of a long wire.

  • Page 6: Installation The Speed & Cadence Sensor

    INSTALLING THE SPEED & CADENCE SENSOR INSTALLING THE SPEED & CADENCE SENSOR SPEEDZONE COMP - WIRELESS SPEED SENSOR SPEEDZONE COMP - WIRED REAR CADENCE HARNESS INSTALLATION (CADENCE HARNESS AVAILABLE SEPARATELY) Pass the two cable ties through the sensor mounting holes and loosely mount to the left fork Attach the cadence sensor to the LEFT chain stay near where the crank/pedal pass the ����������...

  • Page 7: Display And Mode Symbols

    DISPLAY ICONS AND THEIR MEANINGS DISPLAY ICONS AND THEIR MEANINGS DISPLAY SYMBOLS MODE SYMBOLS symbol description what it means symbol description what it means MULTI-STAGE SPEED RIDE TIME Indicates whether current speed is greater than, less than or equal to Total ride time is displayed COMPARATOR the average calculated speed.

  • Page 8: Keys And Their Functions

    PREV KEY SELECT KEY The SpeedZone Elite has 3 individual keys and the SpeedZone Comp has 4 induvidual keys. Each key has several functions. The drawing identifies the keys and their names as used in this manual. • Scroll through Display Modes •...

  • Page 9: Fixed/Independent Display Mode

    MODES OF OPERATION MODES OF OPERATION FIXED DISPLAY MODE INDEPENDENT DISPLAY MODE In FIXED display mode, MIDDLE and LOWER information lines are tied in display navigation. Scroll through display modes In INDEPENDENT display mode, MIDDLE and LOWER information lines can be navigated independent of each other. One by PRESSING the NEXT or PREV keys.

  • Page 10: Primary Setting Sequence

    PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER PRIMARY SETTING SEQUENCE SETTING THE INTERVAL TIMER ( COMP ONLY From any main mode screen PRESS & HOLD the PREV key to enter the primary setting sequence. From the set interval timer screen PRESS the SELECT key to enter the set interval timer sequence. ADJUST the value being programmed by PRESSING the PREV (to increase) or NEXT (to decrease) keys.

  • Page 11: Setting The Time

    From the set clock screen PRESS the SELECT key to enter the set time sequence. ADJUST the value being For easy setup, SpeedZone computers come with 14 pre-programmed wheel/tire sizes. Simply select the programmed by PRESSING the PREV (to increase) or NEXT (to decrease) keys. SET the displayed value size of your tire as you scroll through the list in the programming sequence and you are done.

  • Page 12: Manually Setting Wheel Size

    If your wheel/tire size is not one of the pre-programmed sizes, or if you desire absolute accuracy, you may enter an exact SpeedZone Cycle Computers allow you to manually adjust the Odometer. From the SET ODO screen PRESS the SELECT key to enter the setting sequence.

  • Page 13: Reset The Cyclocomputer

    RESET THE CYCLOCOMPUTER SWITCH BETWEEN BIKE 1 / BIKE 2 To reset the computer (to clear Ride Time & Trip Distance), from any operating mode screen PRESS & HOLD the PREV and To switch between Bike 1 / Bike 2, from any operating mode screen PRESS & HOLD the NEXT key to switch between NEXT keys simultaneously to reset the cyclocomputer.

  • Page 14: Operating The Interval Timer

    COMP ONLY CLEARING THE STOPWATCH/ INTERVAL TIMER SpeedZone Comp Cycle Computers are equipped with a STOPWATCH / INTERVAL TIMER. The Stopwatch (STP) and Interval Timer (INT) may be started, stopped and cleared only in Stopwatch (STP) mode. The stopwatch and interval timer may be cleared by PRESSING & HOLDING the S/S key when the timer is stopped.

  • Page 15: Reset Service Reminder

    RESET SERVICE REMINDER SPECIFICATIONS AND RANGES TIME OF DAY STOPWATCH CHRONOGRAPH The Service Reminder Icon will be displayed after 1500 miles have acculmulated on the units odometer. To reset the Service Reminder Icon, from any main mode screen PRESS & HOLD the PREV and NEXT keys simultaneously. •...

  • Page 16: Troubleshooting

    Specialized cycling computers are guaranteed to be free from defects in materials and/or workmanship (excluding computer (see page 15). battery) for a period of two years from the date of purchase. Specialized will, at its option, repair or replace your defective •...
