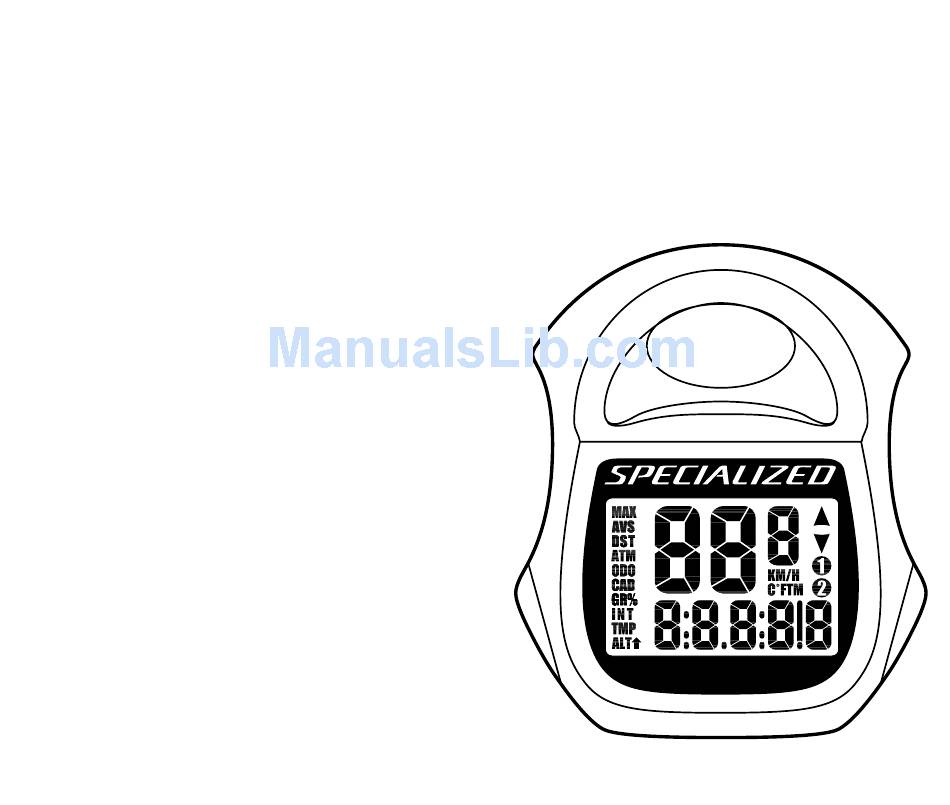

SPEEDZONE ELITE CYCLOCOMPUTER
Congratulations on your purchase and welcome to the growing number of
cyclists who are discovering a powerful new generation of bicycle computers.
Your Specialized SpeedZone
Elite has been designed to provide the best combi-
®
nation of performance, features, durability and ease of use and installation.
The following functions are available on
your SpeedZone Elite bicycle computer:
• SPD - Current Speed
• AVS - Average speed
• MAX - Maximum Speed
• ATM - Automatic Start/Timer
• DST - Trip Distance
• ODO - Odometer (total distance)
• ASI - +/- Average Speed Indicator
• TM - Stopwatch
• INT - Interval Timer
• CAD - Cadence
• Digital 12/24 Hour Clock
1
Advertisement
Table of Contents
Related Manuals for Specialized Elite CylcoComputer
Summary of Contents for Specialized Elite CylcoComputer
- Page 1 SPEEDZONE ELITE CYCLOCOMPUTER Congratulations on your purchase and welcome to the growing number of cyclists who are discovering a powerful new generation of bicycle computers. Your Specialized SpeedZone Elite has been designed to provide the best combi- ® nation of performance, features, durability and ease of use and installation.
- Page 2 This computer also features: • Second Wheel Option • Easy Calibration Mode • Wireless Mounting System • Heavy-duty abrasion resistant pick-up wire • Water resistant housing • 2 Year Warranty • Backlit LCD display What is included in your SpeedZone Elite package: 1.
- Page 3 Tighten the magnet and transmitter. Do not over-tighten the magnet screw. (See figure 2). Attach the mount to the handlebar using the bracket screw provided. Tighten so that the bracket cannot rotate on the handlebar. There are sev- eral sizing straps provided to fit differ- ent diameter bars.
-
Page 4: Wheel Circumference Selection
Hold down the "FUNCTION" button tires you are using, you can use and ‘tap’ the "MODE" button once. Specialized’s "Easy Calibration Mode" The Km/h indicator will flash. If the or measure your actual tire circumfer- Km/h setting is correct press the ence by the rollout method. - Page 5 Elite has been tire sizes tap both the "MODE" and ® preprogrammed with the following "FUNCTION" buttons simultaneously. 14 Specialized tire sizes: When you reach the desired tire size 26 X 1.0 26 X 2.2 press the "FUNCTION" button once to 26 X 1.25...
- Page 6 You may also use the following quick-reference chart: Generic Tire Size Chart (This chart is for non-specialized tires) 26 X 1.75 2140 26 X 2.0 2074 26 X 2.1 2090 650C X 20 1945 700C X 26 2124 700C X 38...
- Page 7 based on the total time the stopwatch 5. Timer Selection The timer can be selected for either is turned on or activated. Automatic Timer Mode (ATM) or Timer (See figure 11) Mode (TM). The ATM selection allows To select either TM or ATM, first you to keep track of your actual riding press the "MODE"...
- Page 8 COMPUTER FUNCTIONS +/- Average Speed Indicator Speedometer An up or down arrow displayed in Speed is always indicated on the top the upper right side of the screen line of the screen. The speed is shown shows whether the current speed is continuously up to 99.9 M/h (99.9 above or below the average speed.
- Page 9 the efficiency with which you ride your bicycle. Simply put, the best cadence is a balance between leg speed and pedal pressure. Beginning cyclists typically prefer to pedal at a slower cadence, around 60-rpm, while advanced cyclists and racers are more efficient between 90 and 100 rpm.
- Page 10 (An accessory your odometer reading and wheel handlebar mount is available from circumference settings so that you can your Specialized dealer) re-enter them when you restart the computer. Turn the computer over so the display is facing downward. Use a coin to unthread the battery cap from the computer.
- Page 11 (excluding battery) for a period of two years from the date of purchase. Specialized will at its option, repair Elite Computer or replace your defective computer. ® To receive warranty service send the...
- Page 12 Trip Distance (DST) 0 to 999.99 miles or Km Odometer (ODO) 0 to 99,999 miles or Km Operating Temperature 40°F to 104°F (4°C to 40°C) SpeedZone is a registered trademark of Specialized Bicycle Components Inc. © 2000 Specialized Bicycle Components Inc.
Need help?
Do you have a question about the Elite CylcoComputer and is the answer not in the manual?
Questions and answers
How to change from mph to kph
To change the Specialized CycloComputer from mph to kph, press the "FUNCTION" button to enter the Miles or Kilometers selection mode. When the Km/h indicator flashes, select it and tap the "MODE" button once to confirm.
This answer is automatically generated
