SPEEDZONE SPORT CYCLOCOMPUTER
Congratulations on your purchase! You are now the owner of the world's
finest cyclocomputer. Your Specialized
ary new display screen that allows you to view five functions simultaneously.
Additionally, it has been designed to provide the best combination of
performance, features, durability and ease of use.

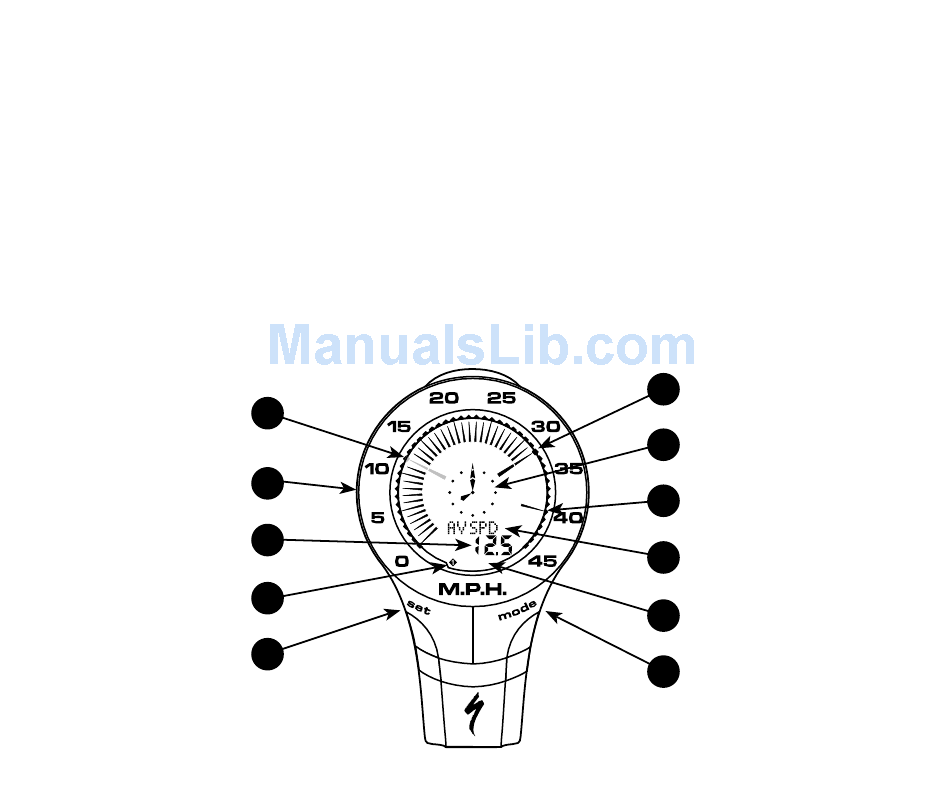

This illustration describes the screen display and buttons:
Average Speed Needle
(Flashing)
Speed Indication Bezel
Digital Display Area
Wheel Indicator
SET Button
11
8
5
6
2
SpeedZone
Sport features a revolution-
®
®
Km/h
Current Speed Needle
9
3
Analog Clock
10
Maximum Speed Needle
4
Dot-Matrix Display Area
MPH or KM/H Indicator
7
MODE Button
1
1
