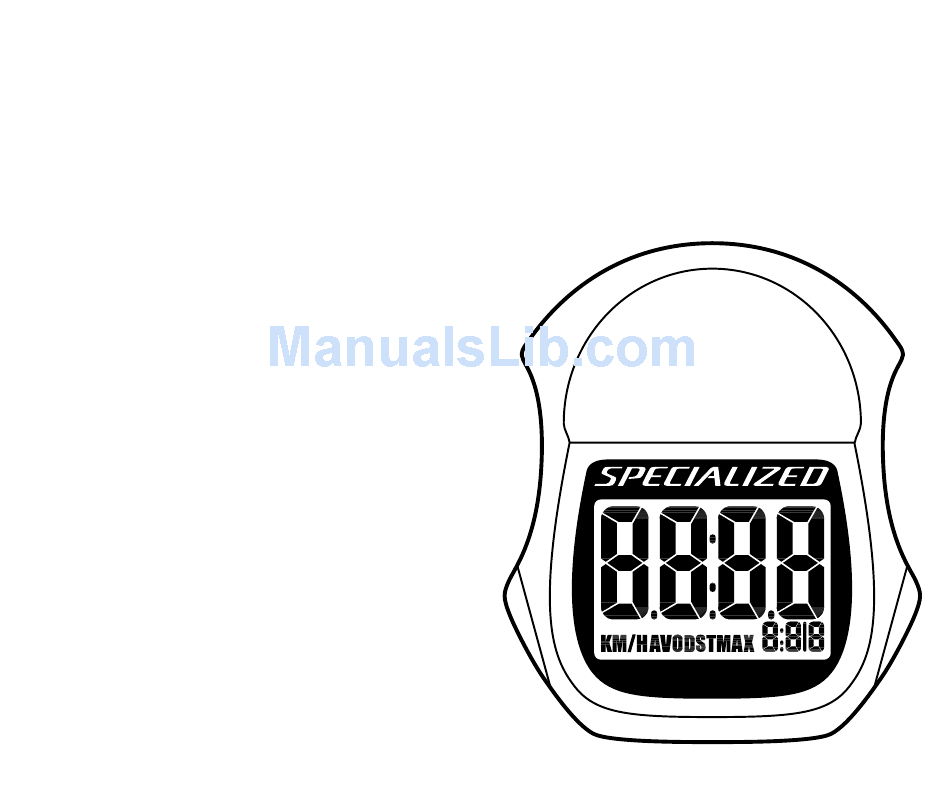

SPEEDZONE SPORT CYCLOCOMPUTER
Congratulations on your purchase and welcome to the growing number of
cyclists who are discovering a powerful new generation of bicycle computers.
Your Specialized SpeedZone
Sport has been designed to provide the best com-
®
bination of performance, features, durability, ease of use and installation.
Your SpeedZone Sport bicycle
computer is equipped with the
following functions:
• SPD - Current Speed
• AV – Average Speed
• MAX – Maximum Speed
• DST - Trip Distance
• OD - Odometer (total distance)
• TM – Ride Timer
• 12/24 Hour Digital Clock
• Easy Calibration Mode
1

Advertisement

   Related Manuals for Specialized SpeedZone Sport Bicycle

   Summary of Contents for Specialized SpeedZone Sport Bicycle

  • Page 1

    Your Specialized SpeedZone Sport has been designed to provide the best com- ® bination of performance, features, durability, ease of use and installation. Your SpeedZone Sport bicycle computer is equipped with the following functions: • SPD - Current Speed • AV – Average Speed •...

  • Page 2

    This computer also features: • Heavy-duty abrasion resistant pick-up wire • Water resistant housing • Dual Display LCD • 2 Year Warranty What is included in your SpeedZone Sport package: 1. SpeedZone Sport computer (1) 2. Mounting bracket (1) 3. Magnet with screw (1) 4.

  • Page 3

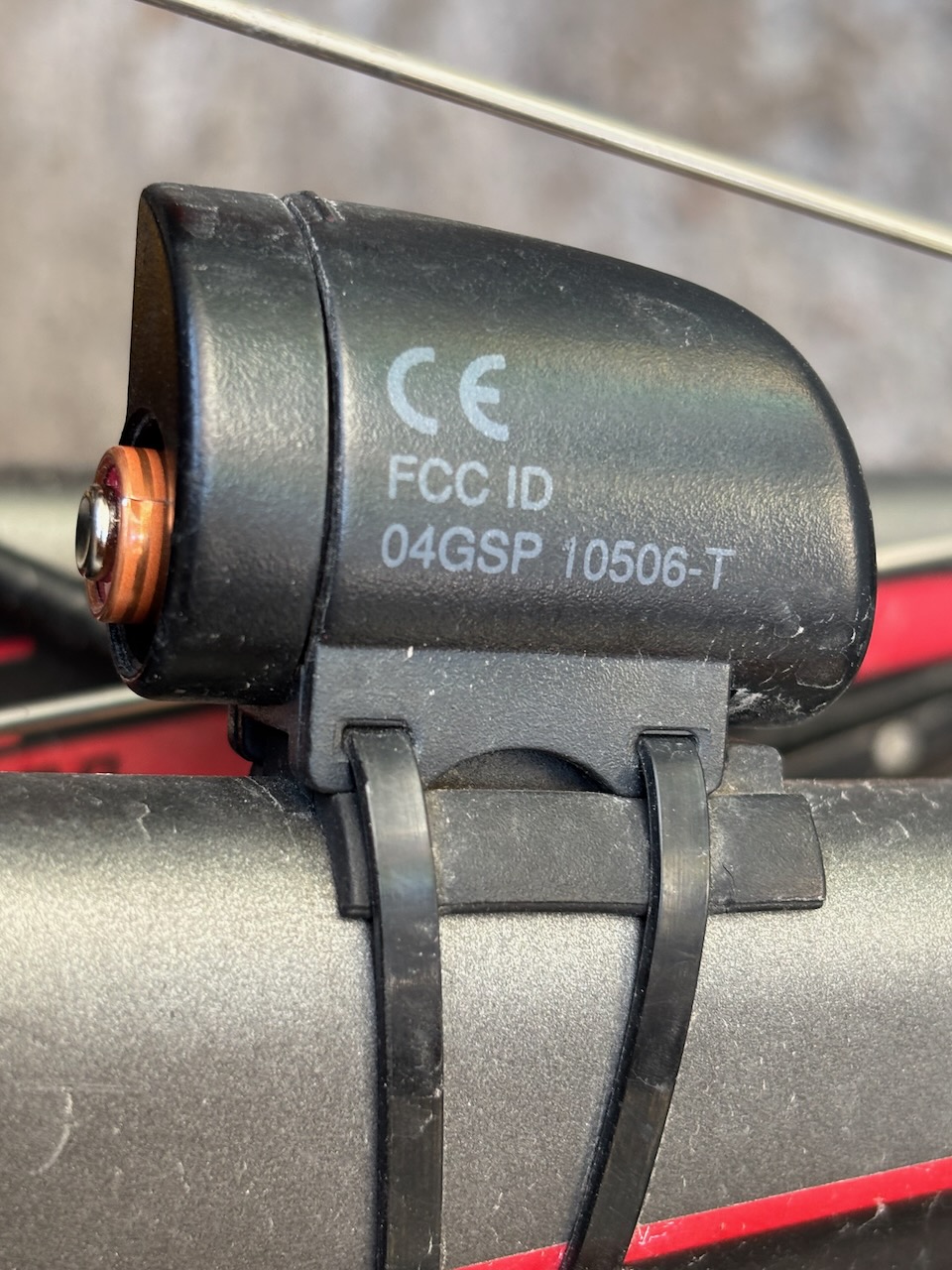

    FIGURE 1: FIGURE 2: SENSOR MAGNET PLACEMENT ATTACHMENT MOUNTING THE SPEEDZONE SPORT The SpeedZone Sport sensor can mount on the right or left side of the fork blade. Use the cable tie-wraps provided to position the sensor. Do not tighten until the final placement of the sensor magnet is correct.

  • Page 4

    sizing straps provided to fit different diameter bars. (See figure 3) Slide the computer forward onto the mounting until it ‘snaps’ into place with an audi- ble click. To remove the computer, push it backward until it releases from the mount.

  • Page 5

    and kilometers by pressing the "MODE" button. When the correct choice is flashing, select it by pressing the "FUNCTION" button. You will now enter the "Programmable Odometer" mode. If the odometer setting is correct push the "FUNCTION" button 4 times to exit to odometer mode.

  • Page 6

    Easy Calibration Mode: Your SpeedZone Comp has been preprogrammed with the following 14 Specialized tire sizes: 26 X 1.0 26 X 1.25 26 X 1.5 26 X1.9 26 X1.95 26 X 2.0...

  • Page 7

    FIGURE 5: EASY CALIBRATION SCREEN preprogrammed tire sizes tap both the "MODE" and "FUNCTION" buttons simultaneously. When you reach the desired tire size press the "FUNCTION" button once to select it and exit Easy Calibration Mode. Roll Out Method The roll out method will provide the most accurate computer calibration and can take into account variables such as inflation pressure, rim width...

  • Page 8

    Roll Forward Stem Wheel Circumference FIGURE 6: ROLL OUT METHOD Generic Tire Size Chart This chart is for non-Specialized brand tires: 26 X 1.75 26 X 2.0 26 X 2.1 650 X 20 700 X 25 700 X 38 Programming in the circumference:...

  • Page 9

    FIGURE 7: CIRCUMFERENCE PROGRAMMING SCREEN Press the "FUNCTION" button once exit to circumference programming mode. 4. Setting the Clock To enter the clock mode, press and hold the "MODE" button for three seconds. The time will now be displayed on your Speedzone.

  • Page 10

    the "MODE" button. (Hold the "MODE" button to scroll through the digits quickly) Press the "FUNCTION" button to set the minutes and return to clock mode (See figure 8) COMPUTER FUNCTIONS Speedometer Speed is displayed when M or KM appears on the bottom of the screen. Speed will record up to 99.9 M/h (99.9 Km/h) with a resolution of 0.1 M/h (0.1 Km/h)

  • Page 11

    FIGURE 10: MAXIMUM SPEED SCREEN Auto Start/Stop Timer (ATM) The stop watch function will operate only when there is speed input and records the actual time spent riding. Pressing the "FUNCTION" button for 3 seconds will reset the ATM display to zero. Trip Distance (DST) Trip distance mode will record up to 999.99 miles or kilometers and then...

  • Page 12

    FIGURE 12: ODOMETER SCREEN Odometer (OD) The odometer will record the total dis- tance traveled up to 99,999 miles or kilometers and then roll to zero. The odometer can be reset by pressing the "FUNCTION" button for three seconds. The total distance is shown on the lower line if the screen.

  • Page 13

    remove it from the handlebar mount. Before removing the battery make a note of your wheel circumference set- tings so that you can re-enter them when you restart the computer. Turn the computer over so the display is facing downward. Use a coin to unthread the battery cap from the computer.

  • Page 14: Troubleshooting

    TROUBLESHOOTING • Display is blank: Change the battery or press the AC button on the bottom of the case • Display shows partial digits: Press the AC button on the bottom of the case. • Speed/distance not recording: Check sensor/magnet alignment. Make sure that the sensor is no more than 1/16"...

  • Page 15

    (excluding battery) for a period of two years from the date of purchase. Specialized will at its option, repair or replace your defective computer. To receive warranty service send the unit, a copy of the sales receipt and a brief description of the problem to: Specialized Bicycle Components Inc.

  • Page 16: Specifications

    Average Speed (AV) 0 to 199 MPH or Km/h Maximum Speed (MAX) 0 to 100 MPH or Km/h Operating Temperature 40°F to 104°F (4°C to 40°C) SpeedZone is a registered trademark of Specialized Bicycle Components Inc. © 1998 Specialized Bicycle Components Inc.
