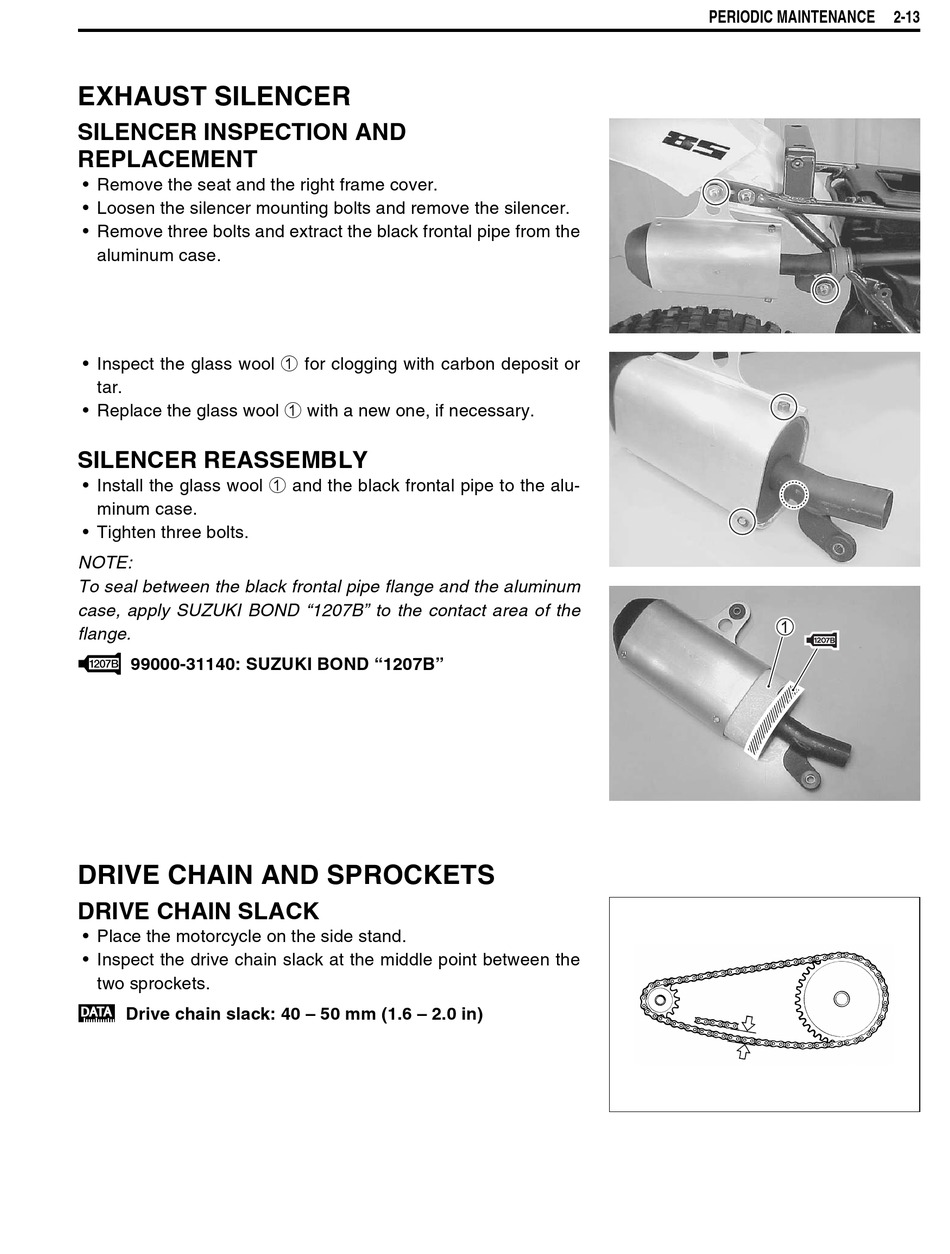

EXHAUST SILENCER

SILENCER INSPECTION AND
REPLACEMENT
• Remove the seat and the right frame cover.
• Loosen the silencer mounting bolts and remove the silencer.
• Remove three bolts and extract the black frontal pipe from the
aluminum case.
• Inspect the glass wool 1 for clogging with carbon deposit or
tar.
• Replace the glass wool 1 with a new one, if necessary.
SILENCER REASSEMBLY
• Install the glass wool 1 and the black frontal pipe to the alu-
minum case.
• Tighten three bolts.
NOTE:
To seal between the black frontal pipe flange and the aluminum
case, apply SUZUKI BOND "1207B" to the contact area of the
flange.
 99000-31140: SUZUKI BOND "1207B"

DRIVE CHAIN AND SPROCKETS

DRIVE CHAIN SLACK

• Place the motorcycle on the side stand.
• Inspect the drive chain slack at the middle point between the
two sprockets.
 Drive chain slack: 40 – 50 mm (1.6 – 2.0 in)
PERIODIC MAINTENANCE 2-13
