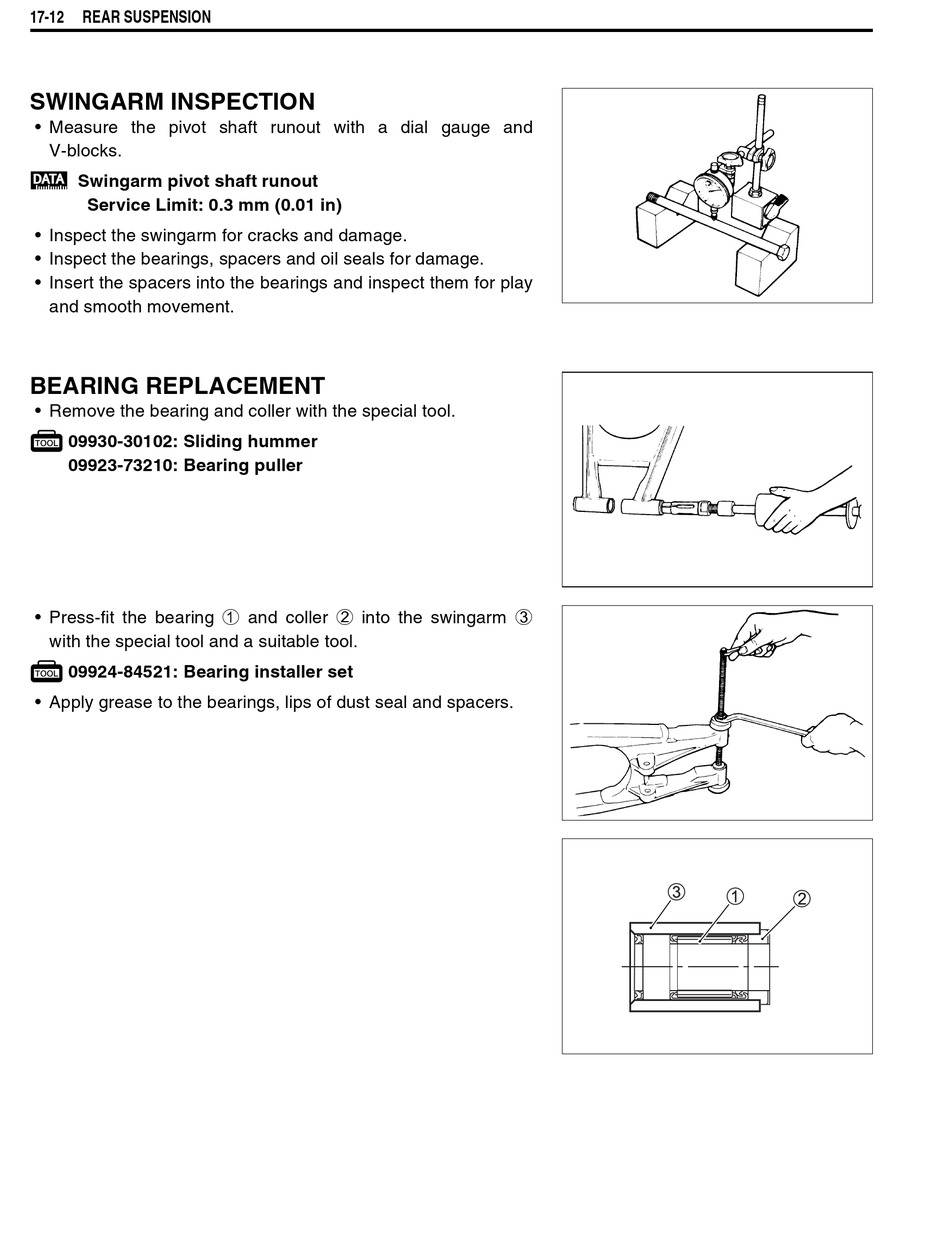

17-12 REAR SUSPENSION

SWINGARM INSPECTION

• Measure the pivot shaft runout with a dial gauge and
V-blocks.
 Swingarm pivot shaft runout
Service Limit: 0.3 mm (0.01 in)
• Inspect the swingarm for cracks and damage.
• Inspect the bearings, spacers and oil seals for damage.
• Insert the spacers into the bearings and inspect them for play
and smooth movement.

BEARING REPLACEMENT

• Remove the bearing and coller with the special tool.
 09930-30102: Sliding hummer
09923-73210: Bearing puller
• Press-fit the bearing 1 and coller 2 into the swingarm 3
with the special tool and a suitable tool.
 09924-84521: Bearing installer set
• Apply grease to the bearings, lips of dust seal and spacers.
