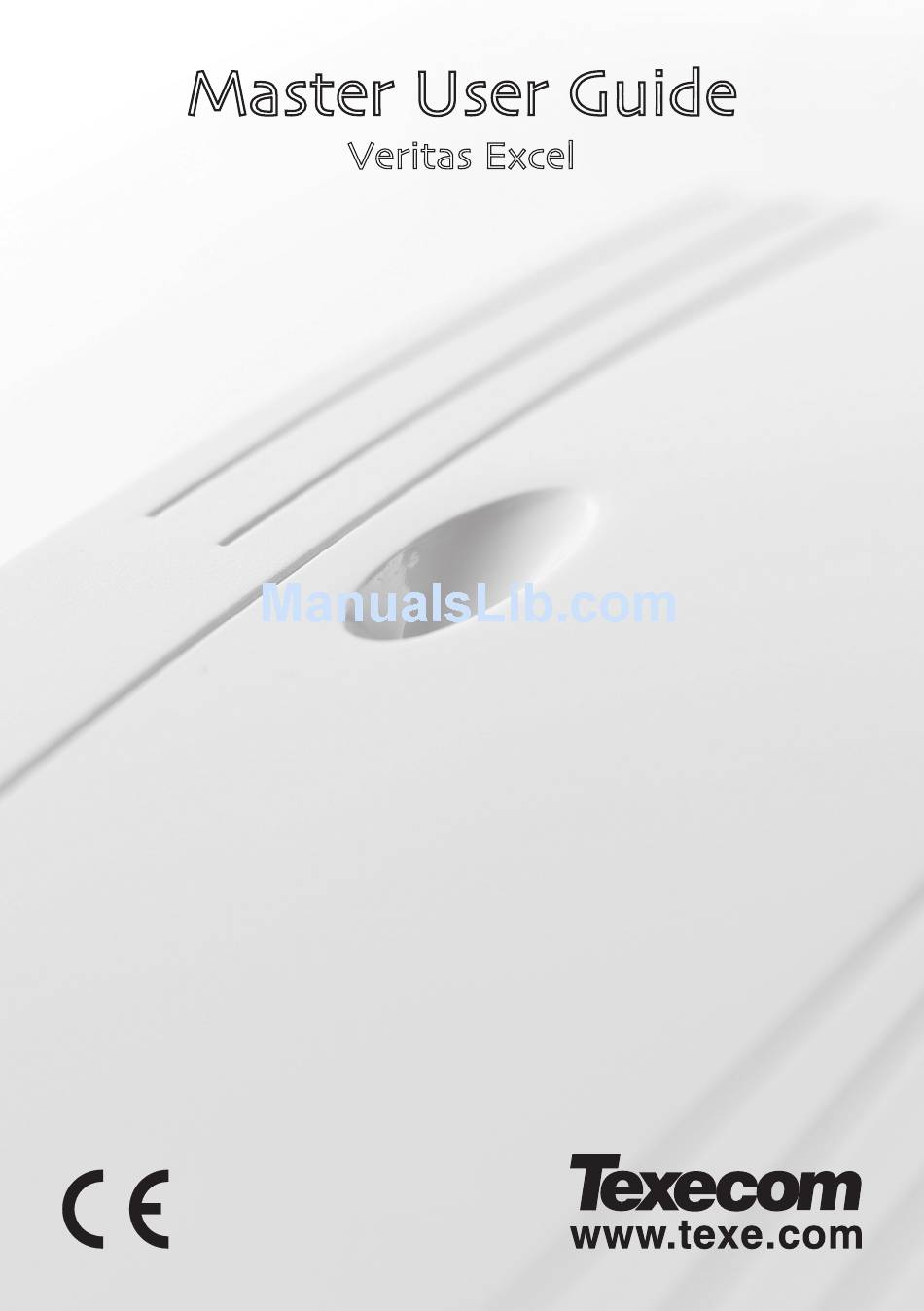

- Page 1 Master User Guide Veritas Excel Issue 2...
-
Page 2: Table Of Contents
Contents Veritas Excel Master User Guide Contents 1. Overview ....................3 Zones ..........................3 Omitting Zones......................3 Part Set Suites 1 - 4.......................3 If Your System is Due for Maintenance .................3 To Activate Keypad Personal Attack ................3 2. Using the Alarm System ................4 Introduction ........................4... -
Page 3: Overview
Veritas Excel Master User Guide Overview 1. Overview Zones A ‘zone’ is part of the premises and may consist of one or more detection devices protecting rooms and access points (e.g. front door, kitchen, downstairs windows, upstairs bedrooms, etc.). When the alarm system is ‘full set’, all of the zones on the system are monitored. -
Page 4: Using The Alarm System
Using the Alarm System Veritas Excel Master User Guide 2. Using the Alarm System Introduction The display will normally show the date & time (LCD keypad) or the Unset light: Zones %-$.)*/0%%12+$3 Unset 1 2 3 4 5 6 45%6/.%%78944:47 Tamper ! "... -
Page 5: Operating The Alarm System
Veritas Excel Master User Guide Operating the Alarm System 3. Operating the Alarm System To FULL Set the Alarm Ensure that the premises are secure (all doors and windows closed etc). Enter your 4-digit Access code and press , the exit tone... -
Page 6: To Unset The Alarm
Operating the Alarm System Veritas Excel Master User Guide To UNSET the Alarm Enter via a designated entry route, the slow entry tone will start and the display will look like this: Zones D3$/0$%1#*$. Unset 1 2 3 4 5 6 7 8 G"A.%D/00+"<$... -
Page 7: To Cancel An Alarm
Veritas Excel Master User Guide Operating the Alarm System To CANCEL an Alarm The display will look like this: Zones D3$/0$%1#*$. Unset 1 2 3 4 5 6 7 8 G"A.%D/00+"<$ Tamper Enter your 4-digit Access code , the internal and external #### sounders will stop but the external strobe will continue to flash. -
Page 8: To Reset After An Alarm Using The Anti-Code
Operating the Alarm System Veritas Excel Master User Guide To RESET After an Alarm Using the Anti-Code If the system has been programmed to be reset using an Anti-Code after an alarm activation, you will still be able to silence the alarm by entering your 4-digit Access code. -
Page 9: The Chime Facility
Veritas Excel Master User Guide Operating the Alarm System The CHIME Facility It is possible to set one or more zones to chime when the system is unset. When a zone is enabled for Chime and Chime is turned on, the control panel will sound a tone whenever the zone is opened. -
Page 10: Programming The Alarm System
Programming the Alarm System Veritas Excel Master User Guide 4. Programming the Alarm System Introduction The system has several facilities that are accessed via User Programming. User Programming can only be accessed when the alarm is unset. Enter your 4-digit Access code... -
Page 11: To Test The Sounders And Strobe
Veritas Excel Master User Guide Programming the Alarm System To Test the Sounders and Strobe The control panel has a Sounder Test facility for checking the operation of the internal and external sounders and strobe. Enter your 4-digit Access code and press . -
Page 12: To Walk Test The System
Programming the Alarm System Veritas Excel Master User Guide To Walk Test the System The control panel has a Walk Test facility for checking the operation of detection devices. Enter your 4-digit Access code and press . Wait until the... -
Page 13: Programming The Date
Veritas Excel Master User Guide Programming the Alarm System Programming the Date Enter the Master Access code and press . Wait until the #### display looks like this: Zones D."S./?%6"<$%%%V Unset 1 2 3 4 5 6 7 8 1#*$.%P>*)"#... -
Page 14: To View The 7-Event Alarm Log
Programming the Alarm System Veritas Excel Master User Guide To View the 7-Event Alarm Log The control panel has a 7-Event Alarm Log, to view this log: Enter your 4-digit Access code and press . Wait until the #### display looks like this: Zones D."S./?%6"<$%%%V... -
Page 15: Programming Access Codes
Veritas Excel Master User Guide Programming the Alarm System Programming Access Codes The control panel allows up to eight Users to operate the alarm system, each user is assigned an ‘Access code’, ‘Access Level’ and ‘User Number’. The figure below shows an example of Users assigned to a typical alarm system: 4...7... -
Page 16: Personal Attack
Programming the Alarm System Veritas Excel Master User Guide There are eight possible User Access Levels: User A User may set, unset, silence an alarm and reset the system. In addition a User can test the system outputs, perform a walk test and view the Event Log. A User cannot change Access codes (other than their own) or Access Levels. - Page 17 Veritas Excel Master User Guide Programming the Alarm System Null The Null level is the only level which can be changed both by a Master User and by a Boss Engineer. The Null level has two functions: If a User is no longer required, its Access Level should be changed to Null. This will erase the associated Access code.
-
Page 18: Assigning New Access Codes
Programming the Alarm System Veritas Excel Master User Guide Assigning New Access Codes Each User can be assigned a different 4-digit Access code. Enter the Master Access code and press . Wait until the #### display looks like this: Zones D."S./?%6"<$%%%V... -
Page 19: Changing Access Levels
Veritas Excel Master User Guide Programming the Alarm System Changing Access Levels Each Access code can be programmed for different Access levels (1 – 8) Enter the Master Access code and press . Wait until the #### display looks like this: Zones D."S./?%6"<$%%%V... -
Page 20: Options That Require An Lcd Keypad
Options that require an LCD Keypad Veritas Excel Master User Guide 5. Options that Require an LCD Keypad Viewing the Extended Event Log The control panel also has a 250-Event Extended Log that records times and dates. Enter the Master Access code and press . -
Page 21: Event Log Codes
Veritas Excel Master User Guide Options that require an LCD Keypad Event Log Codes Event Meaning Code: ???????? 4-digit Access code entered for user ???????? Full Set The alarm system has been full set Part Set #? The alarm system has been part set using suite #? -
Page 22: Programming User Name Text
Options that require an LCD Keypad Veritas Excel Master User Guide Programming User Name Text Each User can be assigned up to eight characters of Name Text. Enter the Master Access code and press . Wait until the #### display shows ‘D."S./?%6"<$d%1#*$.%P>*)"#’. -
Page 23: Installation Details
Veritas Excel Master User Guide Installation Details 6. Installation Details Option to Option to Default Default User User Change Change Access Access Access Access Name Access Access Code Code Level Level Code Level 4 3 2 1! Master .& 8&... - Page 24 Veritas Excel Master User Guide Installation Details Installation Engineer: Installation Company: Address: Telephone: Installation Date: Zone Allocation Setting Modes Zone Area Protected Omit Full Part 1 Part 2 Part 3 Part 4 Tick Zones Included in Full & Part Sets...
