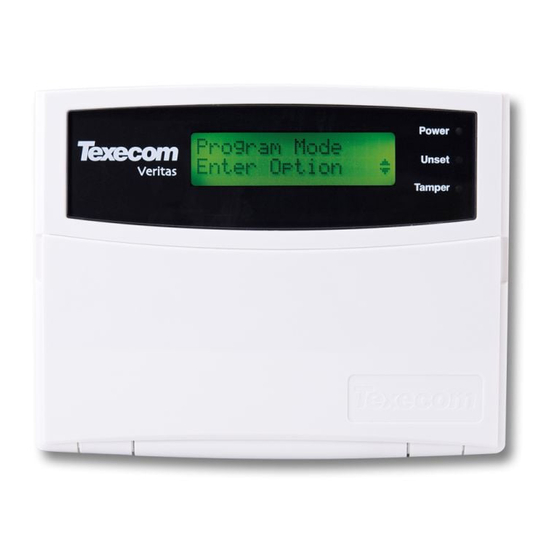

Texecom veritas excel User Manual
Security control panel
Hide thumbs
Also See for veritas excel:
- User manual (24 pages) ,
- Installation manual (17 pages) ,
- Installation manual (40 pages)
Related Manuals for Texecom veritas excel
Summary of Contents for Texecom veritas excel
- Page 1 USER GUIDE USER GUIDE USER GUIDE USER GUIDE THANK YOU FOR VOTING TEXECOM USER GUIDE Security Control Panel...
-
Page 2: Table Of Contents
Contents Veritas Excel User Guide Contents Overview....................3 Zones ....................... 3 Omitting Zones ....................3 Part Set Suites 1 - 4 ..................3 If Your System is Due for Maintenance ............3 To Activate Keypad Personal Attack ..............3 Using Your Alarm ................4 Introduction...................... -
Page 3: Overview
Veritas Excel User Guide Overview Overview Zones A ‘zone’ is part of the premises and may consist of one or more detection devices protecting rooms and access points (e.g. front door, kitchen, downstairs windows, upstairs bedrooms, etc.). When the alarm system is ‘full set’, all of the zones on the system are monitored. -
Page 4: Using Your Alarm
Using Your Alarm Veritas Excel User Guide Using Your Alarm Introduction The display will normally show the date & time: %-$.)*/0%%12+$3% 45%67.%%58944:44% ! " The top line of the display can be programmed by your Installer. When a valid 4-digit Access code is entered... -
Page 5: To Full Set The Alarm
Veritas Excel User Guide Using Your Alarm To FULL Set the Alarm Ensure that the premises are secure (all doors and windows closed etc). Enter your 4-digit Access code and press , the exit #### #### #### #### tone will sound and the display will look something like this: >?33%@$*%@?)*$%... -
Page 6: To Unset The Alarm
Using Your Alarm Veritas Excel User Guide To UNSET the Alarm Enter via a designated entry route, the slow entry tone will start and the display will read as follows: B3$/0$%1#*$.% F"?.%B/00+"<$% Enter your 4-digit Access code , the entry tone will stop... -
Page 7: To Cancel An Alarm
Veritas Excel User Guide Using Your Alarm To CANCEL an Alarm The display will look something like this: B3$/0$%1#*$.% F"?.%B/00+"<$% Enter your 4-digit Access code , the internal and external #### #### #### #### sounders will stop but the external strobe will continue to flash. -
Page 8: To Reset After An Alarm Using The Anti-Code
Using Your Alarm Veritas Excel User Guide To RESET After an Alarm Using the Anti-Code If the system has been programmed to be reset using an Anti-Code after an alarm activation, you will still be able to silence the alarm by entering your 4-digit Access code. -
Page 9: The Chime Facility
Veritas Excel User Guide Using Your Alarm The CHIME Facility It is possible to set one or more zones to chime when the system is unset. When a zone is enabled for Chime and Chime is turned on, the control panel will sound a tone whenever the zone is opened. -
Page 10: User Programming
User Programming Veritas Excel User Guide User Programming Introduction The system has several facilities that are accessed via User Programming. User Programming can only be accessed when the alarm is unset. Enter your 4-digit Access code and press , the... -
Page 11: To Test The Sounders And Strobe
Veritas Excel User Guide User Programming To Test the Sounders and Strobe The control panel has a Sounder Test facility for checking the operation of the internal and external sounders and strobe. Enter your 4-digit Access code and press . Wait... -
Page 12: To Walk Test The System
User Programming Veritas Excel User Guide To Walk Test the System The control panel has a Walk Test facility for checking the operation of detection devices. Enter your 4-digit Access code and press . Wait #### #### #### #### until the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. -
Page 13: To View The 7-Event Alarm Log
Veritas Excel User Guide User Programming To View the 7-Event Alarm Log The control panel has a 7-Event Alarm Log, to view this log: Enter your 4-digit Access code and press . Wait #### #### #### #### until the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. -
Page 14: Master User Programming
Master User Programming Veritas Excel User Guide Master User Programming Programming the Date Enter a Master Access code and press . Wait until #### #### #### #### the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. Enter (or use the key to search and then press &1... -
Page 15: To View The Event Log
Veritas Excel User Guide Master User Programming To View the Event Log The control panel has a 7-Event Alarm Log and a 250-Event Extended Log, to view either log: Enter a Master Access code and press . Wait until ####... -
Page 16: Event Log Codes
Master User Programming Veritas Excel User Guide Event Log Codes Event Meaning Code: ???????? 4-digit Access code entered for user ???????? Full Set The alarm system has been full set Part Set #? The alarm system has been part set using suite #? -
Page 17: Programming Access Codes
Veritas Excel User Guide Master User Programming Programming Access Codes The control panel allows up to eight users to operate the alarm system, each user is assigned an ‘Access code’, ‘Access Level’ and ‘User Number’. The figure below shows an example of users assigned to a typical alarm system: 4...7... - Page 18 Master User Programming Veritas Excel User Guide There are eight possible User Access Levels: User A User may set, unset, silence an alarm and reset the system. In addition a User can test the system outputs, perform a walk test and view the event log. A User cannot change Access codes (other than their own) or Access Levels.
- Page 19 Veritas Excel User Guide Master User Programming Null The Null level is the only level which can be changed both by a Master User and by a Boss Engineer. The Null level has two functions: If a User is no longer required, its Access Level should be changed to Null.
-
Page 20: Assigning New Access Codes
Master User Programming Veritas Excel User Guide Assigning New Access Codes Each User can be assigned a different 4-digit Access code. Enter the Master Access code and press . Wait until #### #### #### #### the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. Press... -
Page 21: Changing Access Levels
Veritas Excel User Guide Master User Programming Changing Access Levels Each Access code can be programmed for different Access levels (1 – 8) Enter the Master Access code and press . Wait until #### #### #### #### the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. -
Page 22: Programming User Name Text
Master User Programming Veritas Excel User Guide Programming User Name Text Each User can be assigned up to eight characters of Name Text. Enter the Master Access code and press . Wait until #### #### #### #### the display shows ‘B."R./=%U"<$W%1#*$.%O7*)"#’. -
Page 23: Quick Reference Guide
Veritas Excel User Guide Quick Reference Guide Quick Reference Guide Full Set Enter Your Code #### Press Full Part Set Enter Your Code #### % , & , ! Select Part Set Suite 1, 2, 3 or 4 Press Part... -
Page 24: Installation Details
Installation Details Installation Engineer: Installation Company: Address: Telephone: Installation Date: Zone Allocation Area Part Set Part Set Part Set Part Set Zone Full Set Protected Tick Zones Included in Full & Part Sets Service Record System Due for System Serviced Servicing Engineer Maintenance Anti-Code Phone Number...
Need help?
Do you have a question about the veritas excel and is the answer not in the manual?
Questions and answers
Connection details
The Texecom Veritas Excel connects keypads to the control panel using 12V (AUX+), 0V (AUX-), and T, T, R, R terminals. Up to six keypads can be connected in parallel (star), series (daisy-chain), or a combination. For long cable runs or series connections, ensure voltage at the keypad is no more than 2V less than at the control panel. Use spare cores in 6-core or 8-core cables to double-up or treble-up on 0V to support longer runs. Each keypad must have a unique address set via DIP switches.
This answer is automatically generated

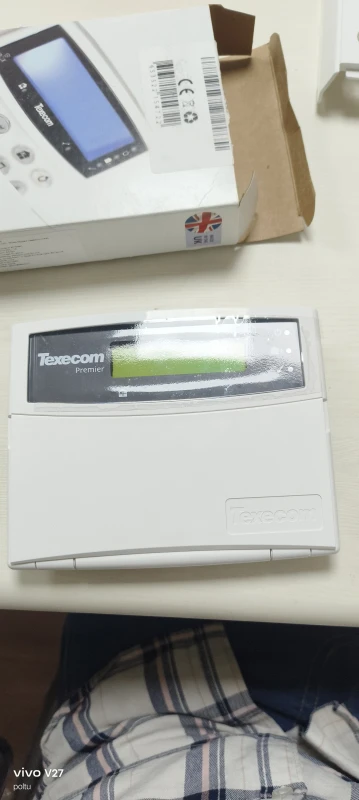

I have 2 control panels. I changed the code on one and the other says system busy and will not change. It does not show this event code so don't know how to change it
