Texecom PrestigeCompact IR Installation Instructions

1
P a s s i v e I n f r a r e d D e t e c t o r
Q u a d E l e m e n t D e t e c t o r
I N S TA L L AT I O N I N S T R U C T I O N S
QUALITY ASSURANCE
4
MADE IN
ENGLAND
C e r t i f i c a t e N u m b e r : F M 3 5 2 8 5
� Prestige
WARRANTY
Compact IR
only
10 year replacement warranty.
OC 03

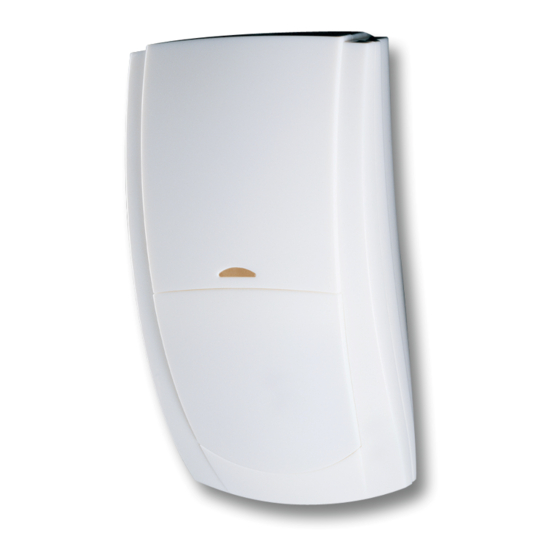

The Prestige Compact IR/QD is designed to detect the movement of an
intruder and activate an alarm control panel. As the Prestige Compact IR/QD is
1
not a complete alarm system, but only a part thereof, Texecom cannot accept
responsibility or liability for any damages whatsoever based on a claim that the
Prestige Compact IR/QD failed to function correctly.
All specifications are measured at 20˚C (68˚F). Due to our policy of continuous
improvement Texecom reserves the right to change specification without prior
notice.
Document Ref: PCIR/EU/1.0-3
© 2003-2009 Texecom Ltd
The Prestige Compact IR/QD is protected by UK & International Registered Design. Registered Design Number: 3008617
5 COVERAGE AND PICK-UP 6
15m 90˚
50'
✓
!
!
15m
50'
PHYSICAL 2
90mm
(3.6")
2.5mm (0.1") ABS
63mm
40mm
(2.5")
(1.6")
PULSE COUNT
2
0.3 - 3.0m/s
1 - 10ft/s
3
ANGLING THE DETECTOR 7
✓
ENVIRONMENTAL 3
Alarm Standard:
Detector Standard:
�
EMC:
125g (4.5oz) approx.
RF Immunity:
-35°C (-31°F) to +60°C (+140°F)
Electrostatic
Discharge:
Fast Transient
Immunity:
High Energy
Transient Immunity:
Conducted RF
Susceptibility:
Conducted &
Radiated Emissions:
-35°C (+31°F) to +55°C (+131°F)
EOL RESISTOR HEADERS
(See Section 14)
TAMPER 0V ALARM
JP3
JP4
MOUNTING HEIGHT AND
8
SETTINGS
STANDARDS & APPROVALS
EN 50131 Grade 2 Environmental Class II.
EN 50131-2-2 Grade 2 Environmental Class II.
Independently certified to BS EN 50130-4 : 1996.
A1 : 1998 A2 : 2003.
No false alarms from 80GHz to 1GHz at 10V/m.
1GHz to 2GHz at 10V/m. BS EN 61000-4-3 : 1997.
No false alarms up to 8kV.
BS EN 61000-4-2 : 1995.
No false alarms up to ±4kV.
BS EN 61000-4-4 : 1995.
No false alarms up to ±1kV.
BS EN 61000-4-5 : 1995.
No false alarms at 10Vrms.
BS EN 61000-4-6 : 1996.
EN 55022 : 2006 Class B.
EN 61000-6-3 : 2007
EOL
Resistance
Alarm
Resistance
LED ON
DO NOT TOUCH
LED OFF
COVERAGE AT 2m
✓
