Texecom Ricochet Impaq Contact-W Instruction Manual

Instruction Manual
Premier Elite Impaq Contact-W

INTRODUCTION

• For wireless connectivity, detailed programming and system
set-up instructions please refer to the compatible RICOCHET™
technology enabled Premier Elite wireless expander
instructions.
• Featuring RICOCHET™ wireless technology the Impaq
Contact-W is designed for professional security installations.
• When using the Impaq Contact-W on an Entry/Exit route, or a
24HR door, or where chime is required, the device attributes
should be left at default "Always Awake".
• Please see the Premier Elite 8XP-W/32XP-W Installation Manual
for details of how to change the device attributes.

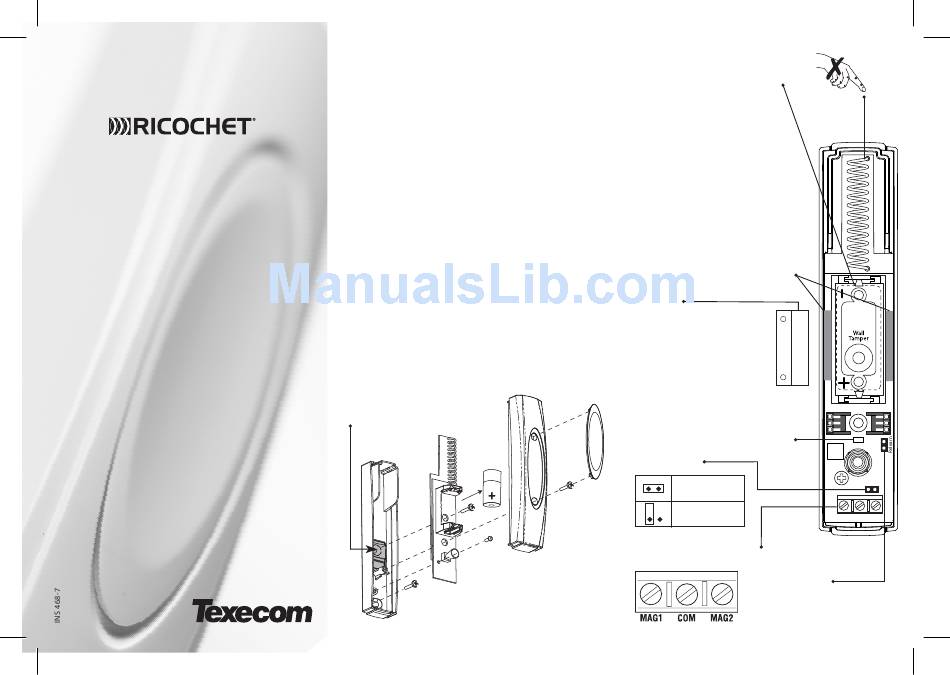

ASSEMBLY

For rear tamper - fix both the detector AND the rear tamper insert
to the mounting surface. Activation of rear tamper will damage
product.
Rear Tamper Insert
Battery
Only replace with 3V Lithium CR123A.
Battery Safety
•
Do not throw into a fire
• Do not heat
• Do not charge
• Do not short circuit
• Do not disassemble
• Replace only with same or equivalent
type
• Always observe local regulations when
disposing of a battery
• Detector will transmit low battery warning
when battery needs replacing
Reed
Switch
Magnet
Non-Ferrous Mounting Material
• Maximum Break = 30mm
• Minimum Make = 15mm
Ferrous Mounting Material
• Maximum Break = 15mm
• Minimum Make = 5mm
Note: Values depend on
mounting material. See Fig.1
LED
Reed Disable
Disabled
Enabled
For wiring external
wired contacts/switches
Relearn
Place jumper on Relearn
pin header and insert bat-
tery to learn device.
Reed
Disable
MAG1 COM MAG2
