4. PSE Detection, Classification, Power-Up, and Power Removal

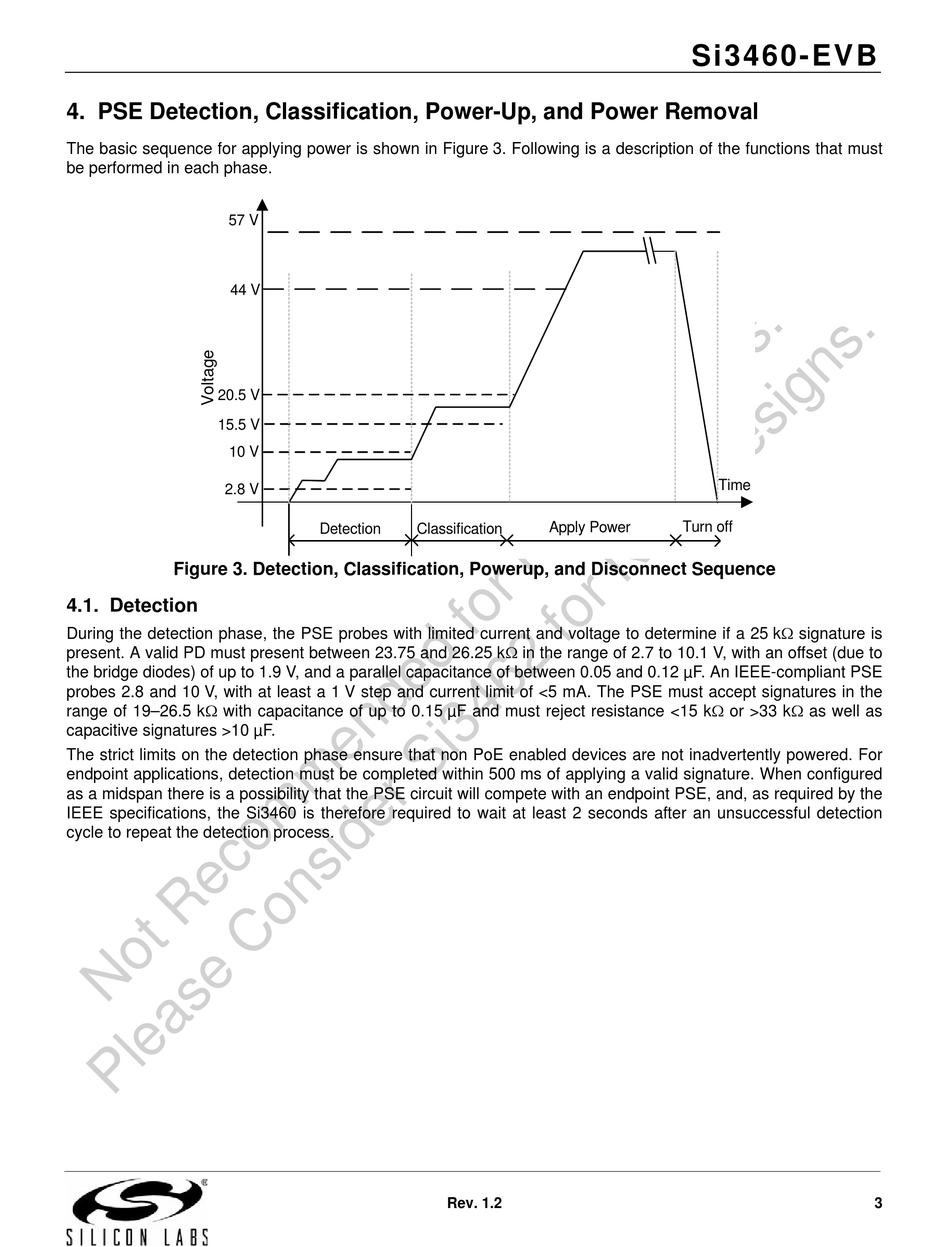

The basic sequence for applying power is shown in Figure 3. Following is a description of the functions that must
be performed in each phase.
57 V
44 V
20.5 V
15.5 V
10 V
2.8 V
Figure 3. Detection, Classification, Powerup, and Disconnect Sequence
4.1. Detection
During the detection phase, the PSE probes with limited current and voltage to determine if a 25 k signature is
present. A valid PD must present between 23.75 and 26.25 k in the range of 2.7 to 10.1 V, with an offset (due to
the bridge diodes) of up to 1.9 V, and a parallel capacitance of between 0.05 and 0.12 µF. An IEEE-compliant PSE
probes 2.8 and 10 V, with at least a 1 V step and current limit of <5 mA. The PSE must accept signatures in the
range of 19–26.5 k with capacitance of up to 0.15 µF and must reject resistance <15 k or >33 k as well as
capacitive signatures >10 µF.
The strict limits on the detection phase ensure that non PoE enabled devices are not inadvertently powered. For
endpoint applications, detection must be completed within 500 ms of applying a valid signature. When configured
as a midspan there is a possibility that the PSE circuit will compete with an endpoint PSE, and, as required by the
IEEE specifications, the Si3460 is therefore required to wait at least 2 seconds after an unsuccessful detection
cycle to repeat the detection process.
Detection Classification
Rev. 1.2
Si3460-EVB
Time
Turn off
Apply Power
3
