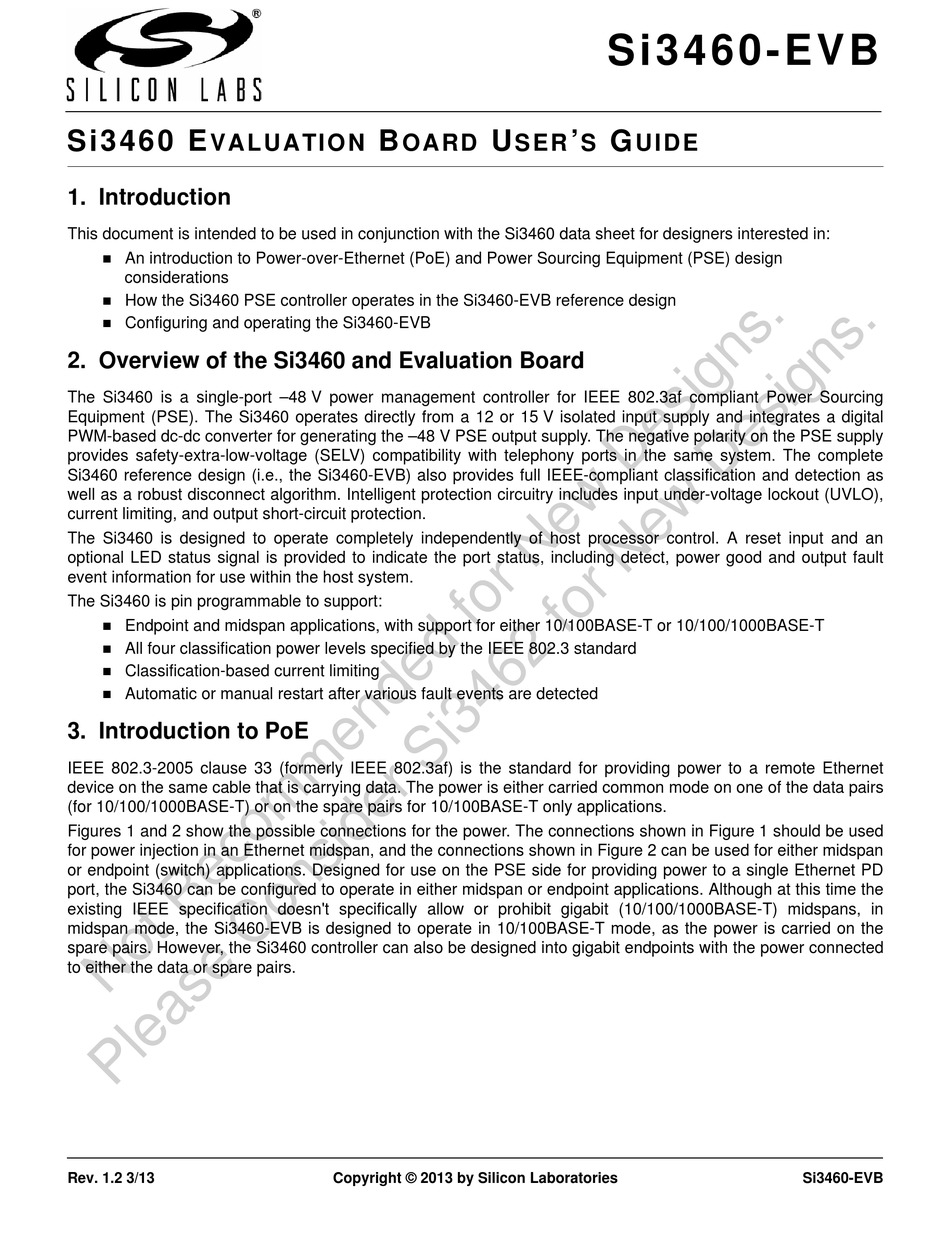

Si3460 E
VALUATION
1. Introduction
This document is intended to be used in conjunction with the Si3460 data sheet for designers interested in:

An introduction to Power-over-Ethernet (PoE) and Power Sourcing Equipment (PSE) design
considerations

How the Si3460 PSE controller operates in the Si3460-EVB reference design

Configuring and operating the Si3460-EVB
2. Overview of the Si3460 and Evaluation Board
The Si3460 is a single-port –48 V power management controller for IEEE 802.3af compliant Power Sourcing
Equipment (PSE). The Si3460 operates directly from a 12 or 15 V isolated input supply and integrates a digital
PWM-based dc-dc converter for generating the –48 V PSE output supply. The negative polarity on the PSE supply
provides safety-extra-low-voltage (SELV) compatibility with telephony ports in the same system. The complete
Si3460 reference design (i.e., the Si3460-EVB) also provides full IEEE-compliant classification and detection as
well as a robust disconnect algorithm. Intelligent protection circuitry includes input under-voltage lockout (UVLO),
current limiting, and output short-circuit protection.
The Si3460 is designed to operate completely independently of host processor control. A reset input and an
optional LED status signal is provided to indicate the port status, including detect, power good and output fault
event information for use within the host system.
The Si3460 is pin programmable to support:

Endpoint and midspan applications, with support for either 10/100BASE-T or 10/100/1000BASE-T

All four classification power levels specified by the IEEE 802.3 standard

Classification-based current limiting

Automatic or manual restart after various fault events are detected
3. Introduction to PoE
IEEE 802.3-2005 clause 33 (formerly IEEE 802.3af) is the standard for providing power to a remote Ethernet
device on the same cable that is carrying data. The power is either carried common mode on one of the data pairs
(for 10/100/1000BASE-T) or on the spare pairs for 10/100BASE-T only applications.
Figures 1 and 2 show the possible connections for the power. The connections shown in Figure 1 should be used
for power injection in an Ethernet midspan, and the connections shown in Figure 2 can be used for either midspan
or endpoint (switch) applications. Designed for use on the PSE side for providing power to a single Ethernet PD
port, the Si3460 can be configured to operate in either midspan or endpoint applications. Although at this time the
existing IEEE specification doesn't specifically allow or prohibit gigabit (10/100/1000BASE-T) midspans, in
midspan mode, the Si3460-EVB is designed to operate in 10/100BASE-T mode, as the power is carried on the
spare pairs. However, the Si3460 controller can also be designed into gigabit endpoints with the power connected
to either the data or spare pairs.
Rev. 1.2 3/13
B
U
OARD
Copyright © 2013 by Silicon Laboratories
Si3460- EVB
'
G
SER
S
U I D E
Si3460-EVB

Advertisement

loading
Need help?

Need help?

Do you have a question about the Si3460 and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Laboratories Si3460

  • Page 1 The Si3460 is a single-port –48 V power management controller for IEEE 802.3af compliant Power Sourcing Equipment (PSE). The Si3460 operates directly from a 12 or 15 V isolated input supply and integrates a digital PWM-based dc-dc converter for generating the –48 V PSE output supply. The negative polarity on the PSE supply provides safety-extra-low-voltage (SELV) compatibility with telephony ports in the same system.
  • Page 2: Power Sourcing Equipment (Pse)

    DC-DC Converter 48 V SIGNAL PAIR SPARE PAIR Figure 1. Power Carried Over the Spare Pair (10/100BASE-T Applications Only) Note: This is the connection scheme implemented on the Si3460-EVB reference design. POWER SOURCING POWERED DEVICE EQUIPMENT (PSE) (PD) SPARE PAIR ±...
  • Page 3 PSE circuit will compete with an endpoint PSE, and, as required by the IEEE specifications, the Si3460 is therefore required to wait at least 2 seconds after an unsuccessful detection cycle to repeat the detection process.
  • Page 4 4.4. Disconnect (Power Removal) The Si3460 supports a robust disconnect algorithm to avoid false disconnection. Removal of a PD can be sensed by determining that the dc current is less than 5 mA for between 300 and 400 ms. If the current then exceeds 10 mA for at least 60 ms, the power must not be removed, and the 300–400 ms timer restarts.
  • Page 5 5.1. Initialization and Operating Mode Configuration The Si3460 is initialized at power up, or whenever pin 8 (RST) is held low and then allowed to transition high. Upon reset (RST asserted), the voltage at the STATUS pin (as determined by resistors R28 and R30) is sensed to determine the operating mode of the Si3460.
  • Page 6 5.4. PWM In order to apply power to the load, M2 is turned on by driving the Si3460's GATE pin high. At the same time, the PWM circuitry is enabled by turning on the 250 kHz clock (250 kHz pin). The 250 kHz square wave is converted to a triangular shape by the filter R14 and C6.
  • Page 7 Si3460 will continue to provide power unless a disconnect or overload condition is sensed. The only other way to force the Si3460 to disconnect power is by doing a reset. The relevant waveform is shown in Figure 7 on page 12.
  • Page 8 "restart after a RESET condition," the LED will flash rapidly, and the detection process will automatically start again after 2.2 s and power will not be provided until an open circuit condition is detected. Once the Si3460-EVB detects an open circuit condition, the LED blinks at 3 times per second.
  • Page 9 6.3. SELV-Compliant Output Voltage Since the output of the Si3460-EVB reference design is designed to be less than 57 Vdc under all conditions, it is considered a SELV circuit. The Si3460-EVB is designed to produce a negative output voltage with respect to the input voltage. The reason...
  • Page 10 Si3460-EVB 6.7. R43 and R47 Resistors R43 and R47 together dissipate about 1 W of power during normal operation. Resistors R43, R47, and R44 (127 ) are chosen based on the IEEE minimum disconnect current specifications and to ensure good transient response for sudden load changes.
  • Page 11 Si3460-EVB 7. Output Voltage and Load Current Waveforms Figures 4 through 9 show output voltage and load current waveforms during startup and fault conditions. See the Si3460-EVB schematics in Figures 10 and 11. CH1: Output Voltage (V OUT+ Figure 4. Waveform Showing Detection Pulse into Open-Circuit...
  • Page 12 Si3460-EVB CH1: Output Voltage (V OUT+ Load = 25 k Figure 6. Waveforms Showing Successful Powerup CH1: Output Voltage (V OUT+ CH2: Load Current I OUT+ OUT+ Figure 7. Disconnect Waveforms with Time Delay of 350 ms Rev. 1.2...
  • Page 13 Si3460-EVB CH1: Output Voltage (V OUT+ CH2: Load Current I OUT+ OUT+ Figure 8. Waveform Showing Overcurrent Disconnect Delay Time of 60 ms CH1: Output Voltage (V OUT+ CH2: Load Current I OUT+ OUT+ Figure 9. Overcurrent during Startup with 400 mA Overload...
  • Page 14 8. Si3460-EVB Schematics and PCB Layout Full schematics and layout information are provided in the following sections. To ensure you are using the latest schematic and PCB layout database revisions, download the following zip file from the Silicon Laboratories Si3460 documentation page: http://www.silabs.com/products/power/poe/Pages/PowerSourcingEquipment.aspx...
  • Page 15 Si3460-EVB Rev. 1.2...
  • Page 16 Si3460-EVB 8.2. PCB Layout Figure 12. Top Side Component Placement Figure 13. Top Side Interconnect Rev. 1.2...
  • Page 17 Si3460-EVB Figure 14. Si3460 Ground Plane Figure 15. Si3460 Power Plane Rev. 1.2...
  • Page 18 Si3460-EVB Figure 16. Bottom Side Interconnect Rev. 1.2...
  • Page 19 Other component considerations:  Resistors R23, R25 and the programming header J6 are used for development purposes only. The Si3460 is not user programmable, and it is not recommended these components be included in actual layouts (short R23 and R25, and remove J6).
  • Page 20: Bill Of Materials

    Si3460-EVB 10. Bill of Materials Table 4. Si3460-EVB Bill of Materials Value Rating Dielectric Mfr Part # Footprint External PSE BOM (R-BOM) C1,C7, 0.1 µF 100 V C0603X7R101104K Venkel or equiv. C8, C21, 1 µF 10 V C0603X7R100106K Venkel or equiv.
  • Page 21 Si3460-EVB Table 4. Si3460-EVB Bill of Materials (Continued) Value Rating Dielectric Mfr Part # Footprint 2 k - see RC0603 CR0603-10W-2001F Venkel or equiv. table R22,R24 1 k RC0603 CR0603-10W-1001F Venkel or equiv. 332  RC0603 CR0603-10W-3320F Venkel or equiv.
  • Page 22 Table 4. Si3460-EVB Bill of Materials (Continued) Value Rating Dielectric Mfr Part # Footprint Si3460 PSE Controller, GbE Common Mode Chokes, Status LED, and Other Optional Components Si3460 PSE + PWM DC-DC Controller 3x3 mm 11-p Si3460 Silicon Labs 551-0207...
  • Page 23 11. Operating the Si3460-EVB The Si3460-EVB itself is very simple to use. Only a basic 12 or 15 V dc power source (i.e., a wall wart) with at least an 18 W rating is needed for connection to J4. The Si3460 will automatically power up, detect the operational modes (midspan/endpoint, classification power level, and restart mode), and then begin the detection process, during which the LED flashes at 3 times per second.
  • Page 24: Ordering Guide

    Si3460-EVB 12. Summary With its integrated dc-dc converter and fully compliant PSE interface, the Si3460-EVB provides a simple and comprehensive applications solution for PSE systems designers who require IEEE-compliant PSE functionality and safe operation with standard telephone interfaces and voltages.
  • Page 25: Document Change List

    Updated Figure 17, “Si3460-EVB,” on page 23. Layout" on page 14.  Revised document formatting throughout.  Updated Figure 10, “Si3460 and Power Circuit,” on page 14. Revision 0.2 to Revision 0.3  Updated Figure 11, “Detection and PWM Circuit,” on ...
  • Page 26: Contact Information

    Silicon Laboratories products are not designed, intended, or authorized for use in applications intend- ed to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where personal injury or death may occur.
