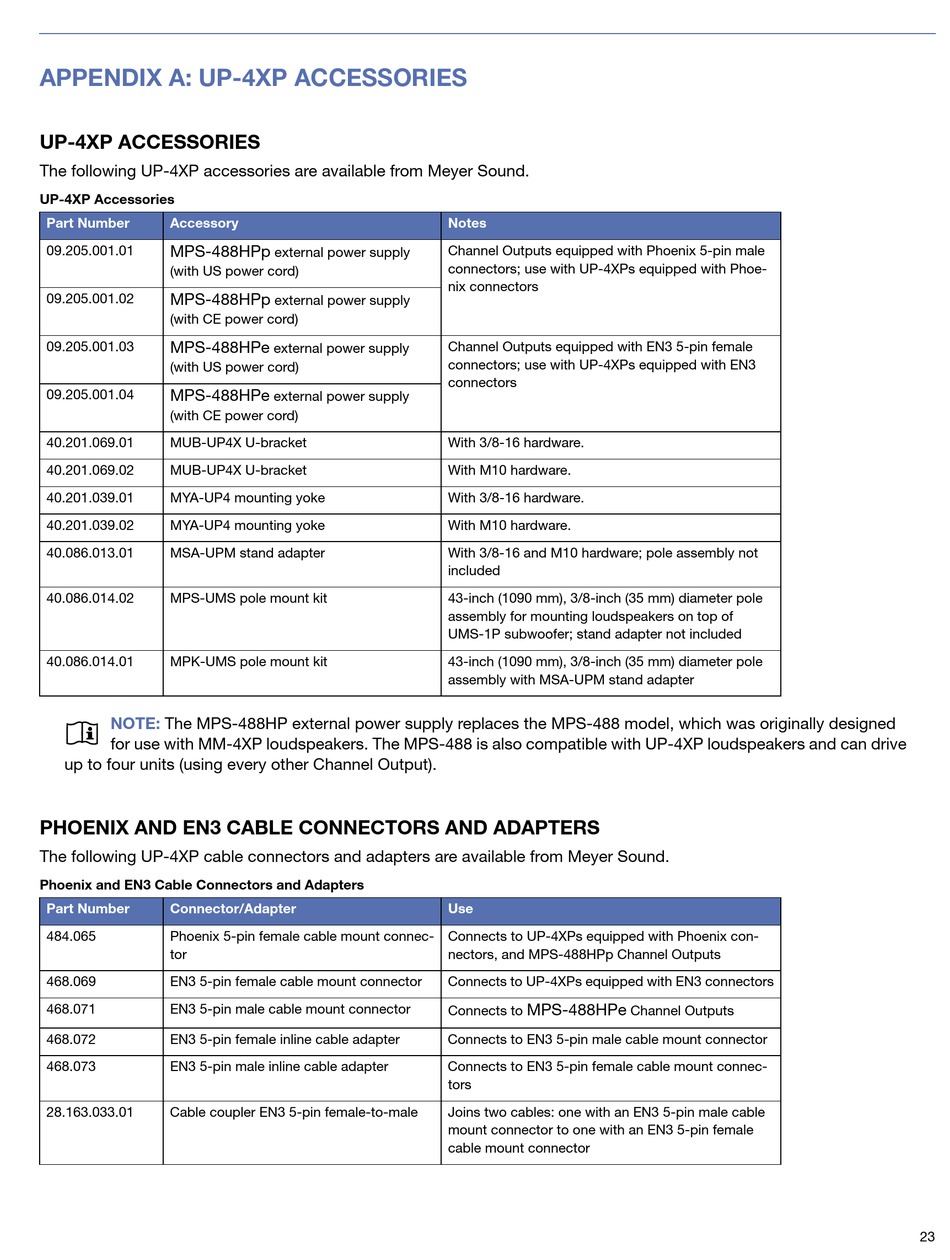

APPENDIX A: UP-4XP ACCESSORIES

UP-4XP ACCESSORIES
The following UP-4XP accessories are available from Meyer Sound.
UP-4XP Accessories
Part Number Accessory
09.205.001.01 MPS-488HPp
(with US power cord)
09.205.001.02 MPS-488HPp
(with CE power cord)
09.205.001.03 MPS-488HPe
(with US power cord)
09.205.001.04 MPS-488HPe
(with CE power cord)
40.201.069.01 MUB-UP4X U-bracket
40.201.069.02 MUB-UP4X U-bracket
40.201.039.01 MYA-UP4 mounting yoke
40.201.039.02 MYA-UP4 mounting yoke
40.086.013.01 MSA-UPM stand adapter
40.086.014.02 MPS-UMS pole mount kit
40.086.014.01 MPK-UMS pole mount kit
NOTE: The MPS-488HP external power supply replaces the MPS-488 model, which was originally designed
for use with MM-4XP loudspeakers. The MPS-488 is also compatible with UP-4XP loudspeakers and can drive
up to four units (using every other Channel Output).
PHOENIX AND EN3 CABLE CONNECTORS AND ADAPTERS
The following UP-4XP cable connectors and adapters are available from Meyer Sound.
Phoenix and EN3 Cable Connectors and Adapters
Part Number Connector/Adapter
484.065 Phoenix 5-pin female cable mount connec-
tor
468.069 EN3 5-pin female cable mount connector
468.071 EN3 5-pin male cable mount connector
468.072 EN3 5-pin female inline cable adapter
468.073 EN3 5-pin male inline cable adapter
28.163.033.01 Cable coupler EN3 5-pin female-to-male
Notes
Channel Outputs equipped with Phoenix 5-pin male
external power supply
connectors; use with UP-4XPs equipped with Phoe-
nix connectors
external power supply
Channel Outputs equipped with EN3 5-pin female
external power supply
connectors; use with UP-4XPs equipped with EN3
connectors
external power supply
With 3/8-16 hardware.
With M10 hardware.
With 3/8-16 hardware.
With M10 hardware.
With 3/8-16 and M10 hardware; pole assembly not
included
43-inch (1090 mm), 3/8-inch (35 mm) diameter pole
assembly for mounting loudspeakers on top of
UMS-1P subwoofer; stand adapter not included
43-inch (1090 mm), 3/8-inch (35 mm) diameter pole
assembly with MSA-UPM stand adapter
Use
Connects to UP-4XPs equipped with Phoenix con-
nectors, and MPS-488HPp Channel Outputs
Connects to UP-4XPs equipped with EN3 connectors
Connects to
Connects to EN3 5-pin male cable mount connector
Connects to EN3 5-pin female cable mount connec-
tors
Joins two cables: one with an EN3 5-pin male cable
mount connector to one with an EN3 5-pin female
cable mount connector
MPS-488HPe
Channel Outputs
