CHAPTER 4: QUICKFLY RIGGING

MYA-UP4 Mounting Yoke

TIP: Meyer Sound offers two kits for mounting
the UP-4XP on top of the UMS-1P subwoofer.
The MPS-UMS pole mount kit (PN 40.086.014.02)
includes a 43-inch (1090 mm), 3/8-inch (35 mm)
diameter pole assembly. The MPK-UMS pole mount
kit (PN 40.086.014.01) includes the same pole
assembly along with the MSA-UPM stand adapter.
20
MYA-UP4 MOUNTING YOKE

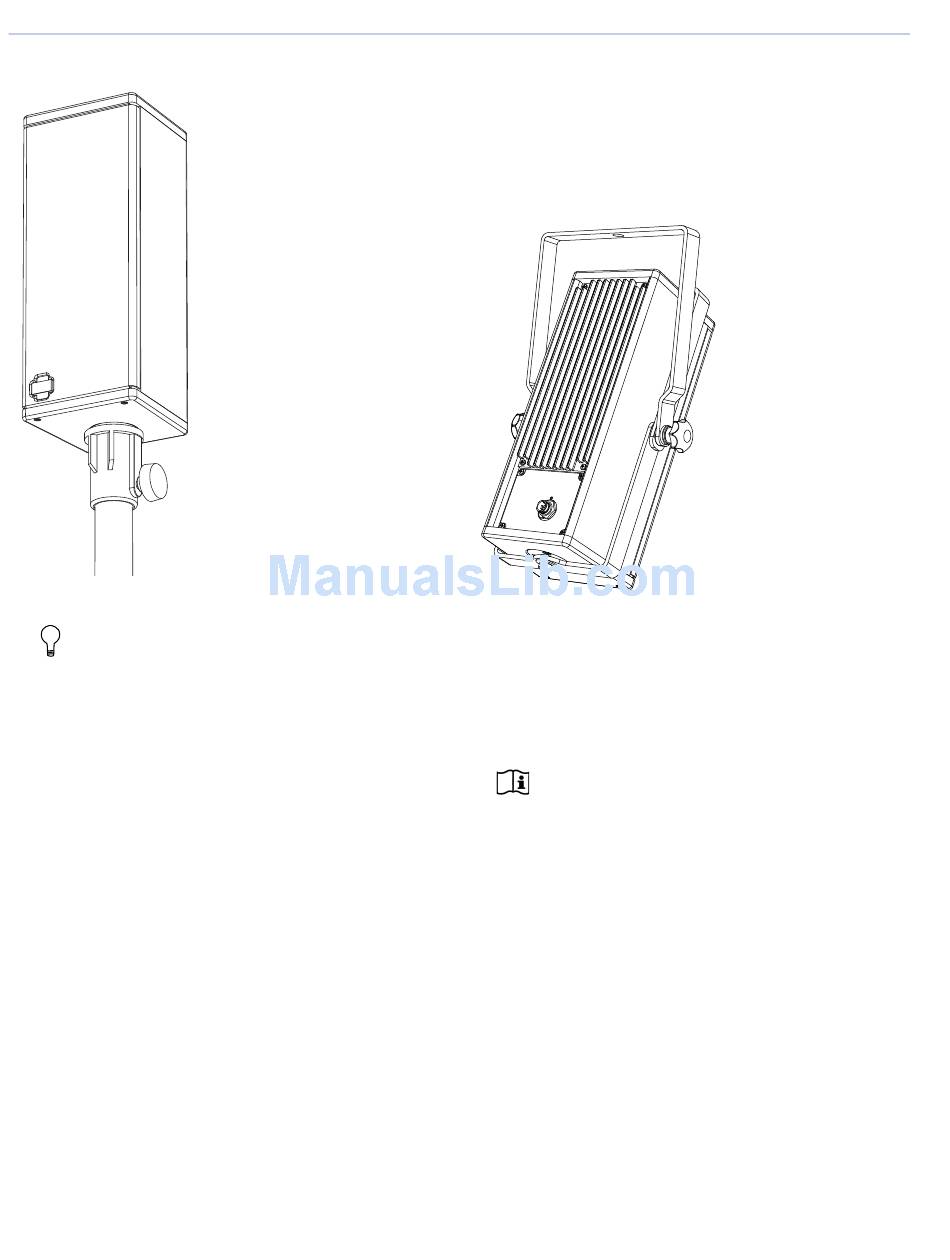

The MYA-UP4 mounting yoke suspends a single UP-4XP
loudspeaker and allows a wide range of horizontal and verti-
cal adjustment. The MYA-UP4 is available in two kits: one
with 3/8-16 hardware (PN 40.201.039.01), and one with M10
hardware (PN 40.201.039.02).
MYA-UP4 Mounting Yoke
To install the yoke, attach it to the loudspeaker's top and
bottom end plates with the included bolts and washers.
Tighten the bottom bolt first and then the top. A "C" or "G"
hanging clamp and steel safety cable (not included) are
required to suspend the MYA-UP4 mounting yoke.
NOTE: The top bar of MYA-UP4 mounting
yoke accommodates hanging clamps with
standard 1/2-inch or 12 mm bolts.
