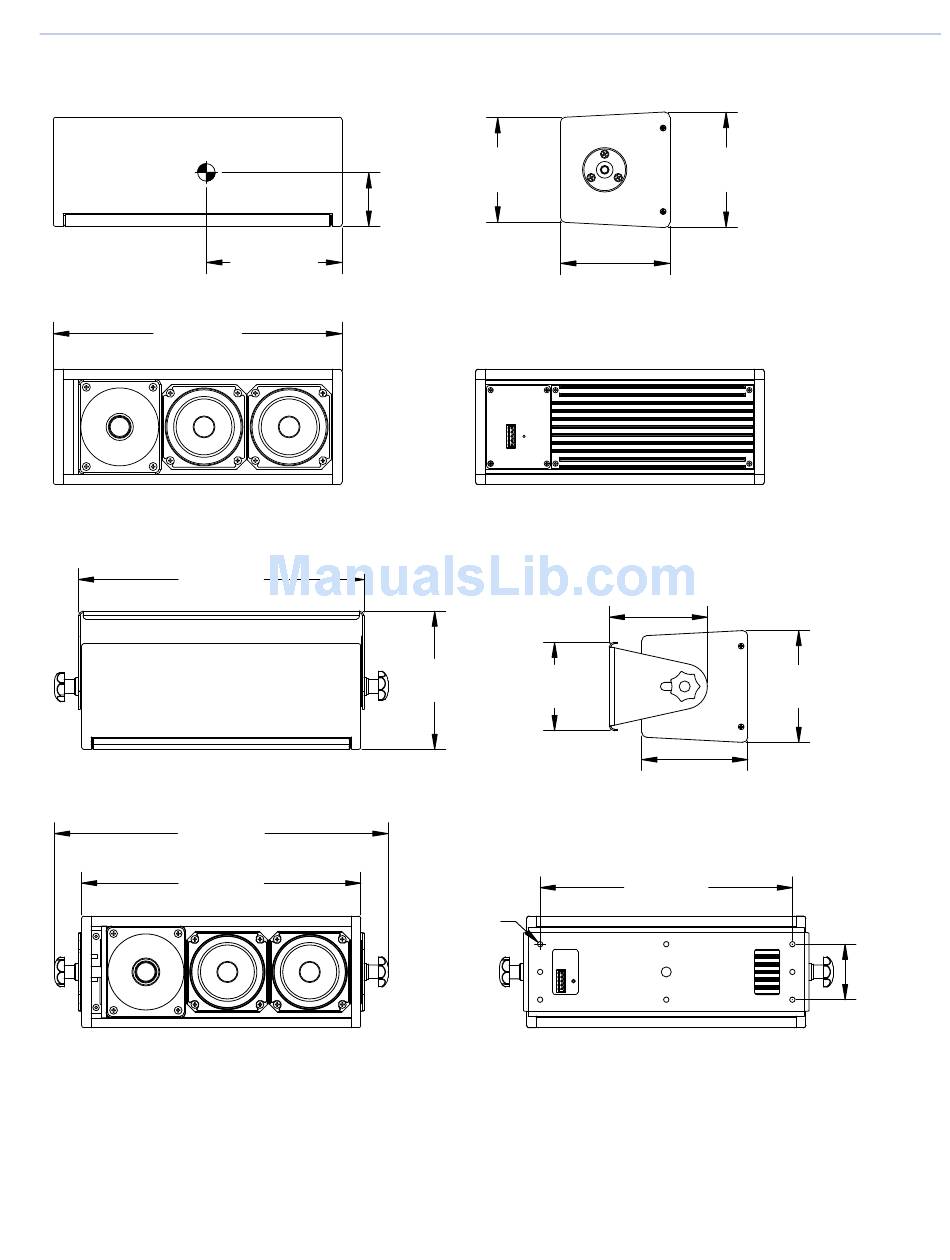

UP-4XP DIMENSIONS
13.84
[352 mm]
UP-4XP Dimensions
14.15
[359 mm]
16.52
[420 mm]
13.84
[352 mm]
UP-4XP with MUB-UP4 U-Bracket Dimensions
2.60
[66 mm]
6.50
[165 mm]
[174 mm]
5.04
[128 mm]
5.25
[133 mm]
6.86
4.38
[111 mm]
Ø0.27 (x8)
[Ø7 mm]
UP-4XP OPERATING INSTRUCTIONS
5.54
[141 mm]
4.86
[123 mm]
5.54
[141 mm]
5.25
[133 mm]
12.50
[317 mm]
2.75
[70 mm]
