APPENDIX B: PHOENIX AND EN3 CABLE ASSEMBLY

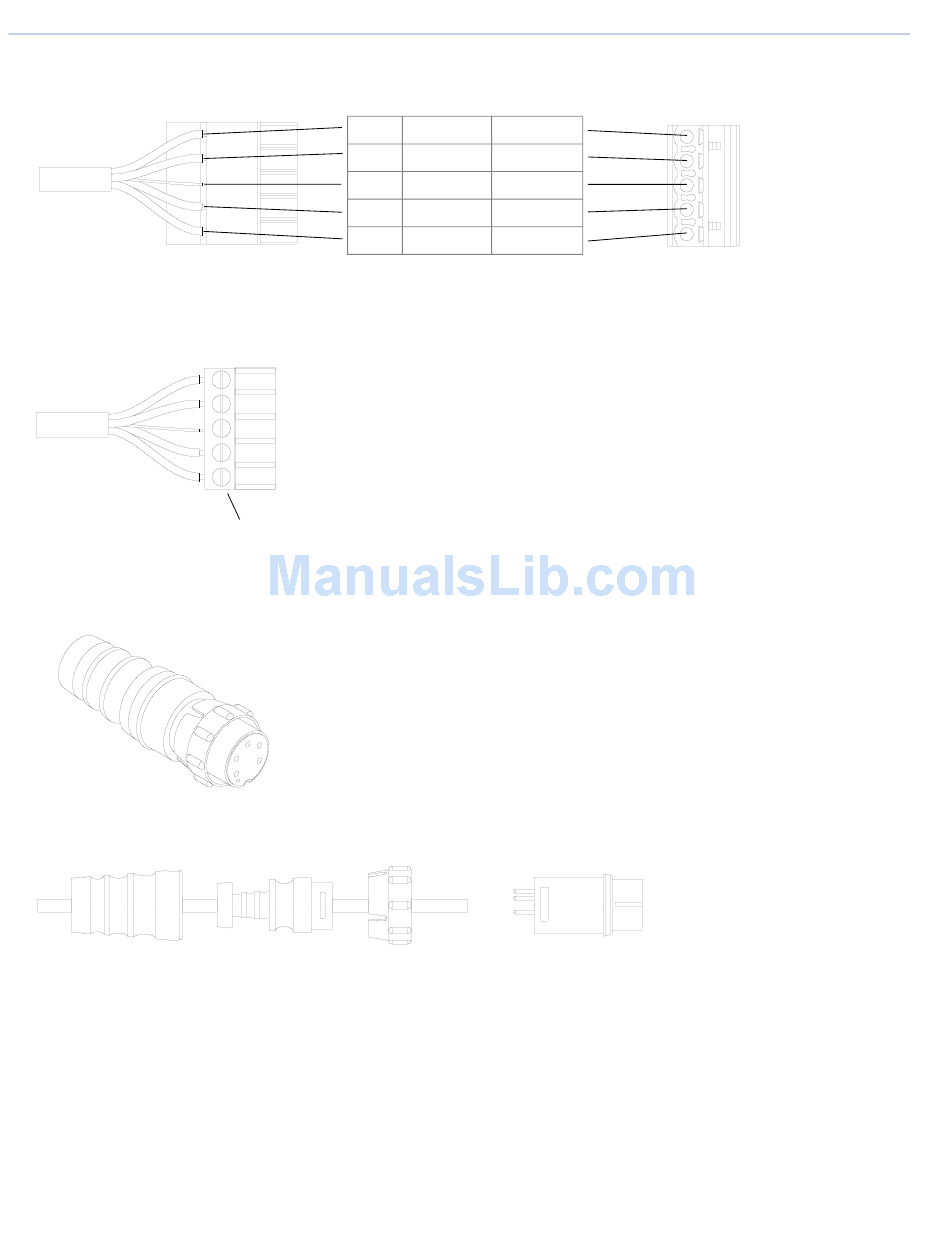

2. Insert the five exposed conductors into the five cable holes in the Phoenix connector using the following wiring scheme.
Side (cable attached)
Phoenix 5-Pin Female Cable Mount Connector
3. Secure the conductors by tightening the five screws in the Phoenix conductor.
4. Disassemble the EN3 5-pin female connector and feed one end of the cable through the boot, cable clamp housing, and
coupling ring.
Boot
Disassembled EN3 5-Pin Female Cable Mount Connector
5. If the EN3 end of the cable has not been stripped, strip the outer shielding 1 inch and then strip the black, red, blue, and
white wires .275 inch.
28
Pin #1
Pin #2
Pin #3
Pin #4
Pin #5
Tighten screws
Coupling ring
Cable clamp
housing
Black 48 V DC (–)
Red 48 V DC (+)
Shield drain Audio shield
Blue Audio (–)
White Audio (+)
Cord connector
Connector side up
