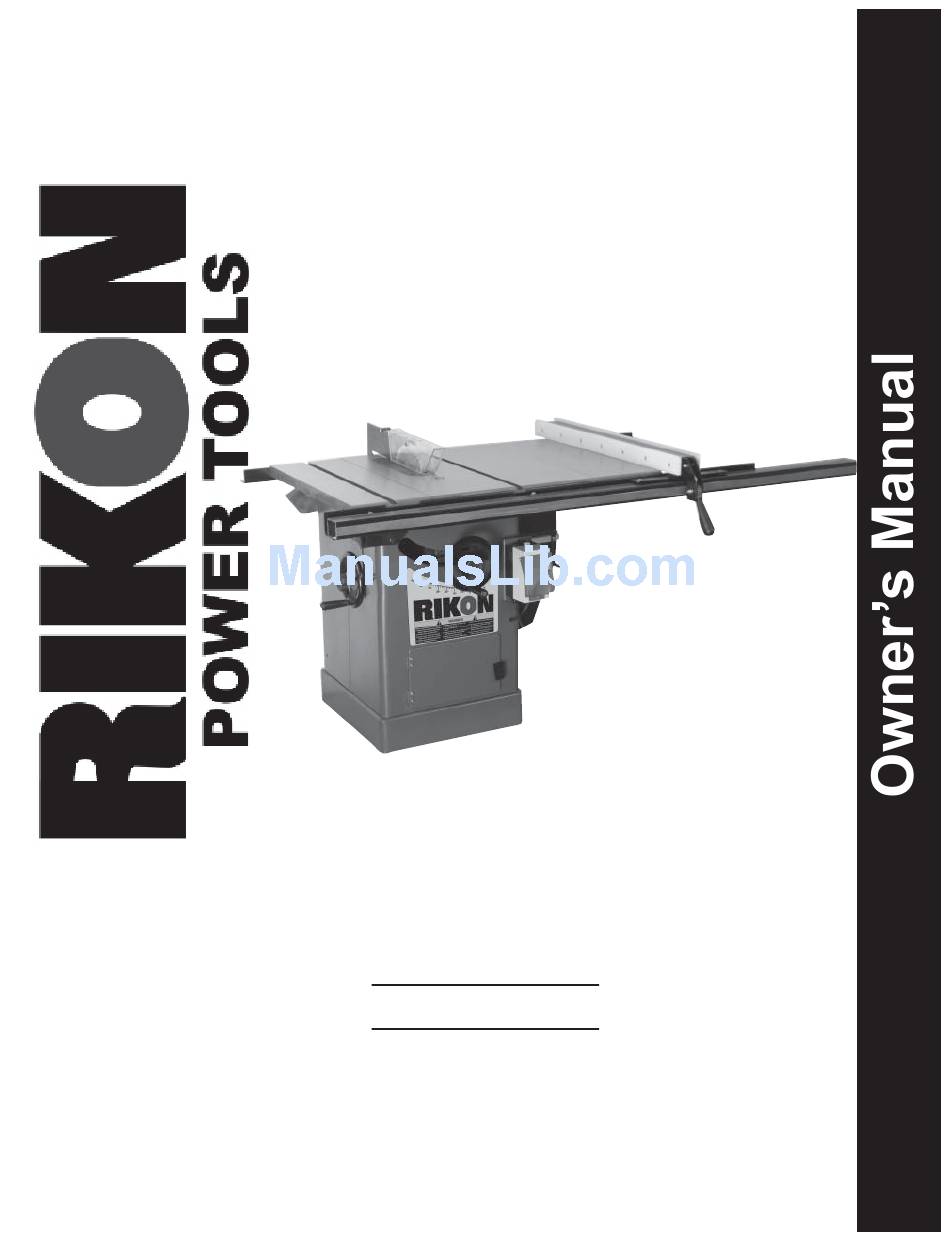

10" Cabinet Saw
Sliding Table Model: 10-110
Cast Table Wings Model: 10-050
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
For more information:
www.rikontools.com
info@rikontools.com
or
For Parts or Questions:
Part #10-110M2
techsupport@rikontools.com
877-884-5167
or
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 10-110
Summary of Contents for Rikon Power Tools 10-110
- Page 1 10” Cabinet Saw Sliding Table Model: 10-110 Cast Table Wings Model: 10-050 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: Part #10-110M2 techsupport@rikontools.com...
-
Page 2: Safety Warnings
Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following in- structions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modifi ed and/or used for any other application other than that for which it was designed. -
Page 3: Table Saw Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
Table of Contents Safety Warnings............................2 -3 Table Saw Safety Rules ..........................3 Specifi cations ............................4 Contents of Package ..........................5 Unpacking and Checking Contents ...........................5 Loose Parts ............................6 Getting To Know Your Table Saw ......................7 Assembly ..............................8 Installing the Right Table Wing...........................8 Installing the Optional Left Table Wing........................8 Installing the Optional Sliding Table .........................9 Installing Front Fence Rail ...........................9... -
Page 5: Contents Of Package
Content of Package Model 10-050 10” Table Saw is shipped complete in three boxes. 1. Unpacking and Checking Contents a. Separate all “loose parts” from packaging materials and check each item with “Table of Loose Parts” to make sure all items are accounted for, before discarding any packaging material. b. -
Page 6: Loose Parts
Loose Parts Continued TABLE OF LOOSE PARTS Item Part Name Rear Guide Rail Front Guide Rail Box #2 TABLE OF LOOSE PARTS Item Part Name Left Extension Wing Bag of loose parts Box #3... -
Page 7: Getting To Know Your Table Saw
Getting To Know Your Table Saw A. Right Extension Wing H. Tool Holder B. Left Extension Wing I. Motor Cover C. Blade Guard Assembly J. Blade Tilting Handwheel D. Switch K. Blade Raise/down Handwheel E. Fence Assembly F. Rear Rail G. -
Page 8: Assembly
Assembly Installing the Right Table Wing Hex. socket screw Spring washer 1. Mount the cast iron table wing using three M10x30 hex head bolts and three M10 fl at washers. Figure 1. With assistance hold the extension wing up to the table, and insert the bolts and washers. -
Page 9: Installing The Optional Sliding Table
Assembly Assembling the Optional Sliding Table Please refer to the Sliding Table Attachment manual located in the separate shipping carton for proper installation procedures. Installing Front Fence Rail 1. Identify the front rail (E), which is the larger “L” shaped bar with the countersunk mounting holes Figure 5 facing front. -
Page 10: Mounting The Fence Guide Bar
Assembly Rear Fence Rail Installation Continued NOTE: The rear fence rail can be mounted differently depending on the use of the cast table wing or the sliding table attachment. When using the table wing the rear fence rail should be Saw Table installed as described below. -
Page 11: Leveling Fence To The Saw Table
Assembly Leveling Fence to the Saw Table Should be equal of entire length of fence 4. View the fence from the left side of the saw (Figure 12). Look for the space between the table and the fence bottom to be equal along the entire length of the fence. -
Page 12: Squaring Fence To Table
Assembly Adjusting Fence Parallel to the Miter Slot 1. Place the fence next to the outside edge of the right miter slot and lock it. 2. The fence should be even with the miter slot from front to back. 3. If the fence is not even along the length of the miter slot, unlock the fence, remove it and turn upside down. -
Page 13: Blade Guard And Splitter Installation
Assembly Blade Guard and Splitter Installation 1. Remove table insert and raise the saw blade, then loosen the hex head cap screw (A, Fig.17) located on the rear table trunnion assembly. Figure Figure 17 2. Install guard post through slot at rear of saw and into the hole in the trunnion. -
Page 14: Blade Installation And Removal
Assembly Blade Installation and Removal Please disconnect saw from the WARNING power source. Make sure to use caution while work with or around saw blade. 1. Raise the blade arbor and make sure the arbor is at the zero degree position. 2. -
Page 15: Operation
Operation Raising and Tilting the Saw Blade 1. To raise or lower the saw blade, loosen the lock knob (A, Fig. 24) and turn the handwheel (B, Fig. 24) on the saw front until desired height is reached. Tighten lock knob. The blade should be adjusted 1/8”... -
Page 16: Maintenance
Maintenance Caution! BEFORE CLEANING OR CARRYING OUT MAINTENANCE WORK, DISCONNECT THE MACHINE FROM THE POWER SOURCE (WALL SOCKET). NEVER USE WATER OR OTHER LIQUIDS TO CLEAN THE MACHINE. USE A BRUSH. REGULAR MAINTENANCE OF THE MACHINE WILL PREVENT UNNECESSARY PROBLEMS. Keep the table clean to ensure accurate cutting. -
Page 17: Troubleshooting
Troubleshooting WARNING! FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY TROU- BLESHOOTING. For parts or technical questions contact: techsupport@rikontools.com or 877-884-5167. -
Page 18: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip- ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 19: Parts Diagram
Parts Diagram... - Page 20 Parts Diagram...
-
Page 21: Parts List
Parts List Part No. Description Part No. Description 1-JL84010002 Extension wing 1-JL84021000 Cabinet 1-M10X30GB5783Z Hex bolt M10X30 1-JL84020002 Cover plate 1-WSH10GB95Z Washer 10 1-M6X10GB818Z Set screw M6X10 1-JL84010001 Table 1-WSH6GB95Z Washer 6 1-JL84010003 Table insert 1-JL84020003 Hook 1-JL84010005 Spring plate 1-M6GB6170Z Nut M6 1-M4X6GB818Z... - Page 22 Parts Diagram...
-
Page 23: Parts List
Parts List Part No. Description Description Part No. 1-JL84040002 Trunnion bracket Shaft 1-JL84040003 1-JL84040001 Trunnion Locking nut M20 1-M20GB889D1Z 1-M8X25GB5783Z Hex bolt M8X25 Washer 20 1-WSH20GB95Z 1-M8GB6170Z Nut M8 Collar 1-JL84040005 1-JL84042003 Turbine Worm shaft assembly 1-JL84041000 1-JL84042001 Arbor bracket Turbine II 1-JL84040004 1-M10X10GB77B... - Page 24 Parts Diagram...
- Page 25 Parts List Part No. Description 1-JL84051200 Lock handle assembly 1-PIN5X30GB879B Pin 5X30 1-JL84051100 Fence bracket assembly 1-M8X45GB12Z Carriage bolt M8X45 1-M8GB889Z Nut M8 1-JL84051003 Magnifi er 1-M5X8GB818Z Screw M5X8 1-JL84051008 Frication plate 1-M8X8GB77B Screw M8X8 1-M6X40GB5783Z Hex bolt M6X40 1-M6GB889Z Locking nut M6 1-JL84051001 Bracket...
-
Page 26: Warranty
Warranty 2-Year Limited Warranty RIKON Power Tools/Richen Enterprise, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of two (2) years from the date the product was purchased at retail. This warranty may not be transferred. - Page 27 For more information: 110 Cummings Park Woburn, MA 01801 877-884-5167/781-933-8400 techsupport@rikontools.com www.rikontools.com Copyright Richen Enterprise, Inc. 2007 Printed in China 6/07...
