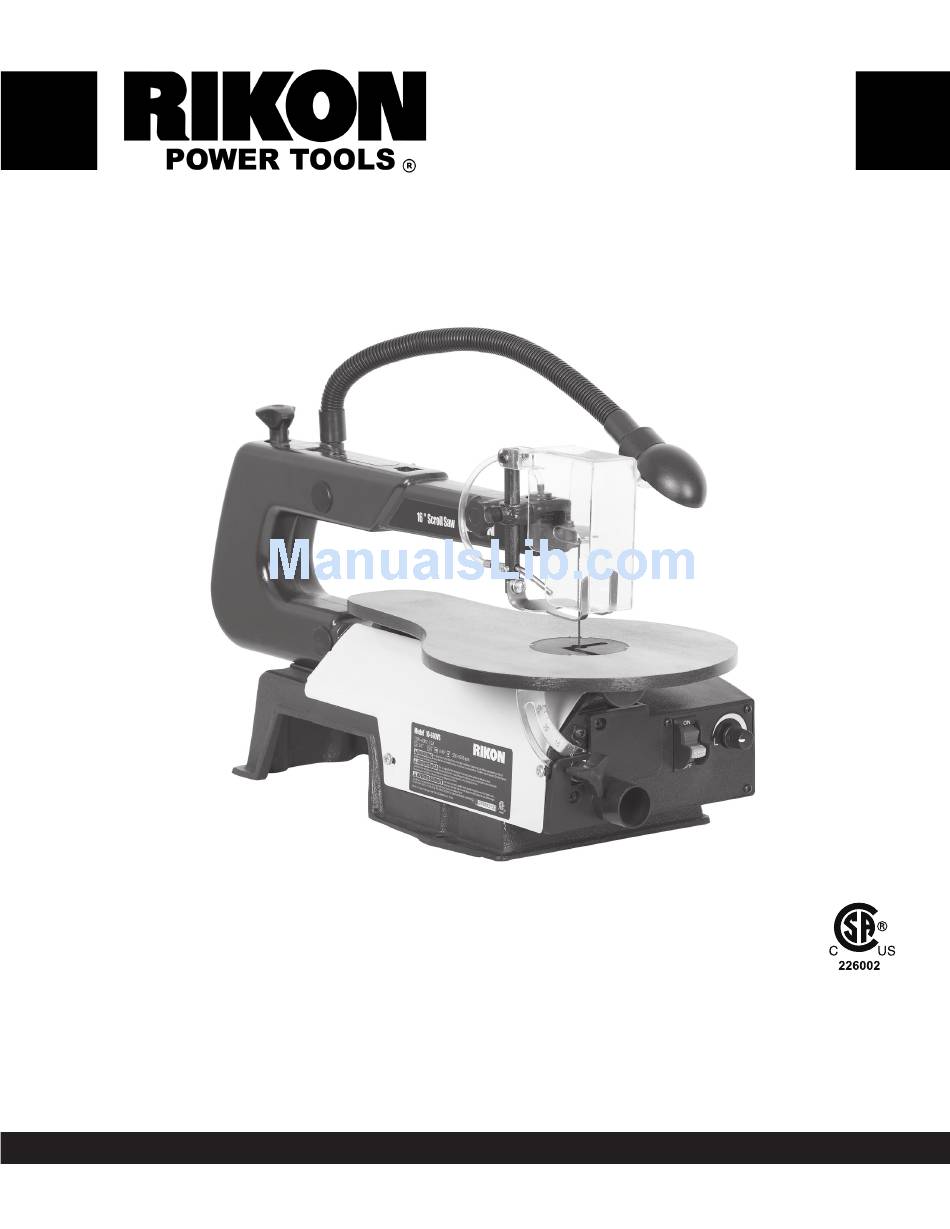

Operator's Manual
10-600VS
16" VS Scroll Saw
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________
Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
www.rikontools.com
10-600VSM2
Advertisement
Table of Contents
Related Manuals for Rikon Power Tools 10-600VS
Summary of Contents for Rikon Power Tools 10-600VS
- Page 1 10-600VS 16” VS Scroll Saw Operator’s Manual Record the serial number and date of purchase in your manual for future reference. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167 www.rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed. - Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
-
Page 5: Electricals & Wiring Diagram
SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK. - Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR SCROLL SAWS This machine is intended for the cutting of natural, solid woods, plywoods, composites, plastics and soft metals with the appropriate blades and safety precautions taken. The permissible workpiece dimensions must be observed (see Technical Specification).
-
Page 7: Getting To Know Your Machine
Flex Shaft Connection Work Table CONTENTS OF PACKAGE The model # 10-600VS 16” Scroll Saw is shipped complete in one box. Unpacking and Clean-up 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. -
Page 8: Assembly
CONTENTS OF PACKAGE LIST OF LOOSE PARTS Item Description Pinless Blade Holder Safety Blade Guard Pinless Blade Hex Nut M5 When unpacking, check to make sure the following parts are included. If any parts are Washer 5 mm missing or broken, please call RIKON Customer Service (877- 884-5167) as soon as possible for... - Page 9 ASSEMBLY • The saw table can be tilted up to a 45 degree diagonal position, see Figure 2, or be left in the TABLE TILTS horizontal position for your sawing needs. Phillips TO 45° LEFT • You can read off the approximate degree of angle by Screw using the angle scale located under the work bench.
-
Page 10: Operation
OPERATION THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. CHANGING THE SAW BLADES Warning: Switch off the saw and remove the power cord from power supply before installing saw blades in Adaptor order to avoid injuries caused by unintentional activa- tion of the saw. - Page 11 OPERATION Saw blades with pin ends This type of scroll saw blade comes with pre-installed pins that extend out from the sides of the blade ends. No adapters are needed to install these type of blades onto a scroll saw. Their pins mount directly onto the saw’s blade holders.
-
Page 12: Maintenance
Attaching the Flexible Shaft (optional accessory) The 10-600VS Scroll Saw features a drive shaft extending from its right side that can be used to operate a flex shaft. The shaft has a small chuck that holds rotary drills, burrs, stones and buffing wheels for detailed work on projects. -
Page 13: Troubleshooting
TROUBLESHOOTING FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY TROUBLESHOOTING. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Saw blades break Tension incorrectly set Set the correct tension Load too great Feed the workpiece more slowly Incorrect saw blade variety Use the correct saw blades Workpiece not fed straight... -
Page 14: Parts Diagram
Parts Explosion PARTS DIAGRAM... -
Page 15: Parts List
PARTS LIST Parts List Number Description Number Description Phillips Screw M5x8 Phillips Screw M5x6 Flat Washer Drop Foot Side Cover Flat Washer Hex Nut, Type I Phillips Screw M6x10 Lock Washer Cord Fix Plate Base Lock Washer Oil Cap Hex Socket Screw M8x25 Left Arm Housing Hex Bolt... -
Page 16: Warranty
10-600VS RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail.
