7. Secure dual blower plate to hood by following
removal instructions in reverse. Attach blower
wire to hood.
NOTE: To secure the 10" transition adapter to top of hood a cut out of 14 1/4" width x 10 1/4" depth will need
to be made in the cabinet bottom.
If internal cabinet dimensions prevent this size of a cut out then the 10" transition adapter may be mounted
to the cabinet bottom rather than the top of the hood. Cut out dimensions for this type of installation are
13 1/4" width x 6 1/4" depth.

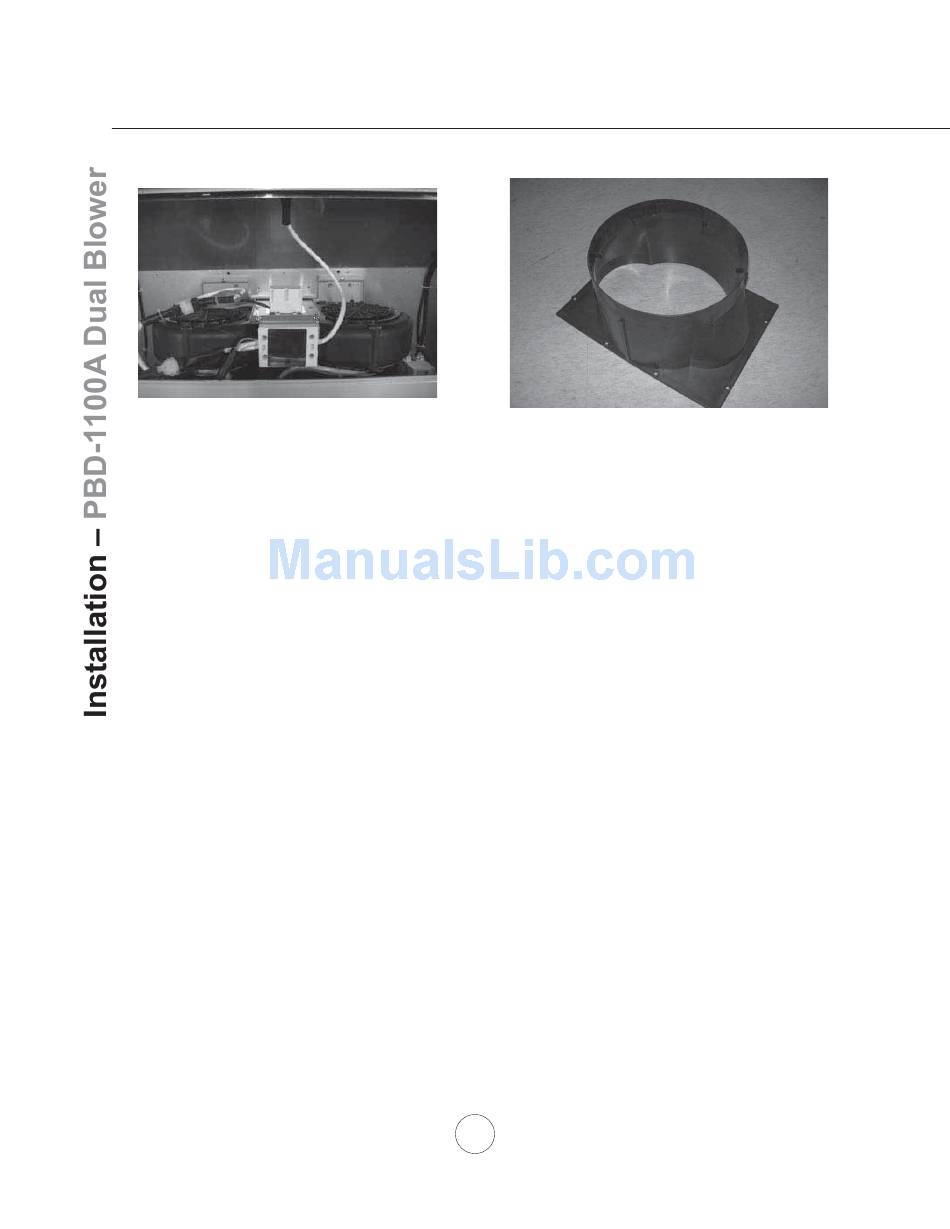

8. Place 10" round adapter (included with PBD-
1100A) on top of hood and secure with (4)
M4x8 screws. Connect 10" duct work.
The 10" round adapter is fi tted with a metal
damper to prevent outside airfl ow from
entering the kitchen.
The 6" round single blower is also fi tted with
a metal damper. If using the PBD-1100A dual
blower kit, the metal damper from the 6"
round single blower must be removed prior
to instaling the 10"round adapter. See
installation step 3 on page 13.
