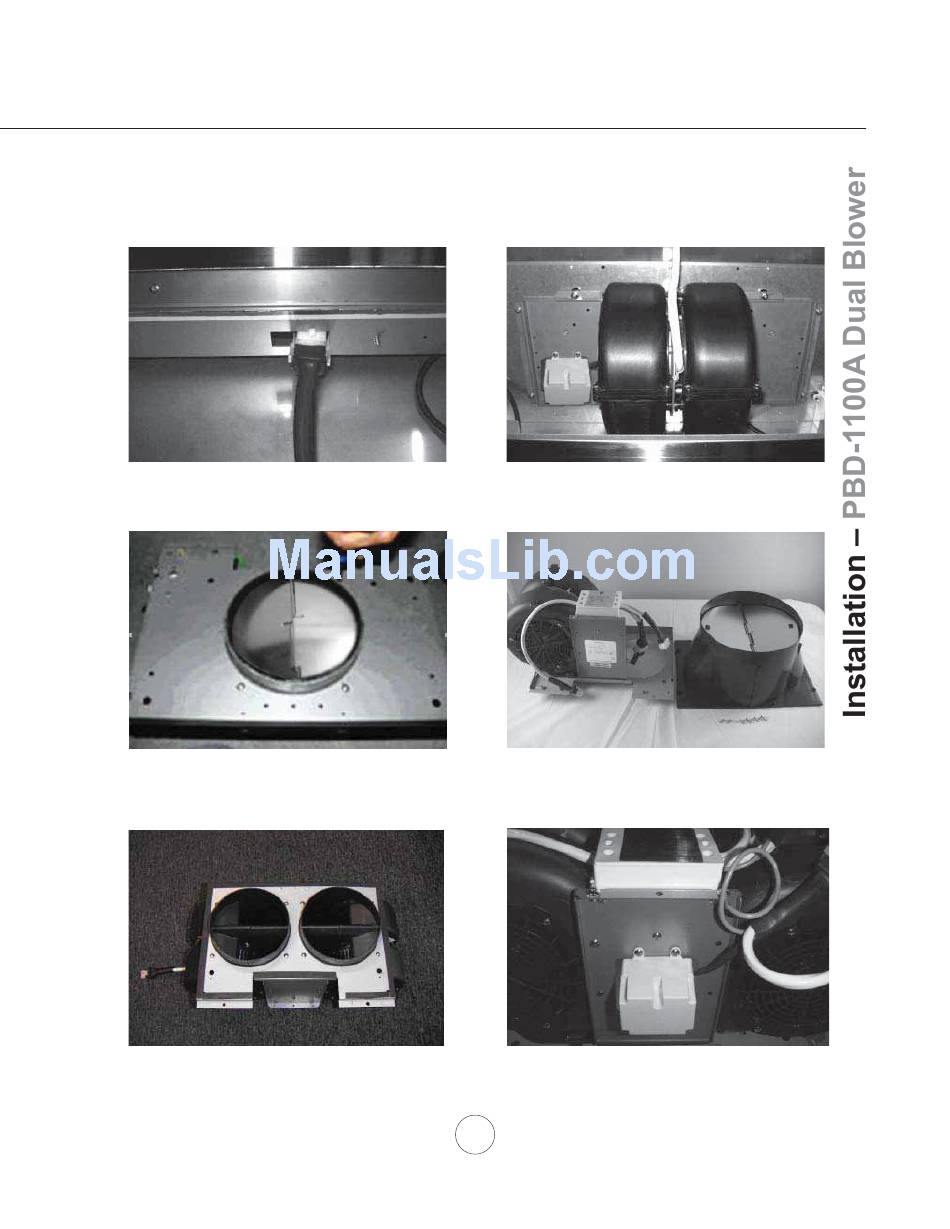

DUAL BLOWER INSTALLATION*
*IMPORTANT: Dual blower and heat lamps may only be used together in 42" models.
30" and 36" models will only accommodate one or the other, not both at the same time.
1. Disconnect single blower wire.
3. Remove (4) screws holding blower to blower
plate and remove blower. Remove capactor
from blower plate. Remove and discard metal
damper and blower plate.
5. Place recently removed single blower into PBD-
1100A blower plate and secure with (4) screws.
2. Remove support screw from top of hood near the
back. Remove 2 screws holding blower plate to
hood to release blower plate from hood body.
4. Picture of PBD-1100A dual blower kit.
6. Secure capacitor box to the side of the PBD-
1100A plate. Connect 6 pin male molex
connector from capacitor to 6 pin female molex
connector on dual blower capacitor box.
