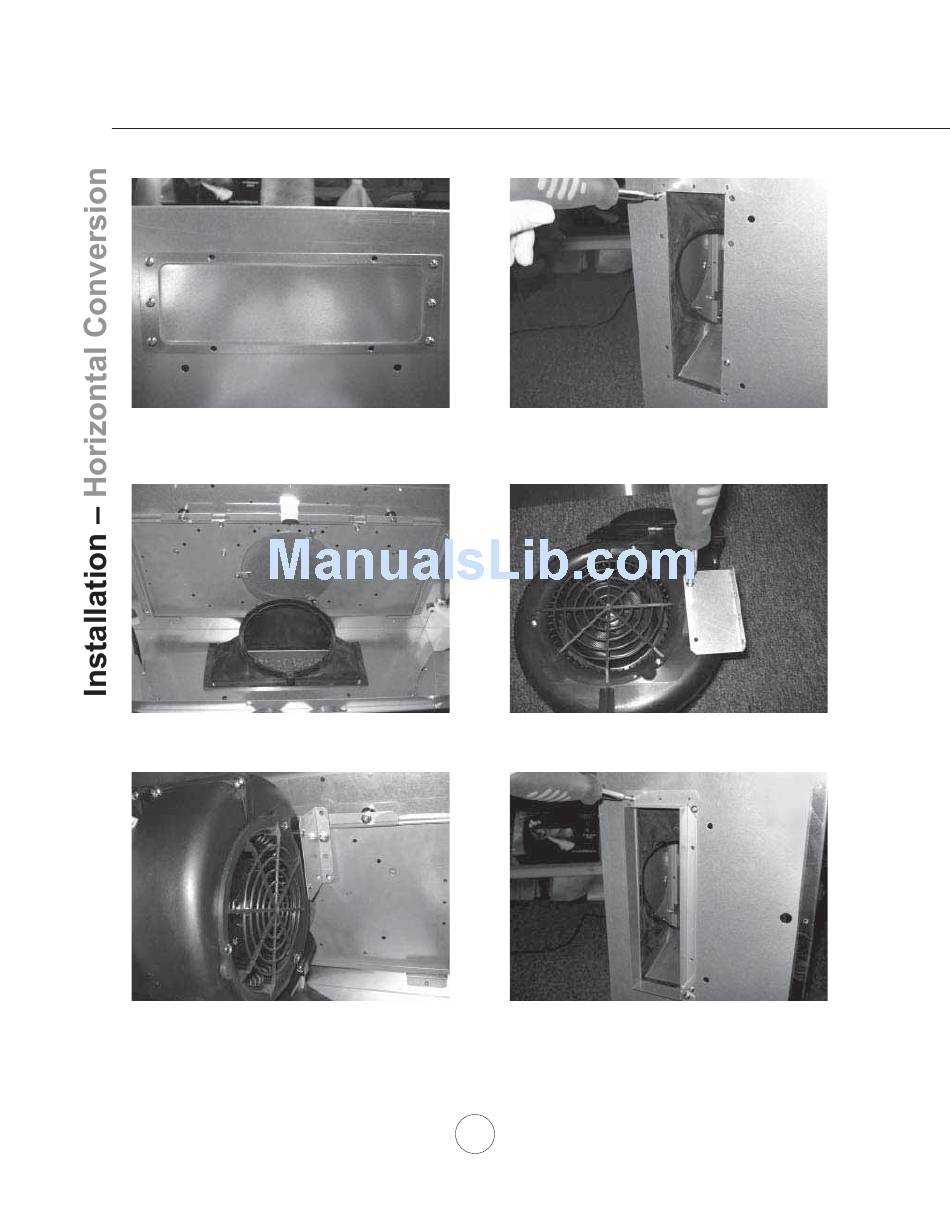

6. On the back of the hood, remove the (6) screws
holding the rectangular cap.
8. Picture of round to rectangular transition adapter
installed in hood.
10. Place blower inside round end of round to
rectangular transition adapter. Attach blower
with brackets to blower plate using (2) 3.5x8
screws on each bracket.
7. Place round to rectangular transition adapter
inside hood and line it up with the rectangular
opening. Attach with (4) M4x8 screws from the
outside.
9. Attach blower brackets to blower using (2)
10x3/16" screws on each bracket.
11. Attach rectangular starting collar using the (6)
screws removed from rear rectangular cap in
step 6.
