Printing/Cutting Area

Maximum Area

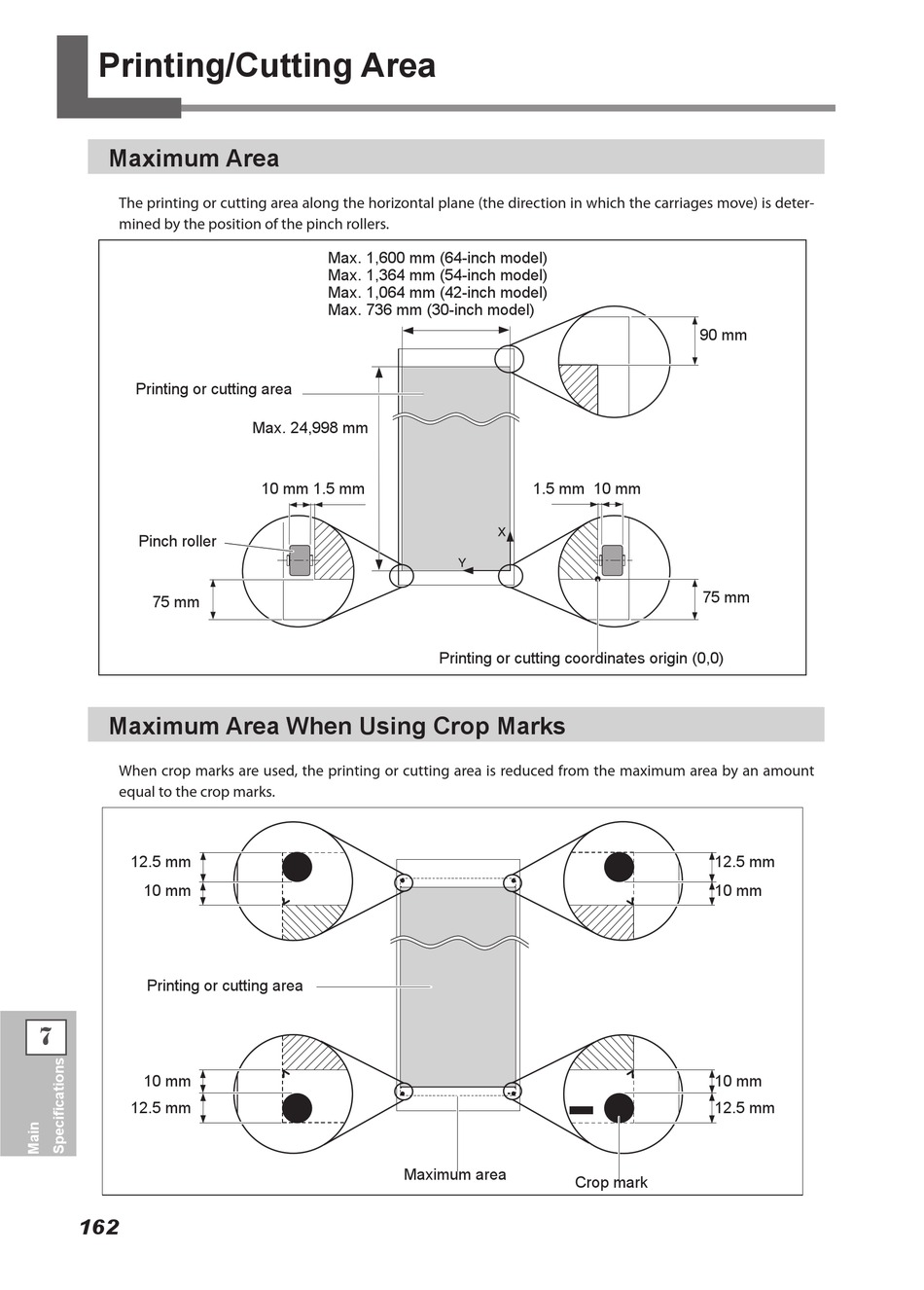

The printing or cutting area along the horizontal plane (the direction in which the carriages move) is deter-
mined by the position of the pinch rollers.
Printing or cutting area
Pinch roller
75 mm

Maximum Area When Using Crop Marks

When crop marks are used, the printing or cutting area is reduced from the maximum area by an amount
equal to the crop marks.
12.5 mm
10 mm
Printing or cutting area
7
10 mm
12.5 mm
162
Max. 1,600 mm (64-inch model)
Max. 1,364 mm (54-inch model)
Max. 1,064 mm (42-inch model)
Max. 736 mm (30-inch model)
Max. 24,998 mm
10 mm 1.5 mm

Maximum area

1.5 mm 10 mm
Printing or cutting coordinates origin (0,0)
Crop mark
90 mm
75 mm
12.5 mm
10 mm
10 mm
12.5 mm
