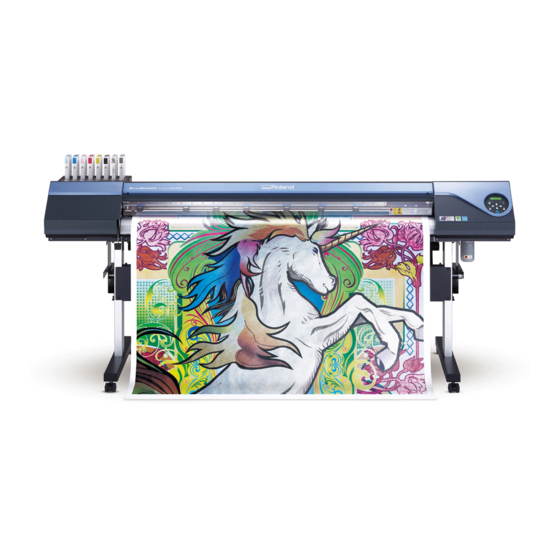

Roland VersaCAMM VS-640 User Manual
  1. Manuals
  2. Brands
  3. Roland Manuals
  4. Printer
  5. VS-640
  6. User manual
Roland VersaCAMM VS-640 User Manual

Roland VersaCAMM VS-640 User Manual

Hide thumbs Also See for VersaCAMM VS-640:

Advertisement

Table of Contents

See also: User Manual , Setup Manual
USER'S MANUAL
Thank you very much for purchasing this product.
 To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely and store it in a safe location.
 Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
 The contents of this document and the specifications of this product are subject to change without notice.
 The documentation and the product have been prepared and tested as much as possible. If you find any misprint or
error, please inform us.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this
product, regardless of any failure to perform on the part of this product.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to
any article made using this product.

Advertisement

Table of Contents
loading

Related Manuals for Roland VersaCAMM VS-640

Summary of Contents for Roland VersaCAMM VS-640

  • Page 1  The documentation and the product have been prepared and tested as much as possible. If you find any misprint or error, please inform us.  Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.
  • Page 2 VS-420 — 42-inch model VS-300 — 30-inch model Also, most of the figures in this document depict the VS-640 Company names and product names are trademarks or registered trademarks of their respective holders. http://www.rolanddg.com/ Copyright © 2010 Roland DG Corporation...
  • Page 3 To Ensure Safe Use This machine weighs 200 kg (441 lb.). Media weighs 40 kg (88 lb.). WARNING WARNING Install the machine in a location that is Be sure to lock the stand's casters. level, stable, and able to bear the weight If the machine should begin to topple, a ma- of the machine.
  • Page 4 Pour utiliser en toute sécurité Le poids de cet appareil est de 200 kg (441 lb.) Le poids du support est de 40 kg (88 lb.) ATTENTION ATTENTION S'assurer de verrouiller les roulettes de Installer l'appareil à un endroit stable et la base.

  • Page 5: Usable Media

    Prepare the Media Usable Media This machine cannot necessarily print every kind of media. When selecting media, be sure to carry out testing in advance to make sure that satisfactory printing quality is obtained. Size Width (For both Roll Media and sheet media) 64-inch model: 210 to 1625 mm (8.3 to 64 inches) 54-inch model: 210 to 1371 mm (8.3 to 54 inches) 42-inch model: 210 to 1071 mm (8.3 to 42 inches)

  • Page 6: Loading Roll Media

    Loading Media Loading Roll Media CAUTION Load roll media correctly. Otherwise the media may fall and cause injury. CAUTION Roll media weighs about 40 kg (88 lb.). To avoid injury, handle with care. CAUTION Never load media that weighs over 40 kg (88lb.) for the 64-inch model (, 30 kg (66lb.) for the 54-inch model, and 25 kg (55lb.) for the 42-inch or the 30-inch model).

  • Page 7: Replacing Consumable Parts

    Replace with new items. TIME FOR WIPER REPLACE Regarding the purchase of the wiper, contact your authorized Roland DG Corp. dealer. CAUTION Be sure to perform operations as specified by the following instructions, and never touch any area not specified in the instructions.

  • Page 8: Printing/Cutting Area

    Printing/Cutting Area Maximum Area The printing or cutting area along the horizontal plane (the direction in which the carriages move) is deter- mined by the position of the pinch rollers. Max. 1,600 mm (64-inch model) Max. 1,364 mm (54-inch model) Max.

  • Page 9: Specifications

    The length of printing or cutting is subject to the limitations of the program.  Media type: Media specified by Roland DG Corp. (Cutting only)  Temperature: 25°C (77°F), humidity: 50%  Roll media must be loaded correctly.
  • Page 10 This product is using GNU General Public License (GPL) / GNU Lesser General Public License (LGPL) software. You have the right to acquire, modify, and distribute the source code for this GPL/LGPL software. You can obtain the GPL/LGPL source code used in this product by downloading it from the following website.
