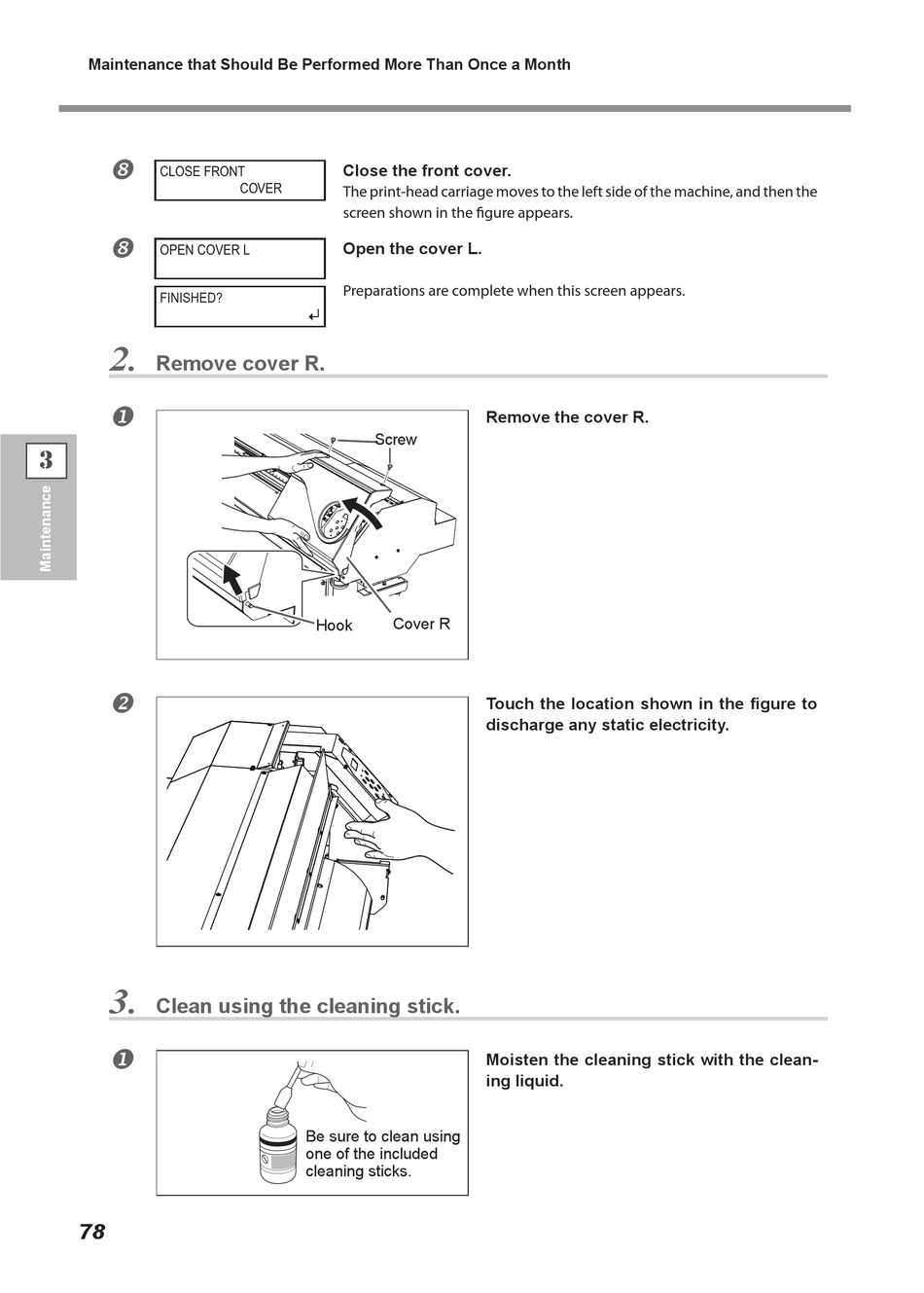

Roland VersaCamm VS-640 User Manual page 80

Maintenance that Should Be Performed More Than Once a Month

CLOSE FRONT

OPEN COVER L
FINISHED?
2.
Remove cover R.

3

3.
Clean using the cleaning stick.

78
Close the front cover.
COVER
The print-head carriage moves to the left side of the machine, and then the
screen shown in the figure appears.
Open the cover L.
Preparations are complete when this screen appears.
Screw
Cover R
Hook
Be sure to clean using
one of the included
cleaning sticks.
Remove the cover R.
Touch the location shown in the figure to
discharge any static electricity.
Moisten the cleaning stick with the clean-
ing liquid.
