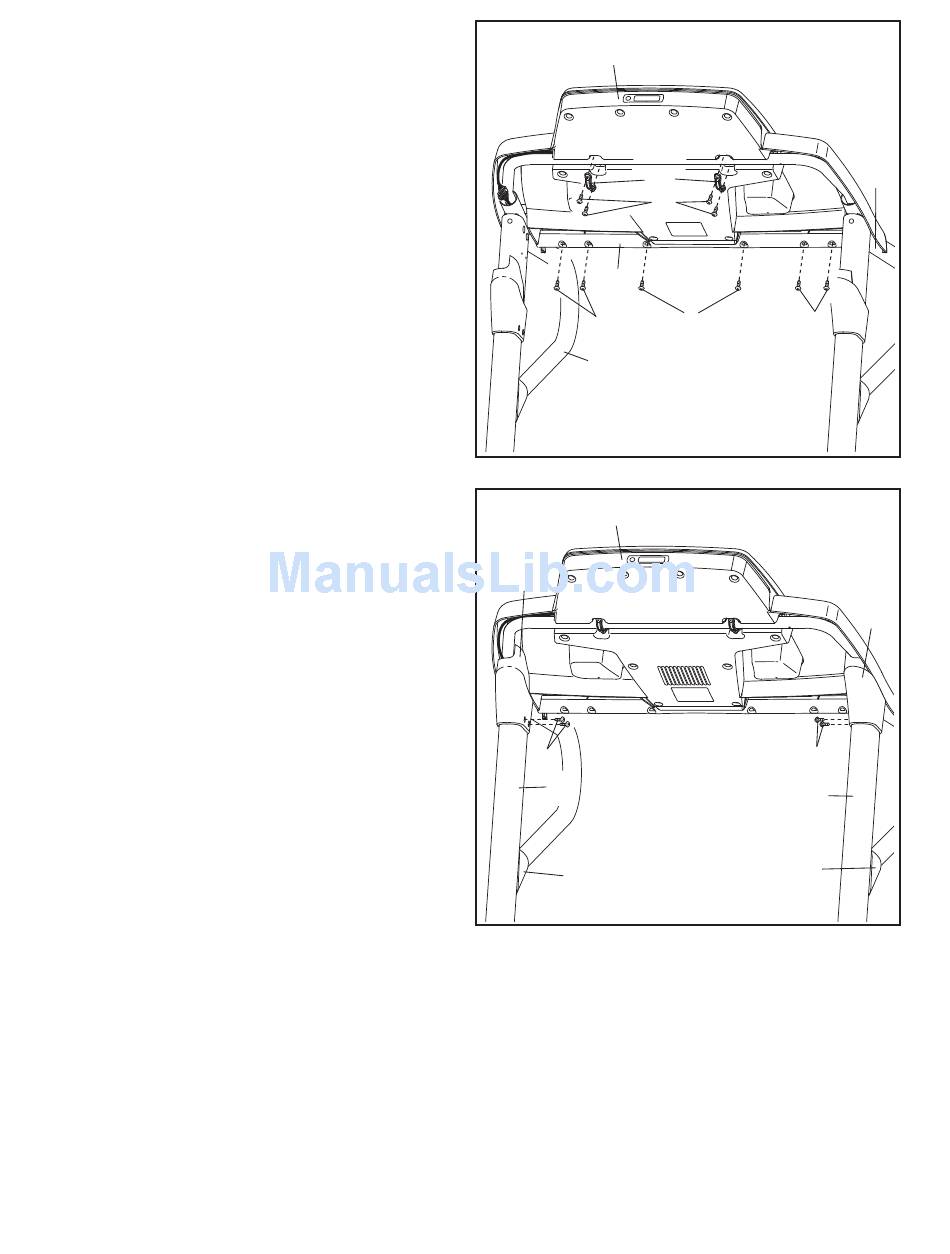

12. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires.
Attach the console assembly to the Crossbar
(107) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
13. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x 3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
Slide the Handrail Caps (81) down against the
Uprights (84, 85).
See steps 4 and 6. Tighten the four 3/8" x 4"
Patch Screws (7) and the two 3/8" x 1 1/2"
Screws (14).
12
Console Assembly
105
107
1
83
13
Console Assembly
86
1
85
81
13
53
1
1
1
84
81
82
80
