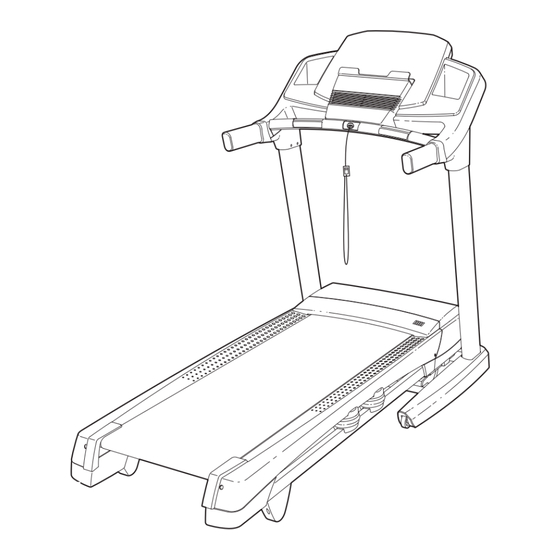

Pro-Form PETL12711.0 User Manual

Performance 1250
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model No. PETL12711.0
USERʼS MANUAL
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
AUSTRALIA
Call: 1-800-237-173
E-mail:
australiacc@iconfitness.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
www.iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PETL12711.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Form PETL12711.0

Summary of Contents for Pro-Form PETL12711.0

  • Page 1 Model No. PETL12711.0 USERʼS MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, please contact us: Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 19. Never leave the treadmill unattended while it 23. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. DANGER: the power cord, and press the power switch into the off position when the treadmill is not Always unplug the power in use.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary PROFORM ing this manual, please see the front cover of this man- ® PERFORMANCE 1250 treadmill. The PERFOR- ual. To help us assist you, please note the product MANCE 1250 treadmill offers an impressive selection model number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • Assembly requires two persons. • Assembly requires the following tools: • Place all parts in a cleared area and remove the the included hex keys packing materials. Do not dispose of the packing materials until you finish assembly. one adjustable wrench •...
  • Page 8 3. Identify the Left Upright (89), which is marked “Left.” Have a second person hold the Left Upright near the Base (94). See the inset drawing. Tie the wire tie in the Left Upright (89) securely around the end of the Wire Upright Wire (81).
  • Page 9 5. Identify the Left and Right Base Covers (82, 83). Slide the Left Base Cover onto the Left Upright (89). Slide the Right Base Cover onto the Right Upright (90). Do not press the Base Covers into place yet. Identify the Left and Right Upright Covers (79, 80).
  • Page 10 7. Attach the Left Handrail (88) to the Left Upright (89) with two 5/16" x 1" Screws (5), two 5/16" Star Washers (11), and a 5/16" x 1 1/4" Screw (4). Do not fully tighten the Screws yet. Attach the Right Handrail (87) in the same way.
  • Page 11 10. With the help of a second person, hold the con- sole assembly near the Left Handrail (88). Connect the Upright Wire (81) to the console Console wire. See the inset drawing. The connectors Assembly should slide together easily and snap into place.
  • Page 12 12. Firmly tighten the four the 3/8" x 2 3/4" Screws (7) and then the four 3/8" x 1 1/4" Screws (8) (only one side is shown). Press the Left and Right Base Covers (82, 83) onto the Base (94) until they snap into place. 13.
  • Page 13 15. Attach the Left and Right Trays (107, 108) to the console assembly with four #8 x 1/2" Screws (1). Console Assembly 16. Next, raise the Frame (56) to the position shown. Have a second person hold the Frame until step 17 is completed. Orient the Storage Latch (53) so that the large barrel and the latch knob are oriented as shown.
  • Page 14 17. Attach the upper end of the Storage Latch (53) to the Frame (56) with a 3/8" x 1 3/4" Bolt (6) and a 3/8" Nut (12). Note: It may be necessary to move the Frame back and forth to align the Storage Latch with the Frame.

  • Page 15: The Chest Heart Rate Monitor

    THE CHEST HEART RATE MONITOR HOW TO PUT ON THE HEART RATE MONITOR • Do not expose the heart rate monitor to direct sunlight for extended periods of time; do not expose The heart rate it to temperatures above 122° F (50° C) or below 14° monitor consists of F (-10°...

  • Page 16: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. This product must be earthed. If it should malfunc- 1. Plug the indicated end of the power cord into the tion or break down, earthing provides a path of least socket on the treadmill.
  • Page 17 CONSOLE DIAGRAM FEATURES OF THE CONSOLE your progress toward your fitness goals. To purchase a SYNC at any time, call the telephone number on the front cover of this manual. The treadmill console offers an impressive array of features designed to make your workouts more effec- tive and enjoyable.
  • Page 18 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
  • Page 19 4. Change the incline of the treadmill as desired. The Distance display—This display To change the incline of the treadmill, press the will show the distance Incline increase or decrease button or one of the that you have walked or numbered Quick Incline buttons.
  • Page 20 6. Measure your heart rate if desired. 7. Turn on the fan if desired. Note: If you use the handgrip heart rate monitor The fan features several Fan Increase and the chest heart rate monitor at the same speed settings. Press time, the console will not display your heart the Fan increase or de- rate accurately.
  • Page 21 HOW TO USE AN ONBOARD WORKOUT The workout will continue in this way until the last segment of the profile flashes in the display and the 1. Insert the key into the console. last segment ends. The walking belt will then slow to a stop.
  • Page 22 HOW TO USE AN IFIT LIVE WORKOUT When you select an iFit Live workout, the display will show the duration of the workout, the distance Note: To use an iFit Live workout, you must have an you will walk or run, the approximate number of optional iFit Live module.
  • Page 23 THE INFORMATION MODE function. If the demo mode is turned on, the word ON will appear in the center display. To turn on or The console features an information mode that keeps turn off the demo mode, press the Enter button or track of treadmill information and allows you to person- the Speed decrease button.
  • Page 24 HOW TO USE THE STEREO SOUND SYSTEM HOW TO USE A PROFORM SYNC This treadmill has been designed specifically to work The optional PROFORM SYNC enables you to record with iPod and has been certified by the developer to your treadmill workout results on your iPod (not in- ®...

  • Page 25: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following c. Remove the key from the console, and then the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. d.
  • Page 27 Locate the Reed Switch (52) and the Magnet (50) b. If the walking belt is overtightened, treadmill perfor- on the left side of the Pulley (49). Turn the Pulley mance may decrease and the walking belt may be- come damaged. Remove the key and UNPLUG until the Magnet is aligned with the Reed Switch.
  • Page 28 SYMPTOM: The walking belt is off-center or slips b. If the walking belt slips when walked on, first re- when walked on move the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws a. If the walking belt is off-center, first remove the clockwise, 1/4 of a turn.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 30: Part List

    PART LIST Model No. PETL12711.0 R0511A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw Reed Switch Clip #8 x 3/4" Screw Reed Switch 3/8" x 2" Bolt Storage Latch 5/16" x 1 1/4" Screw Drive Motor 5/16"...
  • Page 31 Key No. Qty. Description Key No. Qty. Description Module Housing 5/16" Flat Washer Console Back UK Power Cord Console Receptacle Console Frame Motor Bushing Ground Wire Filter Bracket Console Clamp Filter Left Tray Motor Isolator Right Tray Chest Strap Console Base Sensor Base Ground Wire Grounding Bracket...

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. PETL12711.0 R0511A...
  • Page 33 EXPLODED DRAWING B Model No. PETL12711.0 R0511A...
  • Page 34 EXPLODED DRAWING C Model No. PETL12711.0 R0511A...
  • Page 35 EXPLODED DRAWING D Model No. PETL12711.0 R0511A...

  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
