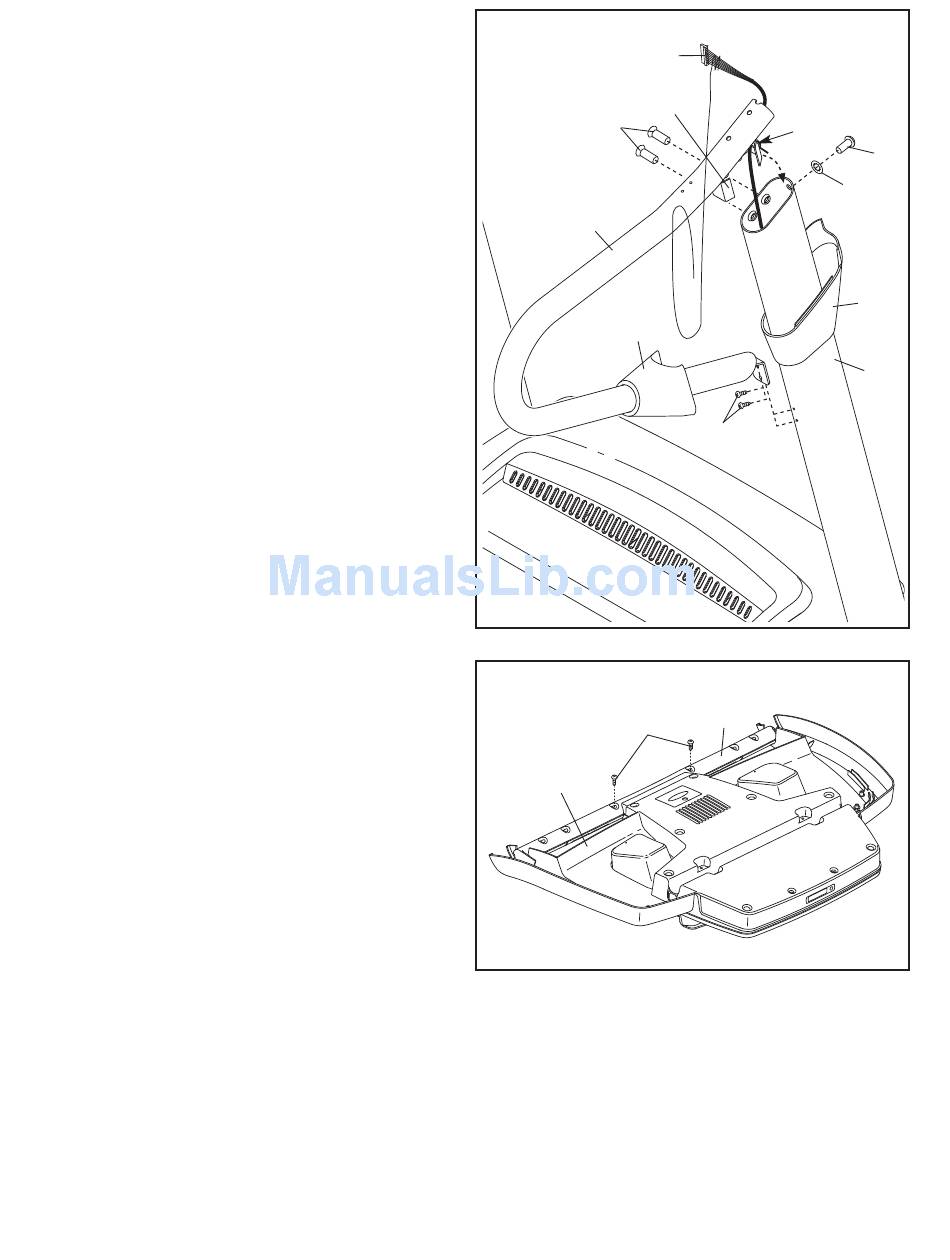

8. Remove the tie from the indicated bracket on
the Right Handrail (83). If necessary, press the
5/16" Cage Nuts (38) back into place.
Orient the Right Upright Cover (86) as shown,
and slide it onto the Right Upright (85). Next, ori-
ent a Handrail Cap (81) as shown, and slide it
onto the Right Handrail (83).
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the indicated bracket on the Right
Handrail. Pull the Upright Wire out of the end of
the Right Handrail.
Position the Right Upright Cover (86) as
shown. Attach the Right Handrail (83) to the
Right Upright (85) with two 5/16" x 1" Flat Head
Patch Screws (3), a 5/16" x 1" Patch Bolt (4)
with a 5/16" Star Washer (13), and two #8 x 3/4"
Screws (1). Do not tighten the Patch Bolt or
the Screws yet.
Attach the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
9. Set the console assembly face down on a soft
surface to avoid scratching the console
assembly.
Remove the Screws (A) attaching the Crossbar
(107). Next, lift off the Crossbar. Discard the
Screws.
