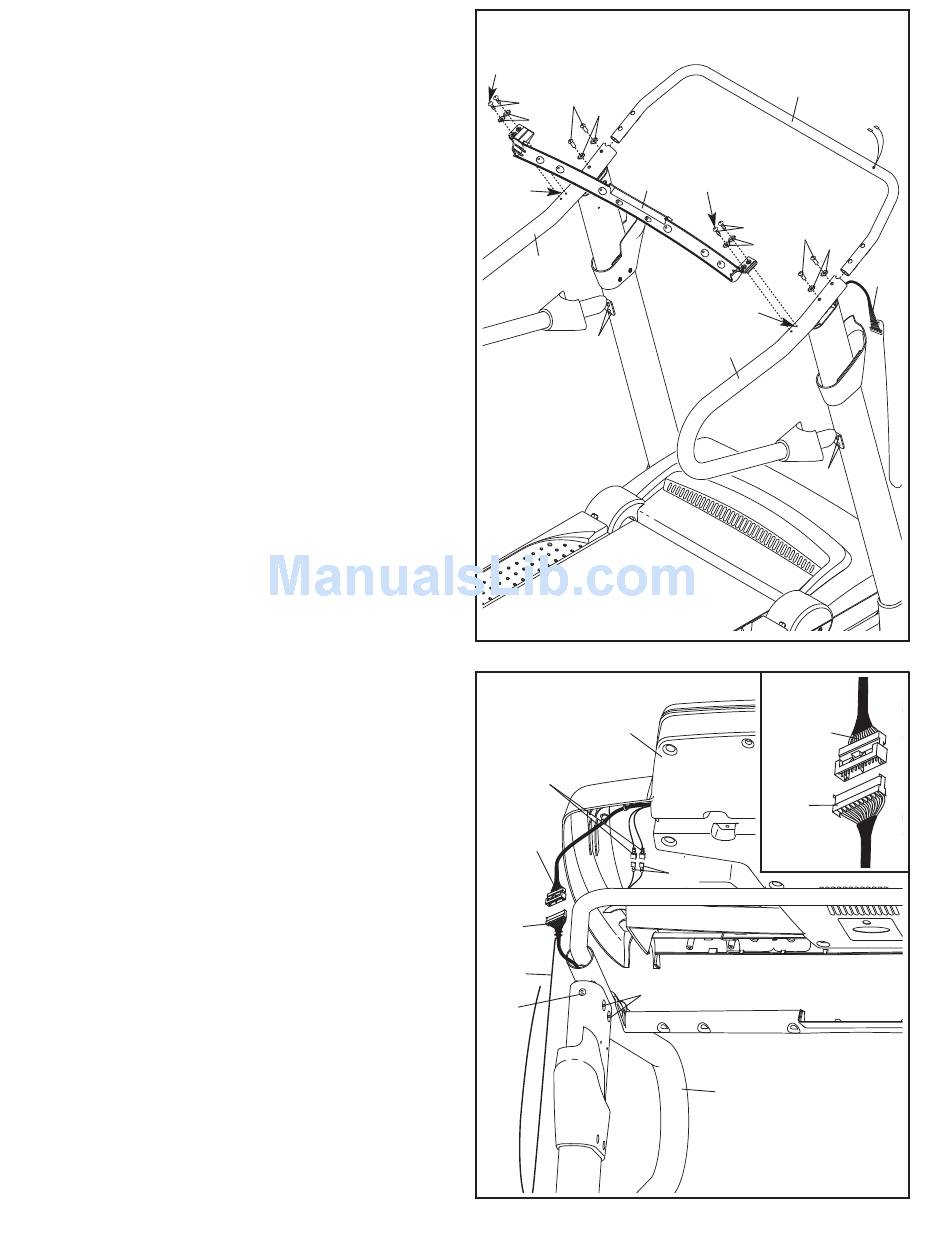

10. IMPORTANT: To avoid damaging the
Crossbar (107), do not use power tools and
do not overtighten the #10 x 3/4" Screws (2).
There may be two Screws (A) in the Handrails
(82, 83) in the indicated locations. If there are,
remove and discard them.
Orient the Crossbar (107) as shown. Attach the
Crossbar to the Handrails (82, 83) with four #10
x 3/4" Screws (2) and four 1/4" Star Washers
(12); do not tighten the Screws yet.
Insert the Console Frame (102) into the
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1" Patch Screws (9) and four
1/4" Star Washers (12); do not tighten the
Patch Screws yet. Be careful not to pinch the
Upright Wire (87).
Tighten one #10 x 3/4" Screw (2) in each end
of the Crossbar (107); do not overtighten the
Screws. Then, tighten the other #10 x 3/4"
Screw (2) in each end of the Crossbar.
Tighten the four 1/4" x 1" Patch Screws (9) and
the four #8 x 3/4" Screws (1).
11. Firmly tighten the four 5/16" x 1" Flat Head
Patch Screws (3) and the two 5/16" x 1" Patch
Bolts (4) (only one side is shown).
With the help of a second person, hold the con-
sole assembly near the Right Handrail (83) and
the Left Handrail (not shown).
Connect the Upright Wire (87) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Connect the two ground wires from the console
assembly to the two Console Ground Wires
(52).
10
First
9
2
12
12
107
A
82
1
11
Console
Assembly
Ground
Wire
Console
Wire
87
Wire
Tie
3
4
12
102
First
2
9
12
12
A
83
1
Console
Wire
87
52
83
87
