Kodak X-Omat 1000 Operator's Manual
Fully automatic table-top, x-ray film processors
Hide thumbs
Also See for X-Omat 1000:
- Service manual (96 pages) ,
- Operating manual (49 pages) ,
- Instruction manual (50 pages)
Related Manuals for Kodak X-Omat 1000
Summary of Contents for Kodak X-Omat 1000

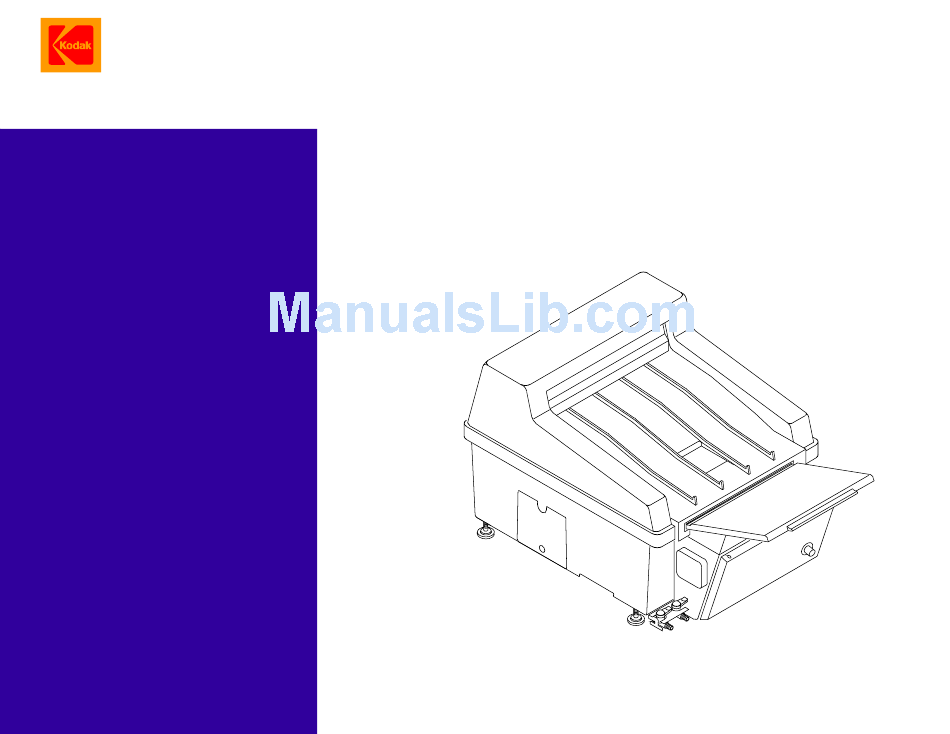

- Page 1 {OperatorsManual}{Production}{HealthImaging} Publication No. 9B8942 November 1997 Supersedes July 1997 HEALTH IMAGING OPERATOR MANUAL for the Kodak X-Omat 1000, 1000A, and 1000J PROCESSORS © Eastman Kodak Company, 1999...
-
Page 2: Table Of Contents
Processor, disconnect the power to the Processor and call a plumber or other contractor to correct any problem with the drain. Kodak accepts no responsibility or liability whatsoever for the serviceability of any drain connected to or associated with a KODAK X-OMAT Processor. Such drains are the sole responsibility of the customer. -
Page 3: Overview
Overview Section 1: Overview Product Description The KODAK X-OMAT 1000, 1000A, and 1000J Model Electrical Requirements Processors are fully automatic table-top, x-ray film 1000 Processor 220/230/240 V AC, 50/60 Hz Processors featuring easy installation and 1000J Processor 100 V AC, 50/60 Hz maintenance, reliability, and optimum image quality. - Page 4 OPERATORS MANUAL The Processor without the Top Cover Figure 2 H164_0021DCA H164_0021DC Note See also the illustrations on Pages - 11. Item No. Description Item No. Description Top Cover Dryer Rack Lid of the Feed Tray Drive Shaft 3 - 10 See the table on Page 3.
- Page 5 Overview Processor with Replenishment and Drain Hoses Inserted in the Correct Containers Figure 3 H164_0064DCA H164_0064DC Item No. Description Item No. Description Developer Overflow Hose Developer Replenishment Container Fixer Overflow Hose Wash Water Drain Container Wash Water Drain Hose Fixer Drain Container Wash Water Overflow Hose Developer Drain Container Developer Replenishment Hose...
-
Page 6: Operating Instructions
OPERATORS MANUAL Section 2: Operating Instructions Daily Start-Up Warning • If Drain Containers ( 36, 37, 38 ) are used, continually check that the Drain Containers have enough room in them to accommodate more solution and will not overflow. • If the Processor drains solutions into a floor drain, the drain must be made of chemically resistant, non-corrosive material. -
Page 7: Film Feeding Procedure
Operating Instructions Film Feeding Procedure Feeding Film into the Processor Figure 4 1 each 1 each 1 each 28 x 35 cm (11 x 14 in.) 35 x 43 cm 35 x 35 cm (14 x 17 in.) (14 x 14 in.) 1 each 2 side by side 1 each... -
Page 8: Daily Shutdown Of The Processor
OPERATORS MANUAL [3] Slowly feed the sheet of film into the Processor. When the film starts to move by itself, release the film. [4] When the trailing edge of the sheet of film is inside of the Feed Tray, close the Lid of the Feed Tray tightly. [5] The “Ready”... -
Page 9: Draining And Cleaning The Tanks, In Preparation For Changing The Chemicals Or Storing The Processor For More Than A Week
Operating Instructions Draining and Cleaning the Tanks, in Preparation for Changing the Chemicals or Storing the Processor for More Than a Week Rinsing the Racks Figure 5 H164_0014DCA H164_0014DC [1] Press the “ O ” on the “Power” Switch ( 20 ) to turn the Processor off. [2] Turn off the main power circuit breaker at the wall of the darkroom or unplug the Processor. - Page 10 OPERATORS MANUAL [11] Place the Developer and Fixer Drain Hoses ( 24, 25 ) into the Wash Water Drain Container ( 36 ) or into the floor drain (if allowed by local codes). [12] Use the Pitcher ( 43 ) to pour 4 litres of water into the Developer and Fixer Tanks ( 39, 40 ) in the Processor. [13] Turn on the power main circuit breaker at the wall or plug the Processor in.
-
Page 11: Replenishment Solutions
Replenishers. The 1000 Processors are set before shipment to be used in the Flooded Mode. Unless the mode of your Processor has been changed, you must add KODAK RP X-OMAT Developer Starter to the Developer Replenishment Container ( 35 ) at the rate of 3 fl oz/gallon or 90 mL/3.8 L. If you are not sure whether the Processor is set to Flooded or Regular Mode, ask your service provider. - Page 12 OPERATORS MANUAL [17] Turn on the water to the Processor. November 1997 – 9B8942...
-
Page 13: Preventive Maintenance
Preventive Maintenance Section 4: Preventive Maintenance Important For trouble-free operation of the Processor, perform maintenance periodically in accordance with the following suggestions. Daily Maintenance [1] At the start of each processing day, do the Start-Up procedure on Page 6. [2] At the end of each processing day, do the Shutdown procedure on Page 8. Weekly Maintenance Caution When you install or remove the Fixer Rack ( 15 ) , be careful not to splash fixer chemicals into the Developer Tank (... -
Page 14: Troubleshooting
• For white marks, check and gently clean the Rollers in the Developer Rack, using KODAK Roller Transport Cleanup Film CAT No. 166 2303. 2. Marks at 63 mm • The Rollers are flawed or dirty. - Page 15 Preventive Maintenance Action If this does not solve the Problem Problem Analysis problem, contact your service provider. Fogging • The developer is contaminated. • Drain the developer from the Processor, and do the cleaning • The Top Cover is not on properly. procedure on Page for the Developer •...
-
Page 16: Warranty (U.s. Only)
Kodak. • Such damages for which Kodak will not be responsible, include, but are not limited to, loss of revenue or profit, downtime costs, loss of use of the equipment, cost of any substitute equipment, facilities or services or claims of your customers for such damages.
