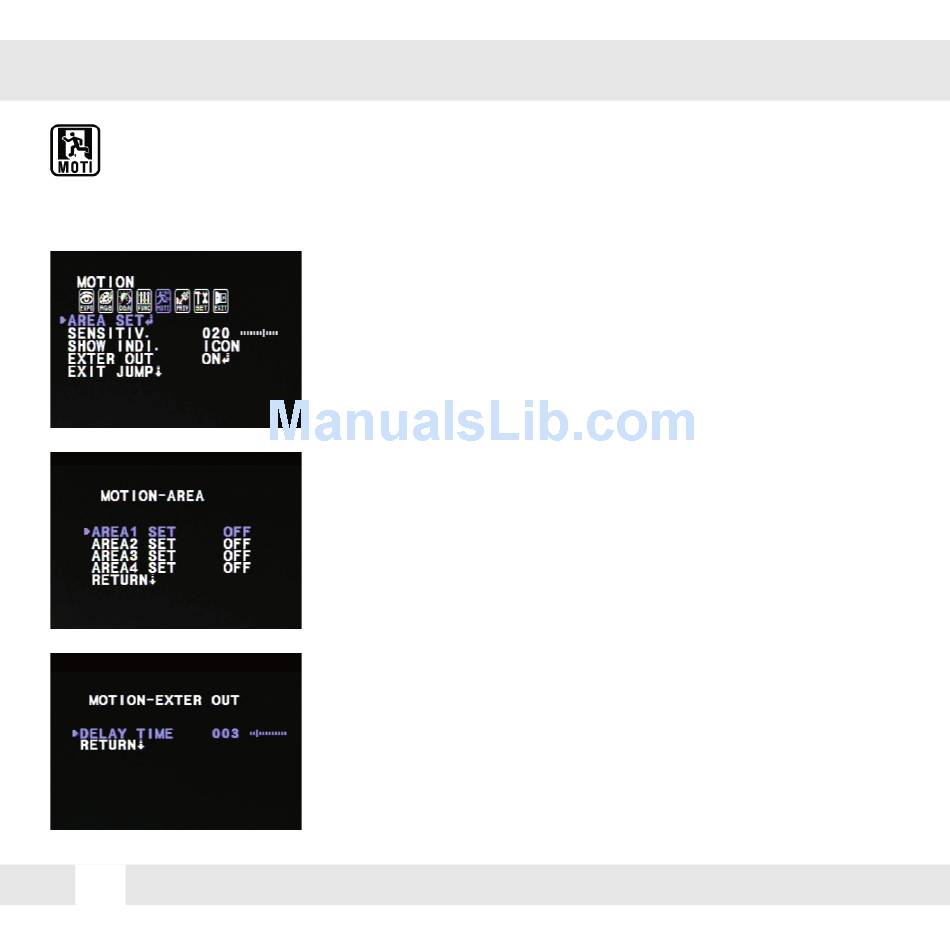

MOTION
The camera can detect the movement and display an alarm on the screen when movement is detected.
20
AREA SET
If ON, motion areas can be selected and moved
AREA 1 ~ 4
accordingly. Select Areas 1-4 and adjust using controls
OFF / ON
for TOP, BOTTOM, LEFT, or RIGHT.
SENSITIV.
Sensitivity level of the motion detection is adjustable.
1 ~ 30
Motion Detection will be more sensitive at a higher number.
SHOW INDI.
Set the Show Indicator to OFF, ICON, or TRACE. If ICON
OFF / ICON
is selected, a bell will appear in the upper right hand corner
TRACE
when motion is detected. If TRACE is selected, the area
where motion was detected will be highlighted.
EXTER OUT (ALARM SIGNAL, EXTERNAL OUTPUT)
If ON is selected, you can set how long (0~15s) the alarm
OFF / ON
is displayed on the screen when motion is detected.
EXIT JUMP
Save the current settings and exit the OSD menu.
SAVE & EXIT
Exit the OSD menu without saving the changes.
EXIT
