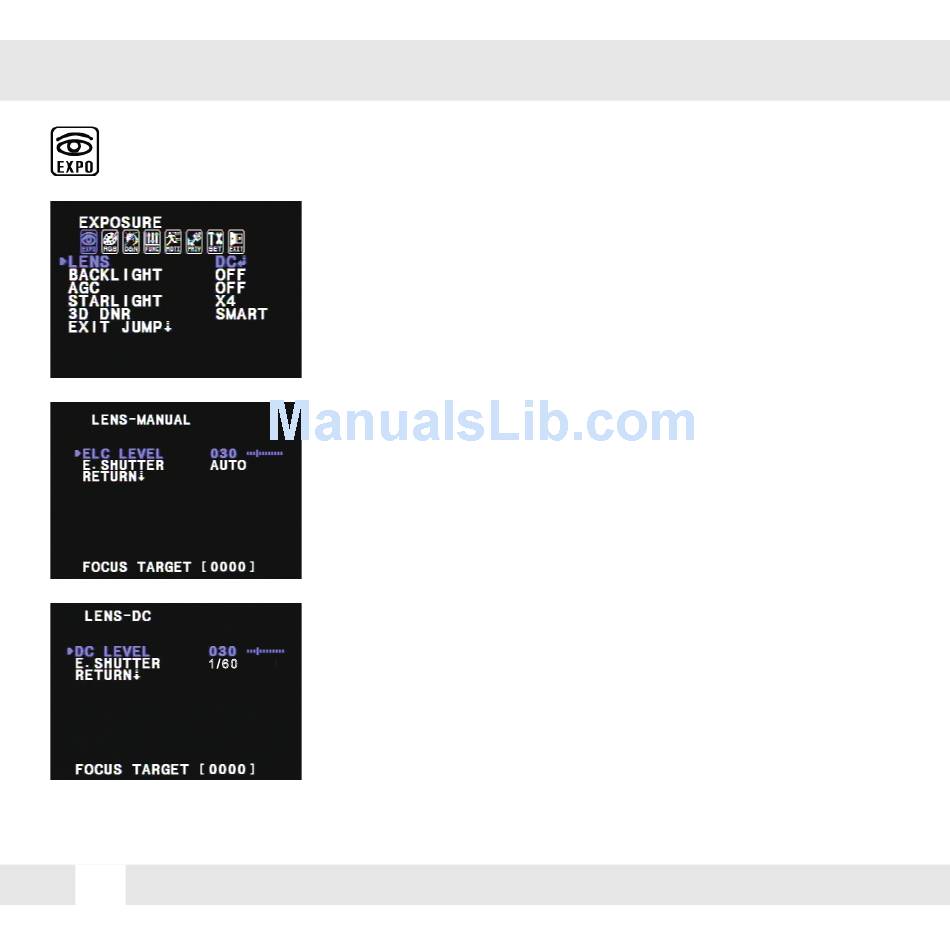

EXPOSURE
1 / 6 0
14
LENS
Manual mode supports the fixed board lens or the
Manual
manual iris lens.
DC mode supports the auto-iris varifocal lens.
DC
NOTE: Both MANUAL and DC mode have FOCUS TARGET. You
can adjust the focus by finding the highest number on the FOCUS
TARGET. See page 16 for focus information.
ELC Levels and DC Levels are adjustable. The higher the number,
the brighter the image.
E. Shutter sets the shutter speed levels from 1/60 to 1/100000.
*For LENS-MANUAL Mode, the default E.SHUTTER is AUTO.
*For LENS-DC Mode, the default E.SHUTTER is 1/60. Select DC-AUTO for
*oudoor use.
Select 1/100FLC to run camera in flickerless mode.
Note: The STARLIGHT option cannot be controlled if the
E.SHUTTER setting is above 1/60.
