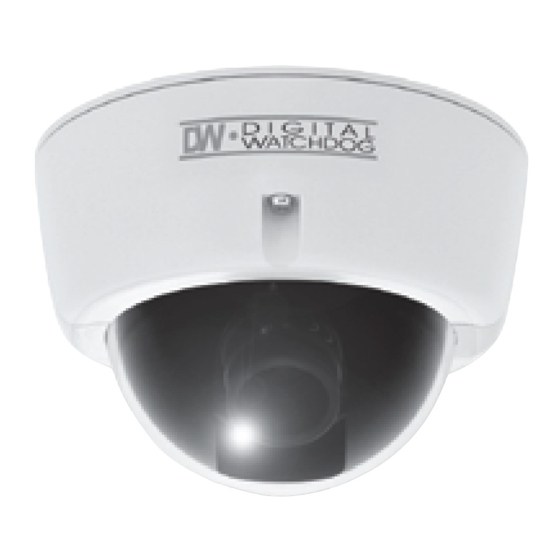

- Page 1 High Resolution Indoor Dome Camera DWC-D1362D ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 08092012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Installation Instructions Connecting to Monitors Adjusting the Camera Lens Adjusting the Camera’s Position Troubleshooting Warranty Information 14-15 Specifications 16-17 Memo 18-19...
- Page 4 FEATURES* 1/3” CCD 570 TV Lines (B&W), 540 TV Lines (Color) 3.3~12mm Varifocal Auto Iris Lens Electronic Day and Night BLC (Backlight Compensation) AWB (Auto White Balance) DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) Programmable Privacy Zones & Motion Detection Easy Icon Driven OSD Menu with Built-In Joystick Wide Operating Voltage (8VDC-18VDC) Secondary Video-BNC Output...
-
Page 5: Parts & Description
PARTS & DESCRIPTION* Lens Power Input Connector (12VDC) Primary Video-BNC Output Connector Bottom Case Mounting Screws Outer Dome Cover Assembly Screws... - Page 6 DIMENSIONS IN MILLIMETERS (IN)* 88.0(3.46”) 7.0(0.28”) 5.0(0.2”) 46.5 (1.83”) 123.8(4.9”) 82.5(3.25”)
-
Page 7: Inside The Box
INSIDE THE BOX* Included with D1 Indoor Dome Camera User Manual Miniature TORX Driver Mounting Template L-Key 2 Machine Screw and 2 Dry Wall Anchors Secondary Video-BNC Cable... -
Page 8: Camera Installation
CAMERA INSTALLATION* Cut a hole in the ceiling for Drill holes into the drywall Pull wires through and routing the cables. Use your and insert the drywall make connections. mounting template to mark mounts into the holes. the screw holes. Mount and secure the Position the lens, and Assemble the outer dome... -
Page 9: Wall Mount Installation
WALL MOUNT INSTALLATION* Check to see all parts are Use the mount to mark the Secure the wall mount to the in the box. pilot holes are required. Drill wall using the mounting holes into the drywall and screws. insert the drywall mounts. Attach the base of the camera Position the lens, and Assemble the outer dome... -
Page 10: Connecting To Monitors
CONNECTING TO MONITORS* DC12V / AC24V Video Output BNC Cable Main Monitor... -
Page 11: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Focus Handle Zoom Handle Loosen the zoom and focus handles by rotating them counter-clockwise. Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in or to the LEFT (wide) to zoom out. AFTER the desired zoom position is established, adjust the focus the same way as described above. - Page 12 ADJUSTING THE CAMERA’S POSITION* 60.0° Tilt 360.0° Pan...
- Page 13 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 14: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. -
Page 15: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street... -
Page 16: Specifications
SPECIFICATIONS* DWC-D1363D & DWC-D1363D922 VIDEO Image Sensor 1/3" CCD Total Pixels 811 (H) x 508 (V), 411K Pixels Effective Pixels 768 (H) x 494 (V) Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 570 TV Lines [B&W], 540 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.01 Lux [Color] F1.2 (30IRE): 0.00 Lux [B&W]... - Page 17 ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131 Operating Humidity Less than 90% (Non-Condensing) Storage Temperature C ~ 70 C (-4 F ~ 158 ELECTRICAL Power Requirement 12VDC Power Consumption 12VDC: 1.1, 91.7mA MECHANICAL Housing Material Plastic Dome Cover Material Polycarbonate Dimensions...
- Page 18 MEMO*...
- Page 19 MEMO*...
- Page 20 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
