  • Page 1 Metrologic MS1633 FocusBT Cordless 2D Scanner Installation Guide Revision 1.0...

  • Page 2: Revision History

    The latest version of this document can be found in the following places: • Internally for Cerner associates in the Cerner Knowledge Repository (KR) using the search function with the keywords: Metrologic or MS1633 • Internally for Cerner associates on “My Cerner” using the search function with the keywords: Metrologic or MS1633 •...

  • Page 3: Table Of Contents

    Table of Contents ......................3   Overview ........................4   LED and Beep Meanings ....................5  Metrologic MS1633 Scanner Setup (USB CodeXML Modem) ........6   Cerner Millennium Configuration..................6  Cerner Classic Configuration ....................8  Metrologic MS1633 Scanner Setup (USB Bluetooth Adapter)......... 10  ...

  • Page 4: Overview

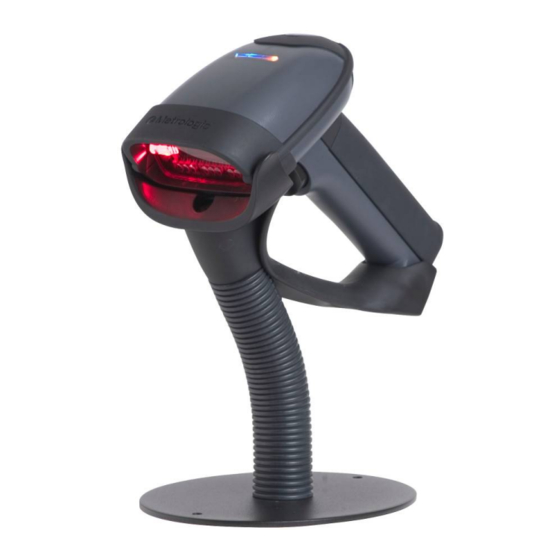

    Metrologic FocusBT Cordless 2D Scanner Installation Guide Overview This guide provides a Cerner-specific installation methodology for the following Metrologic scanner model. Model Kit Part Number Description MS1633 FocusBT Cordless 2D Scanner with USB MS1633-5 MK1633-61B40 CodeXML Bluetooth Modem MS1633 FocusBT Cordless 2D Scanner with...

  • Page 5: Led And Beep Meanings

    LED and Beep Meanings The MS1633 has three LED indicators (yellow, white and blue) located on the top of the scanner. When the scanner is on, the flashing or stationary activity of the LED’s indicates the status of the current scan and the scanner. The Beep also indicates the status of the scans. Normal Operation Feedback Beep Meaning...

  • Page 6: Metrologic Ms1633 Scanner Setup (Usb Codexml Modem)

    Cerner Millennium environment please perform the following steps. If you are installing your MS1633 scanner using the Metrologic USB Bluetooth adapter please move to that section of this document as the instructions in this section are not designed for your scanner.
  • Page 7 Cerner Millennium Configuration (Continued) Disable CR Suffix ³ 1 1 6 6 0 3 Disable LF Suffix ³ 1 1 6 6 0 2 Enable CodeXML Protocol ³ 4. Next scan the “Bluetooth Address Code” Barcode on the top of the CodeXML Modem. Enter/Exit Config Mode ³...

  • Page 8: Cerner Classic Configuration

    Cerner Classic environment please perform the following steps. If you are installing your MS1633 scanner using the Metrologic USB Bluetooth adapter please move to that section of this document as the instructions in this section are not designed for your scanner.
  • Page 9 Cerner Classic Configuration (Continued) Disable CR Suffix ³ 1 1 6 6 0 3 Disable LF Suffix ³ 1 1 6 6 0 2 Enable CodeXML Protocol ³ 4) Next scan the “Bluetooth Address Code” Barcode on the top of the CodeXML Modem. Enter/Exit Config Mode ³...

  • Page 10: Metrologic Ms1633 Scanner Setup (Usb Bluetooth Adapter)

    USB CodeXML Modem please move to that section of this document as the instructions in this section are not designed for your scanner. To install the Metrologic MS1633 FocusBT scanner with a Bluetooth adapter you will need to load 3 software applications on your PC. These applications are on the CD that came with your scanner.
  • Page 11 MetroBT Driver Installation (Continued) 4) Choose a Setup Language the click Next 5) At the “welcome” screen select MS1633 Focus BT Scanner Installation Guide © Cerner Confidential and Proprietary All rights reserved. This document contains confidential information, which may not be reproduced or transmitted without the express written consent of Cerner Corporation.
  • Page 12 MetroBT Driver Installation (Continued) 6) After reviewing the end user license agreement, select the “I accept the terms of the Next license agreement” option, then click to continue. Install 7) Choose from the “Ready to Install the Program” screen. MS1633 Focus BT Scanner Installation Guide ©...
  • Page 13 MetroBT Driver Installation (Continued) 8) To continue the installation procedure without showing warnings for unauthorized I accept drivers, select and click 9) Plug the Bluetooth USB Adapter into the host device USB port then click OK to indicate MS1633 Focus BT Scanner Installation Guide ©...
  • Page 14 MetroBT Driver Installation (Continued) 10) When the installation is complete the “InstallShield Wizard Complete” window will Finish appear. Click to continue. 11) After the installation completes click on to restart the host device / computer. The host / computer must be rebooted at this time in order for the driver to function properly. MS1633 Focus BT Scanner Installation Guide ©...

  • Page 15: Metrobt Utility Installation

    13) If the CD-ROM does not automatically open, click on the window’s button, choose Browse , then click to locate and open the CD-ROM drive. Double-Click on the Metrologic.exe file then click MetroBT Utility 14) Click on the button to begin the installation.
  • Page 16 MetroBT Utility Installation (Continued) Place icon in the 17) In the Auto Reconnect Utility click the box in the left lower corner “ taskbar Close ” to keep the utility active when the window is closed. Click the button to close this window.

  • Page 17: Softwedge Installation

    SoftWedge Installation SoftWedge 18) Click on the button to begin the installation. Next 19) At the “welcome” screen select MS1633 Focus BT Scanner Installation Guide © Cerner Confidential and Proprietary All rights reserved. This document contains confidential information, which may not be reproduced or transmitted without the express written consent of Cerner Corporation.
  • Page 18 SoftWedge Installation (Continued) Next 20) At the “Destination Folder” select Install 21) Choose from the “Ready to Install the Program” screen. MS1633 Focus BT Scanner Installation Guide © Cerner Confidential and Proprietary All rights reserved. This document contains confidential information, which may not be reproduced or transmitted without the express written consent of Cerner Corporation.
  • Page 19 22) When the installation is complete the “InstallShield Wizard Completed” window will Finish appear. Click to continue. This will launch the Metrologic SoftWedge Utility. 23) When the “Metrologic SoftWedge Utility” window appears click to close window. MS1633 Focus BT Scanner Installation Guide ©...
  • Page 20 SoftWedge Installation (Continued) Exit 24) Select to exit the installation. Note: All the software required to connect and use the MS1633 Bluetooth scanner is now installed. Next we need to configure the software and establish a Bluetooth connection with the scanner. MS1633 Focus BT Scanner Installation Guide ©...

  • Page 21: Ms1633 Focusbt Connection Setup

    MS1633 FocusBT Connection Setup Bluetooth icon 25) Double-Click on the on the Windows Start bar in the bottom right corner of the screen. 26) The new connection wizard will automatically start. Power up the FocusBT scanner and allow it to boot completely. Three beeps will indicate the scanner is completely booted.
  • Page 22 MS1633 FocusBT Connection Setup (Continued) 27) A search for the Bluetooth devices should find the Focus BT scanner. The number(s) next to FocusBT indicate the serial number of the unit(s) found. Next Select the proper device and click to continue.
  • Page 23 MS1633 FocusBT Connection Setup (Continued) Connect 29) If your scanner has not already connected right click on the icon and select order to establish a Bluetooth link between the FocusBT scanner and your computer. Note: The FocusBT scanner should emit a connection tone and the blue light on the top of the unit should stop blinking indicating a connection has been established.
  • Page 24 “PortName” to select the scanner. Click to close the window. Bring up the Metrologic SoftWedge Utility by clicking the SoftWedge Icon in the Task Tray in the lower right hand side of the Desktop. This will bring up the SoftWedge Utility window.
  • Page 25 MS1633 FocusBT Connection Setup (Continued) Comm Port 34) In the Metrologic SoftWedge Utility window under select the COMM port your scanner is connected to. This port was established at the end of the “Add a New Connection Wizard” in the beginning of the FocusBT Connection Setup section.

  • Page 26: Testing Ms1633 Focusbt Scanner Connection

    Testing MS1633 FocusBT Scanner Connection To test your MS1633 FocusBT scanners Bluetooth connection open up Microsoft Notepad or Microsoft Word and scan the following barcode. If the barcode scans into the application then your scanners Bluetooth connection has been established.

  • Page 27: Metrologic Ms1633 Scanner Setup (Keyport For Bluetooth)

    Metrologic MS1633 Scanner Setup (Keyport for Bluetooth) Installing Keyport Bluetooth 1) Insert Keyport Bluetooth CD-ROM in your CD or DVD Drive. 2) Go to My Computer and double click on your CD or DVD Drive that corresponds to the Keyport Bluetooth CD-ROM.
  • Page 28 Installing Keyport Bluetooth (Continued) 6) The “Select Installation Folder” screen will appear. In the lower left hand corner of the screen under “Install Keyport for yourself or for everyone who uses this computer” Select “Everyone” Then click the button to continue. 7) The “Confirm Installation”...
  • Page 29 Installing Keyport Bluetooth (Continued) 8) At this point Keyport Bluetooth will be loaded on your computer. You will see the “Installing Keyport Bluetooth” screen and a progress bar. 9) When the installation is complete the “Installation Complete” screen will appear. Click button to exit the installer.
  • Page 30 Registering Keyport Bluetooth 10) From the menu select: All Programs Keyport Bluetooth Keyport Bluetooth.exe 11) This will bring up the Keyport for Bluetooth Application. Select the “Registration” tab at the top right of the window. 12) Fill out the registration information as requested on the screen. The serial number can be found on the Installation CD-ROM.

  • Page 31: Ms1633 Focusbt Connection Setup

    FocusBT scanner and allow it to boot completely. Three beeps will indicate the scanner is completely booted. Connections 14) To establish a connection with the MS1633 FocusBT scanner click the “ ” Discover tab and then click the “...
  • Page 32 MS1633 FocusBT Connection Setup (Continued) Note: The FocusBT scanner should emit a connection tone and the blue light on the top of the unit should stop blinking indicating a connection has been established. Click the OK button to close the window.

  • Page 33: Testing Ms1633 Focusbt Scanner Connection

    Testing MS1633 FocusBT Scanner Connection 16) To test your MS1633 FocusBT scanners Bluetooth connection, make sure the keyport for Bluetooth application is selected and scan the following barcode: Code 128 1 2 3 4 5 6 7 8 9 0 You should see the Keyport for Bluetooth automatically switch to the “Trace”...

  • Page 34: Setting Up The Scanner For Cerner Millennium Applications

    Setting up the Scanner for Cerner Millennium Applications Note: If you are not running Cerner Millennium applications skip this section. Horizontal TAB Scan the following barcodes to sets up the scanners suffix to a “ ” for most Cerner Millennium applications. If this does not work for your application try scanning the configuration barcodes for Cerner Classic.

  • Page 35: Symbology Selection

    Symbology Selection Scan the following bar codes in the order in which they appear. Enter/Exit Config Mode ³ 9 9 9 9 9 9 Enable RSS 14 ³ 1 0 0 4 1 3 No RSS 14 App ID ³ 1 1 4 9 1 1 No RSS 14 Sym ID ³...
  • Page 36 Symbology Selection (Continued) Enable ISBT 128 ³ 1 3 8 4 1 7 Enable Aztec ³ 1 0 0 6 1 0 Enable Data Matrix ³ 2 0 0 5 3 2 Enter/Exit Config Mode ³ 9 9 9 9 9 9 MS1633 Focus BT Scanner Installation Guide ©...

  • Page 37: Miscellaneous Optional Setup Procedures

    Miscellaneous Optional Setup Procedures Hands Free (Presentation) Mode To use the MS1633 scanner in presentation mode place the scanner in the presentation stand. Placing the scanner in the stand automatically configures the scanner into presentation mode. Once the scanner is in the stand and the IR sensor detects an object in the IR activation range the scanner’s light automatically starts to flash as it attempts to scan the bar code.

  • Page 38: Setting "Beep" Tone

    Setting “Beep” Tone To adjust the beepers frequency and volume scan the appropriate bar code(s). Normal ³ 3 1 8 5 7 5 Low Fequency ³ 3 1 8 5 2 5 Med Fequency ³ 3 1 8 5 7 5 High Fequency ³...

  • Page 39: Show Firmware Revision

    Show Firmware Revision Follow this procedure to display the firmware revision of your scanner. 1. Bring up Microsoft Word, WordPad or Notepad and make sure your curser is in the editors window. 2. Scan the following barcode. Scan Count Mode On ³...

  • Page 40: Sample Bar Codes

    Sample Bar Codes Use these bar codes to test your imager using Microsoft Word or WordPad. “Linear” Sample Bar codes Codabar Code 128 A 1 2 3 4 5 B 1 2 3 4 5 6 7 8 9 Code 39 (Normal) RSS-14 1 2 3 4 5 6 7 8 9 0 1 2 3 1 Code 39 (Full ASCII)

  • Page 41: "2D" Sample Bar Codes

    This is a sample of the 2D "Data Matrix" symbology. This symbology can store a lot of information in a small space. Metrologic MS1690 2D Scanner Installation Guide © Cerner Confidential and Proprietary All rights reserved. This document contains confidential information, which may not be...
