Installation

2.2 Installing the EPS

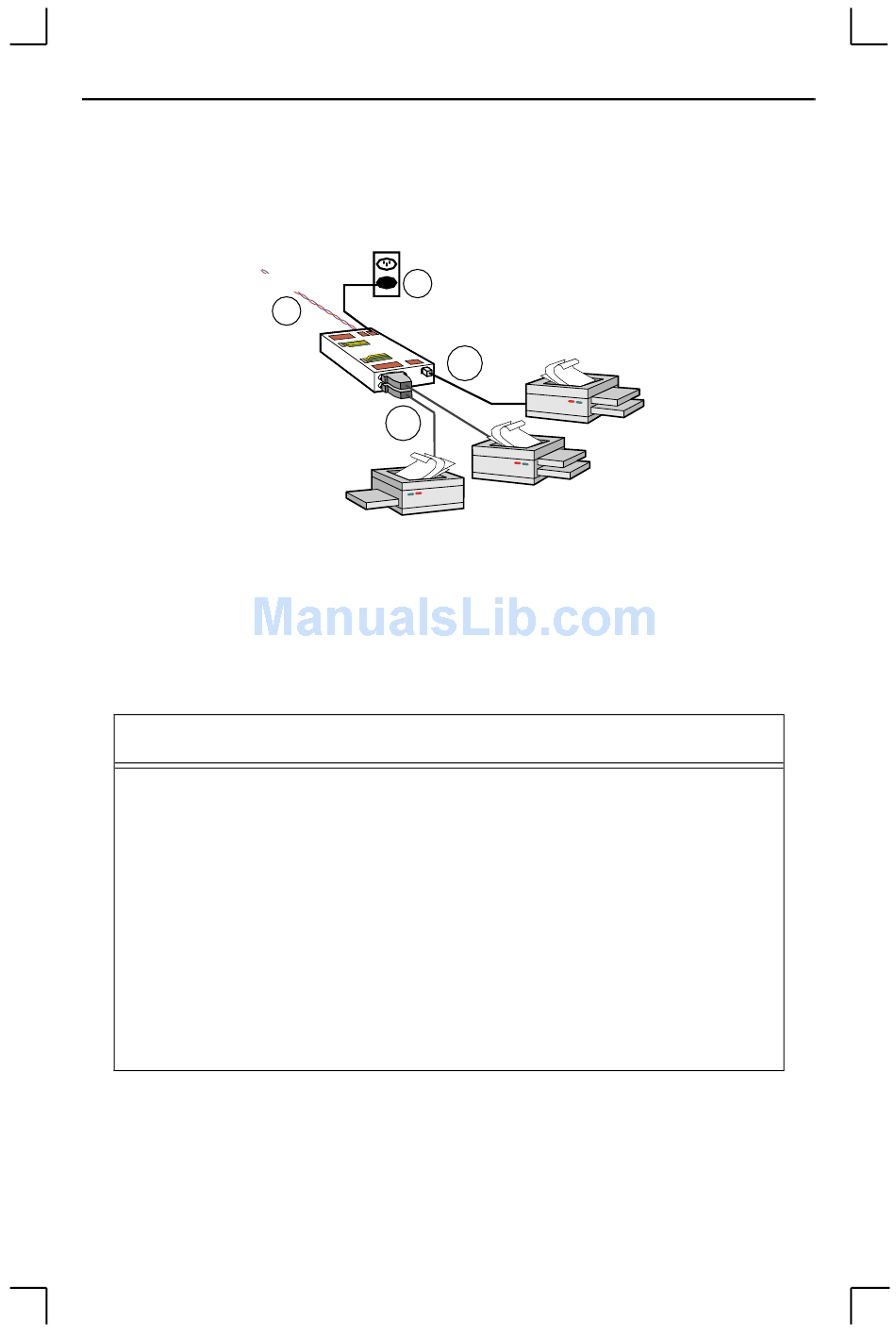

The following diagram shows a properly-installed EPS:
To install the EPS, complete the following steps in order. Refer to the numbers in the figure
for help.
1
Set the DIP switches on the bottom of the unit. Their functions are explained in Ta-
ble 2-2.
Switch Position 1
1 Factory NVR: EPS is restored to
factory defaults at power-up.
2 Silent Boot: The EPS does not print
any status information unless it can-
not boot.
3 Unused
4 AUI: The EPS uses the AUI network
interface.
Switches are only checked at power-up. Changing them while the unit
Note:
is operating will have no effect.
2
Connect at least one printer to the EPS using an available serial or parallel port.
4
10BASE-T
3
EPS2
2a
Table 2-2: DIP Switch Functions
Serial Printer
2b
Parallel
Printers
Position 0 (default)
Normal: Saved EPS settings are used
at power-up.
Verbose Boot: The EPS prints boot sta-
tus and PostScript-compatible test jobs
to the serial and parallel ports during
the boot sequence. (Recommended for
first-time setup)
Unused
10BASE-T: The EPS uses the
10BASE-T Ethernet interface.
Installing the EPS
2-3
