Lantronix MPS100 User Manual

Lantronix MPS100 User Manual

Mps/lps
Hide thumbs Also See for MPS100:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

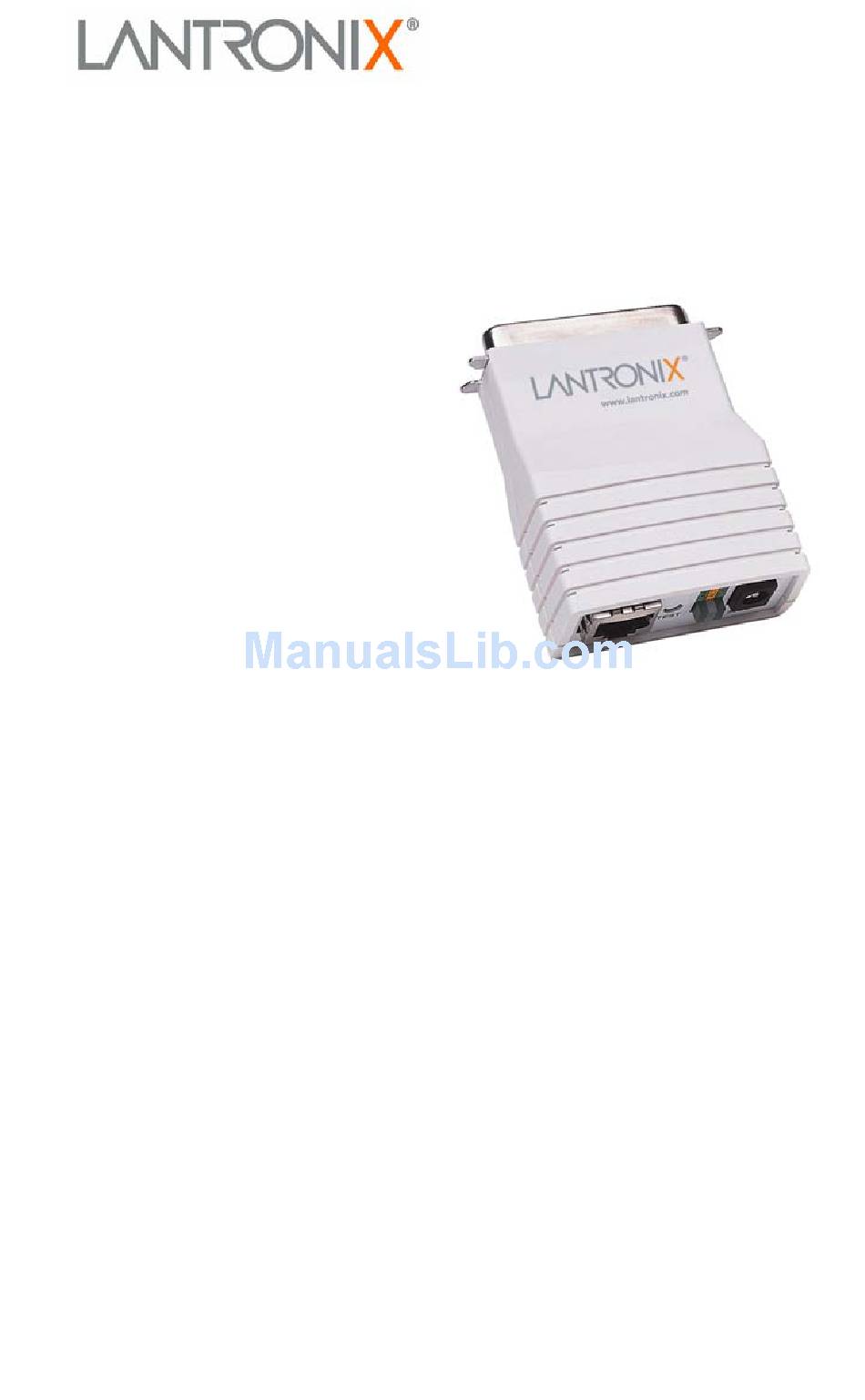

MPS/LPS User Guide
For the MPS100 and LPS1-T Print
Servers
Part Number 900-191
Rev. D March 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lantronix MPS100

Summary of Contents for Lantronix MPS100

  • Page 1 MPS/LPS User Guide For the MPS100 and LPS1-T Print Servers Part Number 900-191 Rev. D March 2004...

  • Page 3: Copyright And Trademark

    Copyright and Trademark © 2000-2004, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America.

  • Page 4: 1: Introduction

    Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.

  • Page 5: Table Of Contents

    Contents 1: Introduction How to use this manual_____________________________ 1-9 2: Installation MPS/LPS Product Description _______________________ 2-1 Installing the MPS _________________________________ 2-2 3: Getting Started Configuration Methods _____________________________ 3-1 EZWebCon __________________________________ 3-1 Incoming Logins_______________________________ 3-2 Services_________________________________________ 3-2 4: TCP/IP Configuration Setting the IP Address _____________________________ 4-1 Using EZWebCon _____________________________ 4-1 Using a Directed Ping Packet ____________________ 4-2 Using a BOOTP, DHCP, or RARP Reply ___________ 4-3...
  • Page 6 LAT Host Troubleshooting __________________________ 6-2 7: AppleTalk Configuration Bitronics ________________________________________ 7-1 Macintosh Services _______________________________ 7-1 AppleTalk Zones _________________________________ 7-2 AppleTalk Host Troubleshooting _____________________ 7-2 8: DLC Configuration for LAN Manager DLC Configuration ________________________________ 8-1 MPS Configuration ____________________________ 8-1 Host Configuration ____________________________ 8-1 A: Contact Information Problem Report Procedure__________________________ A-1 Full Contact Information ____________________________ A-1...
  • Page 7 Temperature _________________________________ E-2 Altitude ______________________________________ E-2 Relative Humidity ______________________________ E-2 F: Fequently Used Commands Conventions _____________________________________ F-1 Server Commands ________________________________ F-1 Port Commands __________________________________ F-7 Protocol Commands _______________________________ F-8 G: Warranty Statement H: Declaration of Conformity...

  • Page 9: List Of Figures

    List of Figures Figure 1: ARP and Ping on UNIX ___________________ 4-2 Figure 2: ARP and Ping on Windows ________________ 4-2 Figure 3: Configuring Permanent IP Address __________ 4-3 Figure 4: Adding /etc/hosts Entry ___________________ 4-7 Figure 5: Adding /etc/printcap Entry _________________ 4-8 Figure 6: Creating Spooling Directory________________ 4-8 Figure 7:...
  • Page 10 viii...
  • Page 11 List of Tables Table 1: Default Services_________________________ 3-2 Table 2: TCP Troubleshooting ____________________ 4-12 Table 3: NetWare Host Troubleshooting (Bindery Mode)_______________________________ 5-4 Table 4: NetWare Host Troubleshooting (NDS) _______ 5-4 Table 5: NDS Errors from the File Server ____________ 5-5 Table 6: NDS Printing Errors ______________________ 5-6 Table 7:...

  • Page 13: How To Use This Manual

    The Lantronix Print Servers (MPS100 and LPS1-T) are multi- protocol print servers that provide shared network access to printers for a variety of network protocols and operating systems. The MPS supports the TCP/IP, IPX (NetWare), Local Area Transport (LAT), AppleTalk, and LAN Manager protocols. The LPS supports TCP/IP, NetWare, and LAT.
  • Page 14 Appendix D: Updating Software Appendix E: Specifications Appendix F: Frequently Used Commands Read chapters 2 and 3 in order, then proceed to the protocol- specific chapter that relates to your network. Refer to Appendix F as needed. The Print Server Reference Manual, located on the CD-ROM and web site, provides additional information about configuring and using your MPS.

  • Page 15: Mps/Lps Product Description

    This chapter describes the various MPS models and shows how to install them into a basic network situation. MPS/LPS Product Description The front panel of the MPS100 has a Test button, three LEDs, a power connector, and an RJ45 connector for 100BASE-T. The rear panel has a Centronics connector.

  • Page 16: Installing The Mps

    MPS/LPS User Guide 2: Installation Installing the MPS The following diagram shows a properly installed MPS: To install the MPS, complete the following steps in order. Refer to the numbers in the figure for help. Connect the MPS Centronics connector directly to your printer’s connector.
  • Page 17 MPS/LPS User Guide 2: Installation Allow 45 seconds for the unit to fully boot. The LINK LED will be lit if there is a valid network connection. The ACT LED gives information about what the MPS is doing; for example, when code is being downloaded as the unit boots, the LED will blink green quickly.
  • Page 18 MPS/LPS User Guide 2: Installation...

  • Page 19: Configuration Methods

    EZWebCon requires a Java Virtual Machine (JVM) on the client. Lantronix provides JVM installers for Solaris and 32-bit Windows users, as well as source code and instructions for compiling it for other systems.

  • Page 20: Incoming Logins

    With few exceptions, you must use a service to configure print queues on the MPS. A service is a resource accessible to network hosts. A Lantronix service is also known as a remote printer name or remote queue name on many operating systems.
  • Page 21 MPS/LPS User Guide 3: Getting Started The default service names are based on the server name; therefore the server name must be no more than 13 characters. If you change the server name, the service names will change as well. For example, changing the server name from MPS_xxxxxx to BIOLAB will change the service names to BIOLAB_TEXT and so The default serial port services have the TCP/IP, NetWare, LAN...
  • Page 22 MPS/LPS User Guide 3: Getting Started...

  • Page 23: 4: Tcp/Ip Configuration

    The EZWebCon configuration software is the easiest way to configure the MPS. The following sections cover IP address configuration and print configuration methods for TCP/ IP hosts. Setting the IP Address The MPS IP address must be configured before any TCP/IP functionality is available.

  • Page 24: Using A Directed Ping Packet

    MPS/LPS User Guide 4: TCP/IP Configuration Using a Directed Ping Packet The ARP/ping method is available under UNIX and Windows-based systems. If the MPS has no IP address, it will set its address from the first directed ping packet it receives. On a UNIX host, create an entry in the host’s ARP table and substitute the intended IP address and the hardware address of the MPS, then ping the MPS.

  • Page 25: Using A Bootp, Dhcp, Or Rarp Reply

    MPS/LPS User Guide 4: TCP/IP Configuration Figure 3: Configuring Permanent IP Address % telnet 192.0.1.228 Trying 192.0.1.228 Lantronix MPSx Version n.n/n (yymmdd) Type Help at the ‘Local_>’ prompt for assistance. Enter Username> gopher Local> SET PRIVILEGED Password> system (not echoed) Local>>...

  • Page 26: Lpr On Windows Nt/2000/Xp (And Later)

    MPS/LPS User Guide 4: TCP/IP Configuration the banner page at the beginning of the printout, install and use the RTEL software. If banners are not needed, they can be disabled. The MPS cannot print multiple copies of the print job when using the -#n lpr option.
  • Page 27 MPS/LPS User Guide 4: TCP/IP Configuration Select LPR Port. Note: If LPR Port is not an option, open the Network Control Panel and add Microsoft TCP/IP Printing to the List of services. Enter the name or IP address of your MPS on the first line, and enter the name of your MPS print service on the second line.
  • Page 28 MPS/LPS User Guide 4: TCP/IP Configuration Enter the queue name. If applicable, choose Shared and select the type of operating system that the printer will be working with. (First confirm that the print queue is working.)

  • Page 29: Lpr On Windows 95/98

    LPR on Windows 95/98 To enable LPR printing on Windows 95/98, you must install the LPR for Windows 95/98 application from the supplied product CD. Install Lantronix LPR. Follow the directions in the readme file to configure LPR on your PC.

  • Page 30: Lpr On Aix Hosts

    MPS/LPS User Guide 4: TCP/IP Configuration Figure 5: Adding /etc/printcap Entry mps_prt|Printer on LAB MPS:\ :rm=MPS_xxxxxx:\ :rp=MPS_xxxxxx_TEXT:\ :sd=/usr/spool/lpd/mps_prt: This will create a host queue named mps_prt. The rm parameter is the name of the MPS in the host’s /etc/hosts file, the rp parameter is the name of the service as it exists on the MPS, and the sd parameter specifies the name of a directory on the host used to hold temporary spooling files.

  • Page 31: Figure 8: Printing To Queue

    MPS/LPS User Guide 4: TCP/IP Configuration In the Start the Print Server Subsystem dialog box, type both in the first field. When the message The lpd subsystem has been started appears, click Done. To add a print queue: From the main window, choose Print Spooling. Choose Manage Print Server and Manage Print Queues.

  • Page 32: Lpr On Hp Hosts

    MPS/LPS User Guide 4: TCP/IP Configuration LPR on HP Hosts The System Administration Manager (SAM) allows you to create print queues. Note: If you are unable to use SAM, the Print Server Reference Manual located on the CD-ROM describes UNIX commands that can be used to set up print queues.

  • Page 33: Figure 9: Configuring Remote Printer

    MPS/LPS User Guide 4: TCP/IP Configuration You can print to this queue using normal lp syntax once the remote printer is set up. To create a remote printer: Issue the rlpconf command. Answer the questions that follow. Figure 9: Configuring Remote Printer Remote Printing Configuration Enter information for remoteprintersor local printers accepting remote...

  • Page 34: Rtel Functionality

    If the LPR method of printing is not adequate for an application (for example, if you need banners before jobs, or more flexibility), configure the Lantronix-supplied RTEL software on the host. After installing the software configuring the connections to the MPS, you can use normal UNIX print commands and queue utilities such as lpc and lpstat.

  • Page 35: 5: Netware Configuration

    NetWare chapter of the Print Server Reference Manual located on the CD-ROM. NDPS Printing Lantronix Terminal and Print Servers support Novell’s NDPS for printing using the Novell NDPS Gateway. For instruction on setting up NDPS, refer to your Novell documentation. Lantronix also provides information on setting up NDPS in our FAQs on our support web site (http://www.lantronix.com/support/).

  • Page 36: Netware Administrator Quick Setup Print Queues

    MPS/LPS User Guide 5: NetWare Configuration Figure 11: Defining Directory Service Tree Local>> DEFINE PROTOCOL NETWARE DSTREE foodco Note: For an explanation of the structure of the NetWare Directory Service tree, see your host documentation. Define the directory service context in which the MPS is located.

  • Page 37: Pconsole Print Queues

    MPS/LPS User Guide 5: NetWare Configuration To create a print queue with the Quick Setup option: Start the NetWare Administrator. In the Directory Tree windows, select the context in which to install the printer. From the Menu Bar, select Tools: Print Services Quick Setup.

  • Page 38: Netware Host Troubleshooting

    MPS/LPS User Guide 5: NetWare Configuration NetWare Host Troubleshooting Table 3: NetWare Host Troubleshooting (Bindery Mode) Area to Check Explanation The print server names in Use PCONSOLE to check. PCONSOLE match the MPS name and its service name The MPS NetWare access Use the Show Protocols NetWare table Access command.

  • Page 39: Table 5: Nds Errors From The File Server

    MPS/LPS User Guide 5: NetWare Configuration Area to Check Explanation Printer and queue changes It may take a few minutes for the changes have propagated through the to propagate. If the MPS doesn’t attach, NDS tree reboot the MPS. Table 5: NDS Errors from the File Server Code Meaning Remedy...

  • Page 40: Table 6: Nds Printing Errors

    NetWare access list. 2, 3 Unexpected response Report the problem to Lantronix from file server Technical Support. No printers found for Ensure that there are printers for the the MPS MPS, and the printer names match the service names on the MPS.

  • Page 41: 6: Lat Configuration

    The EZWebCon configuration software is the easiest way to configure the MPS. The following sections cover print configuration methods for LAT hosts. Note: The MPS needs an IP address before you can use EZWebCon. See Setting the IP Address on page 4-1 for instructions.

  • Page 42: Lat Host Troubleshooting

    MPS/LPS User Guide 6: LAT Configuration Print to the queue. Figure 17: Printing to Queue $ PRINT/QUEUE=queue_name filename.txt LAT Host Troubleshooting By default, the LAT error message codes on the host are not translated into text error messages. If a LAT job fails and appears in the queue with an eight-digit hex result code, the code can be translated by issuing the following commands: Figure 18: Translating LAT Error Codes...

  • Page 43: 7: Appletalk Configuration

    The EZWebCon configuration software is the easiest way to configure the MPS. The following sections cover print configuration methods for AppleTalk hosts. Note: The MPS needs an IP address before you can use EZWebCon. See Setting the IP Address on page 4-1 for instructions.

  • Page 44: Appletalk Zones

    MPS/LPS User Guide 7: AppleTalk Configuration AppleTalk Zones If there is a router on the network, the MPS will appear in the default zone specified by the router. To change the default zone use the Define Protocol AppleTalk Zone command. If the MPS is attached to a network without an AppleTalk router, all AppleTalk devices (including the MPS) will appear in the default zone in the Chooser.

  • Page 45: Dlc Configuration

    The EZWebCon configuration software is the easiest way to configure the MPS. This chapter explains DLC/Digital Network Port configuration for Windows NT 4.x hosts. Note: The Server needs an IP address before you can use EZWebCon. See Setting the IP Address on page 4-1 for instructions.
  • Page 46 8: DLC Configuration for LAN Manager MPS/LPS User Guide Enter the MPS hardware address. It is printed on the MPS bottom label. Select Job-based. Select the manufacturer and printer type. Enter the queue name. If applicable, choose Shared and select the operating system the printer will be working with.

  • Page 47: A: Contact Information

    If you are experiencing an error that is not listed in Appendix B: or if you are unable to fix the error, contact your dealer or Lantronix Technical Support at 800-422-7044 (US) or 949-453-7198. Technical Support is also available via Internet email at http://ltxfaq.custhelp.com.
  • Page 48 MPS/LPS User Guide A: Contact Information...

  • Page 49: Power-Up Troubleshooting

    This Appendix discusses how to diagnose and fix errors quickly yourself without having to contact a dealer or Lantronix. When troubleshooting, always ensure that the physical connections (power cable and network cable) are secure. If you have trouble with wireless networking, it may help to connect the MPS to a wired Ethernet network to verify that it is working properly and to check the wireless settings.

  • Page 50: Table 10: Power-Up Problems And Error Messages

    Note the blinking LED and complete power-up indicates a hardware its color, then contact your diagnostics. fault. One of the LEDs dealer or Lantronix will be solid red for Technical Support. The three seconds, MPS will not be followed by one...

  • Page 51: Dhcp Troubleshooting

    MPS/LPS User Guide B: Troubleshooting DHCP Troubleshooting Table 11: DHCP Troubleshooting Area to Check Explanation DHCP is enabled on the Use the Set Server DHCP Enabled command. If you manually enter an IP address, DHCP is automatically disabled. Be sure the DHCP server Check that the DHCP server is on and is is operational.

  • Page 52: Rarp Troubleshooting

    MPS/LPS User Guide B: Troubleshooting RARP Troubleshooting Table 13: RARP Troubleshooting Area to Check Explanation The MPS name and The MPS name and hardware address must be hardware address in in this file for the host to answer a RARP the host’s request.

  • Page 53: Postscript Problems

    MPS/LPS User Guide B: Troubleshooting Area to Check Explanation Queue Status and Port Use the Monitor Queue command to counters ensure queue entries appear in the job list. Use the Monitor Port 1 Counters command to verify that the counter is incrementing with each job.

  • Page 54: Bitmap Graphics

    MPS/LPS User Guide B: Troubleshooting Area to Check Explanation Port Counters If PostScript jobs appear to print but nothing comes out of the printer, verify the amount of data sent from the host. Issue the appropriate print command from the host system. After the job has completed, use the Show Port 1 Counters command.

  • Page 55: C: Pinouts Ethernet Connector

    Ethernet Connector Figure 20: RJ45 Ethernet Connector Parallel Connectors Lantronix uses standard Centronics parallel connectors.
  • Page 56 MPS/LPS User Guide C: Pinouts...

  • Page 57: D: Updating Software Obtaining Software

    Current software files (MPS100.SYS for MPS100, LPS.SYS for LPS1-T) are available on the distribution CD. You can obtain software updates and release notes for the MPS from the Lantronix Web site (www.lantronix.com), or by using anonymous FTP through the Internet (ftp.lantronix.com).

  • Page 58: Reloading Software

    MPS/LPS User Guide D: Updating Software Reloading Software The MPS stores software in Flash ROM to control the initialization process, operation, and command processing. The contents of Flash ROM can be updated by downloading a new version of the operational software via NetWare, TCP/IP, or MOP. Regardless of which protocol is used to update Flash ROM, the following points are important: The Flash ROM software file name, MPS100.SYS, should...

  • Page 59: Figure 22: Configuring Tcp/Ip Reload

    MPS/LPS User Guide D: Updating Software Note: EZWebCon can also be used to reload software. If a host provides DHCP, BOOTP, or RARP support, it can be used to set the MPS IP address. Some BOOTP and TFTP implementations require a specific directory for the MPS100.SYS file.

  • Page 60: Troubleshooting Flash Rom Updates

    MPS/LPS User Guide D: Updating Software Figure 23: Configuring NetWare Reload Local> SET PRIVILEGED Password> SYSTEM (not echoed) Local>> DEFINE SERVER NETWARE LOADHOST fileserver Local>> DEFINE SERVER SOFTWARE SYS:\LOGIN\MPS.100SYS Local>> INITIALIZE RELOAD The MPS100.SYS filename is the only parameter that the MPS needs to reload via MOP.
  • Page 61 MPS/LPS User Guide D: Updating Software Protocol Area to Check The Ethernet circuit must have the service characteristic enabled. Ensure that the MOM$LOAD search path includes the directory containing the MPS100.SYS file.
  • Page 62 MPS/LPS User Guide D: Updating Software...

  • Page 63: E: Specifications

    Power Information Power Requirements Voltage MPS100: 120VAC 50/60 Hz or 120 to 220VAC 50/60 Hz (International version) LPS1-T: 120VAC 50/60 Hz or 120 to 220VAC 50/60 Hz (International version) Frequency: 47-63 Hz Operating Current: MPS100: 800 mA (maximum) @ 5V Reg. DC LPS1-T: 700 mA (maximum) @ 6V Power Consumption:...

  • Page 64: Environmental Limitations

    MPS/LPS User Guide E: Specifications Environmental Limitations Temperature Operating range: 5° to 50° C (41° to 122° F) Storage range: -40° to 66° C (-40° to 151° F) Max temp. change/hr: 20° C (36° F) Rapid temperature changes may affect operation.

  • Page 65: Conventions

    This appendix lists some of the most frequently used commands of the Print Server command set. More information about the command set, including additional options, can be found in the Print Server Reference Manual located on the CD-ROM. Conventions Please note the following before continuing: Commands are divided into Server (general), Port, and Protocol sections.
  • Page 66 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Enables incoming LAT and BOTH Telnet connections. Enables only incoming LAT connections. NONE Disables incoming connections. DEFINE SERVER TELNET Enables only incoming INCOMING option Telnet connections. Causes the MPS to prompt PASSWORD for a password for all incoming connections.
  • Page 67 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Specifies the NetWare host DEFINE SERVER NETWARE LOADHOST server from which the MPS requests its run-time code. Enter a file server name of up to 11 characters. Sets a new password that DEFINE SERVER PRIVILEGED PASSWORD will be required for privileged...
  • Page 68 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Toggles whether the named DEFINE SERVICE APPLETALK “name” option {EN/DIS} service can be used to service networks running the specified protocol. RTEL LANMAN applies to TCP/IP networks. {EN/DIS} {EN/DIS} NETWARE {EN/DIS} RTEL {EN/DIS}...
  • Page 69 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description When enabled, causes the POSTSCRIPT {EN/DIS} MPS to assume the attached device is a PostScript device and act accordingly. When enabled, causes the PSCONVERT {EN/DIS} MPS to place a PostScript wrapper around each text job.
  • Page 70 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Forces the MPS to download RELOAD new operational code and reprogram its flash-ROM. LOGOUT option Logs out the current port <nothing> (the port that issued the command). Logs out the specified port. PORT num PURGE SERVICE LOCAL...

  • Page 71: Port Commands

    MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Zeroes all port, node, and ZERO COUNTERS option server counters. PORT num Zeroes port counters for the specified port. Port Commands Table 18: Port Commands Command Option(s) Description When enabled, ensures DEFINE PORT 1 BITRONICS {EN/DIS} bidirectional functioning...

  • Page 72: Protocol Commands

    Enables or disables the option LAT protocol for the MPS. Enables LAT on multi- LICENSE string port MPS’s. Enter the license string obtained from Lantronix. Enables or disables the DEFINE PROTO {EN/DIS} NETWARE option NetWare (IPX) protocol for the MPS.
  • Page 73 DSLICENSE Configures the NetWare string Directory Services license needed to enable NDS on your MPS. Enter the license string obtained from Lantronix. Configures the NetWare DSTREE string Directory Services tree in which the MPS is located. For more information about NDS trees, see your NDS documentation.
  • Page 74 MPS/LPS User Guide F: Frequently Used Commands Command Option(s) Description Displays operating {SHOW/MONITOR} PROTO protocolname characteristics of the specified protocol. F-10...
  • Page 75 Lantronix warrants for a period of ONE year from the date of shipment that each MPS100 and LPS1-T Print Server supplied shall be free from defects in material and workmanship. During this period, if the customer experiences difficulties with a product and is unable to resolve the problem by phone with Lantronix Technical Support, a Return Material Authorization (RMA) will be issued.

  • Page 76: G: Warranty Statement
