4-3 PLL CIRCUITS

4-3-1 PLL CIRCUIT (MAIN UNIT)
A PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.
The PLL circuit contains the TX and RX VCO circuits (Q16,
Q17, D9–D11, D13, D500, D501). The oscillated signal is
amplified at the buffer amplifier (Q15). The output signal fre-
quency is doubled at Q14, and is then applied to the PLL IC
(IC21, pin 6) after being passed through the bandpass filter
(L32, C205, C507).
Q500, D502 and D503 switch the filtering frequencies
between TX and RX which is controlled by R5V.
The PLL IC contains a prescaler, programmable counter,
programmable divider and phase detector, etc. The applied
signal is divided at the prescaler and programmable counter
section by the N-data ratio from the CPU. The divided signal
is detected on phase at the phase detector using the refer-
ence frequency.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.

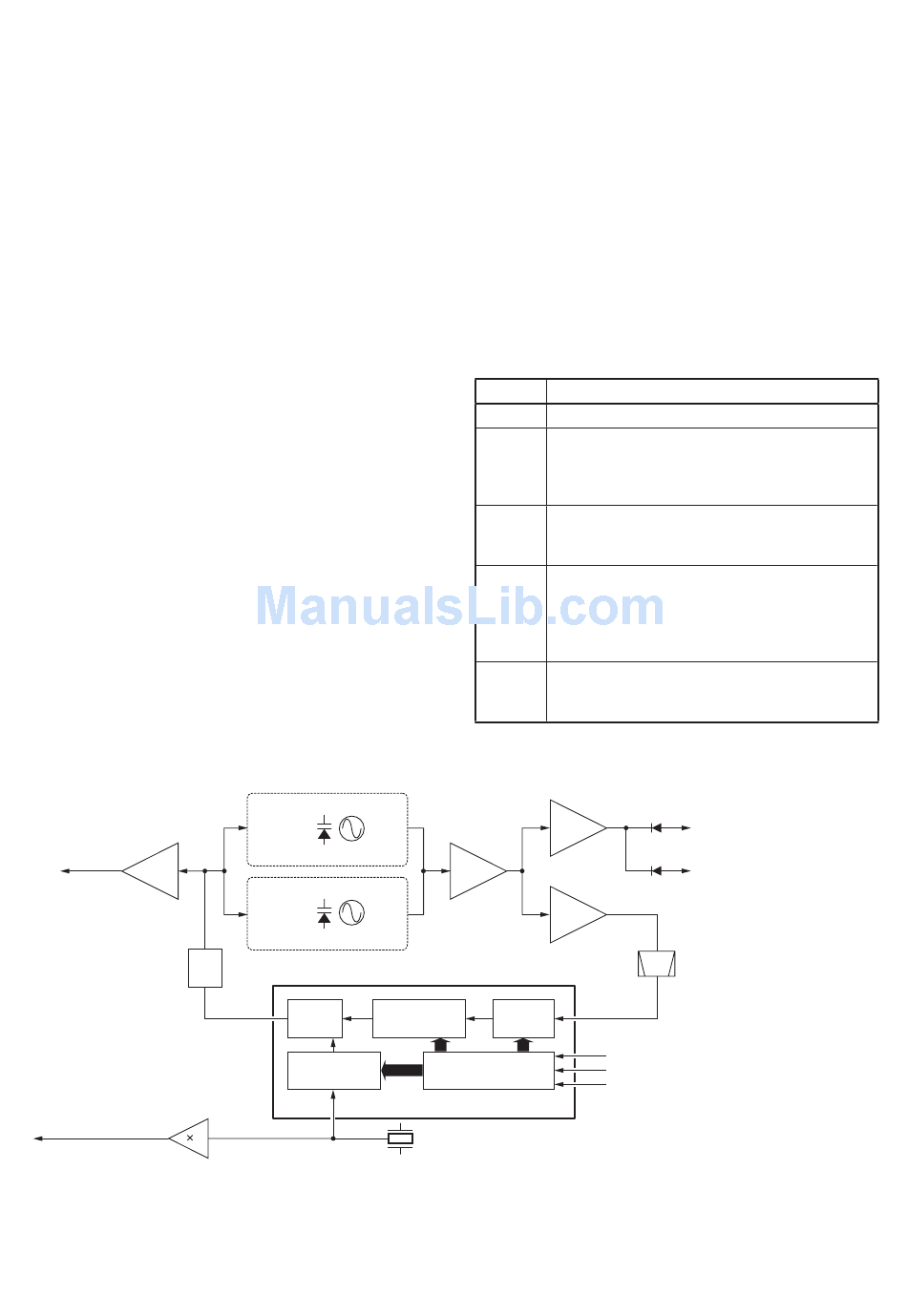

• PLL CIRCUIT
Buffer
Q21
"LVIN" signal
to the CPU
(IC22, pin 49)
Loop
filter
45.9 MHz 2nd LO
signal to the FM IF IC
Tripler
(IC9, pin 2)
3
Q22
RX VCO
Q17, D9, D11, D500
TX VCO
Q16, D10, D13, D501
Phase Programmable
4
detector counter
Programmable
divider
10
15.3 MHz
4-3-2 VCO CIRCUITS (MAIN UNIT)
The VCO circuits contains a separate RX VCO (Q17, D9,
D11, D500) and TX VCO (Q16, D10, D13, D501). The oscil-
lated signal is amplified at the buffer amplifiers (Q15, Q29)
and is then applied to the T/R switch (D16, D17). Then the
receive 1st LO (Rx) signal is applied to the 1st mixer (Q6)
and the transmit (Tx) signal to the YGR amplifier circuit (PA
unit; Q704).
A portion of the signal from the buffer amplifier (Q15) is fed
back to the PLL IC (IC21, pin 6) via the doubler circuit (Q14)
as the comparison signal.
4-4 POWER SUPPLY CIRCUIT
4-1-1 MAIN UNIT VOLTAGE
LINE
VCC The voltage from the connected battery pack.
Common 5 V converted from the VCC line at the
+5 regulator circuit (IC17). The output voltage is
+5V
supplied to the buffer amplifiers (Q21), PLL IC
(IC21) etc.
Common 5 V converted from the VCC line at the
S5V S5 regulator circuit (Q26–Q28). The output volt-
age is supplied to the ripple fi lter (Q20), etc.
Receive 5 V converted from the S5V line at the
R5 regulator circuit (Q25). The output voltage is
R5V supplied to the tripler (Q22), FM IF IC (IC9), IF
amplifi er (Q7), 1st mixer (Q6), RF amplifi er (Q5),
etc.
Transmit 5 V converted from the S5V line at the
T5V T5 regulator circuit (Q24). The output voltage is
supplied to the APC amplifi er (IC2), PA unit, etc.
Buffer
Q29
Buffer
Q15
×2
Q14
IC21 LMX2352
6
Prescaler
14
15
Shift register
16
X2
4 - 4
DESCRIPTION
D17
to 1st mixer circuit
D16
to transmitter circuit
BPF
SCK
SO
PLST
