Polycom KIRK Wireless Server 2500 Installation Guide
10

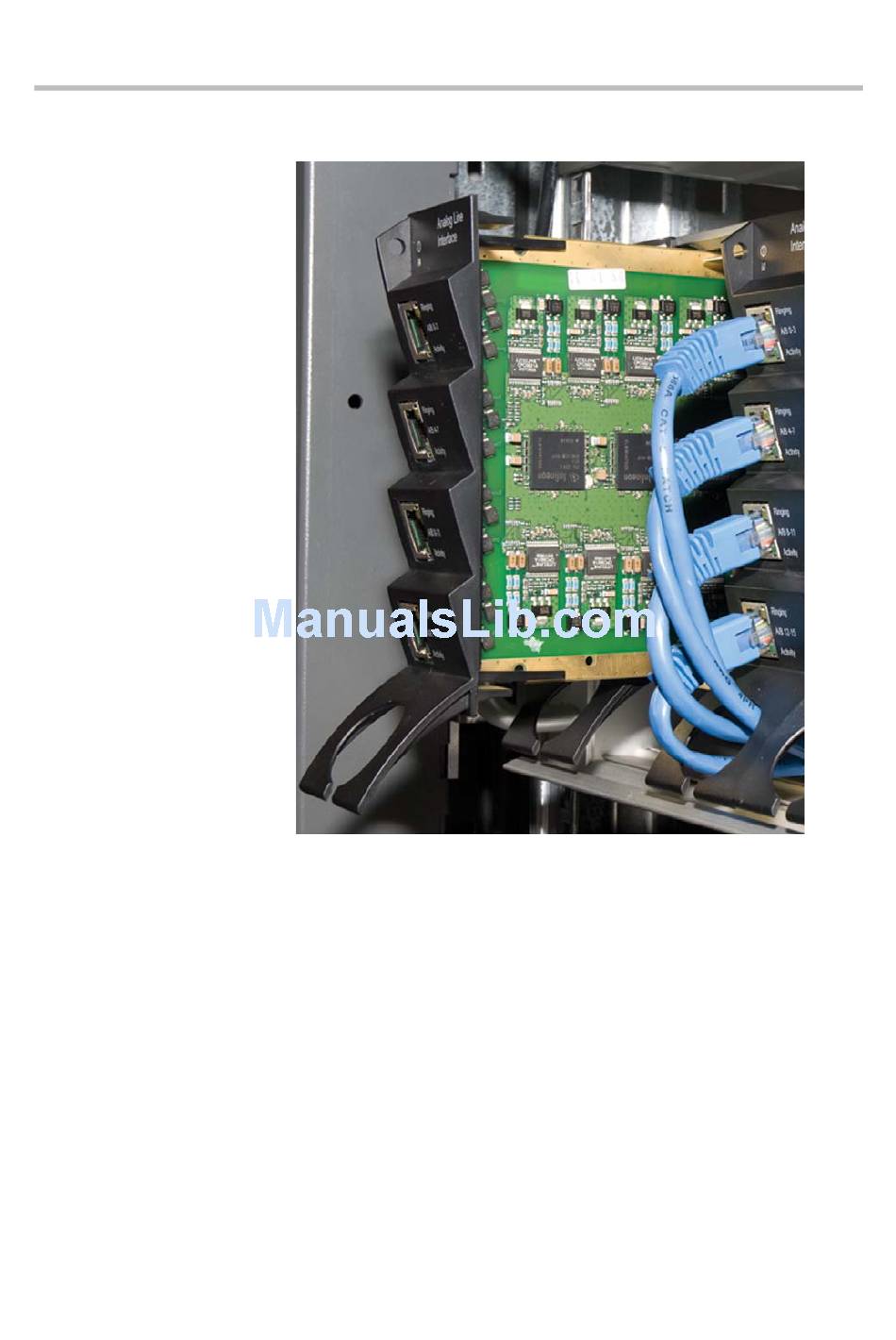

Figure 1-5 Installing Interface Cards
Plug the interface cables into the card as described in
2
Interface Cables"
To Install CPU Cards
Ensure that the KWS2500 is powered off completely.
1
With two hands, gently slide the card into the unit. Give the card a gentle
2
push on the last centimeter so that it enters the backplane connector
properly.
Avoid pushing on the front connectors - push only on the plastic parts at
the top and bottom.
on page 11.
Installing the KWS2500
"Connecting
