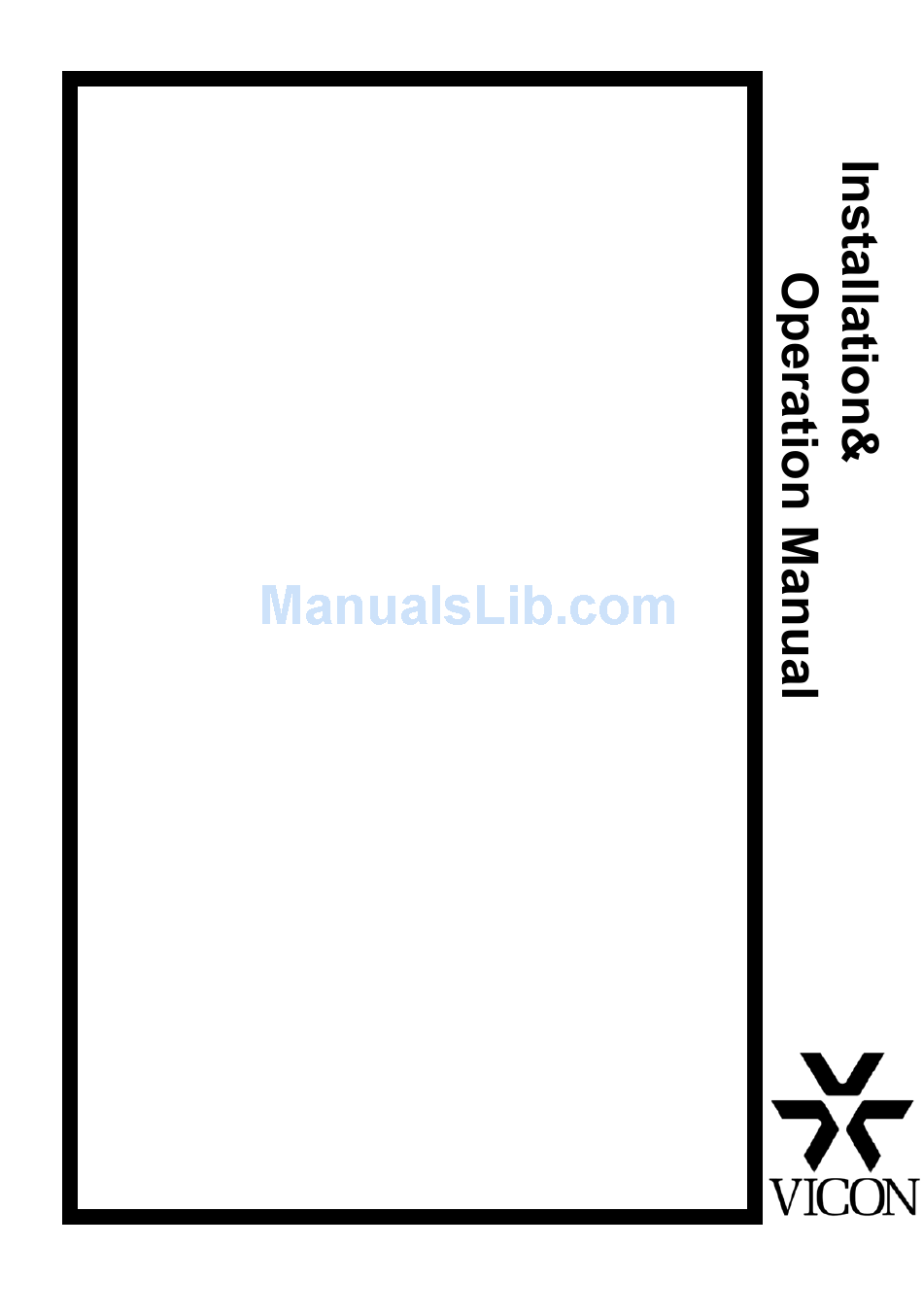

Page 1
IX 4000 L, IX 4000 H Colour Camera Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or that the operation will be entirely error free or perform precisely as discribed in the documentation. This system has not been designed to be used in life critical situations and must not be used for this purpose.
Dear Customer! By selecting this VICON product you have chosen a professional device which guarantees highest possible quality and reliability. We like to thank you very much for your confidence in our products and kindly ask you to read the following instructions carefully before commissioning the product in order to be able to take full advantage of all quality features regarding this product line.
GENERAL INFORMATION General Information Safety Precautions * Read these instructions carefully before commissioning the camera in order to avoid damages caused by improper installation or use. * Installation may only be carried out by authorised personnel according to the local safety regulations.
COMMISSIONING THE CAMERA Commissioning the Camera Tips for Camera Location 1.0 To avoid internal overheating: - never expose the camera to direct sunlight without additional camera housing - keep sufficient distance to direct heat sources. 2.0 Never install the camera at humid, oily or dusty locations without using an additional housing.
COMMISSIONING THE CAMERA Adjustment of Back Focus This adjustment should only be carried out, if the lens cannot be focused properly using the lens focus ring. For such a case proceed as follows: 1 Loosen the Allan head screw with the attached Allan head key.
COMMISSIONING THE CAMERA Focusing the Camera Lens After you have selected the correct picture detail you have to adjust the lens focus. The focus adjustment needs to be done with the iris fully open, since the camera has the smallest depth of focus in this position. If the focus adjustment was not done with the iris completely open, the picture would be sharp during the day but slowly getting out of focus the more the light disappears.
COMMISSIONING THE CAMERA Circuit points and operation 1. Lens connector 2. Menu buttons DC - Lens 1. Controll - 2. Controll + 3. Drive+ 4. Masse Attention: This camera comes with a four times electronic zoom. With the buttons Ý(Tele) and ß(Wide) you can operate the zoom function.
COMMISSIONING THE CAMERA Rear View Rear View IX 4000H Rear View IX 4000L V-Phase V-Phase Control Control AC 24V/ DC12V 1. Auto Shutter / DC Lens 2. LL Phasen adjust 3. Control (Remote) Connector 4. Video Out 5. Power input Remote Jack PC Interface Belegung:...
COMMISSIONING THE CAMERA Camera Configuration Menu: GENERAL CAMERA ID 000 ~ 255 ZONE LABEL NEGA/POSI POSITIV / NEGATIV SHARPNESS 0 ~ 15 MIRROR NORMAL, MIRROR, VERTIKAL, ROTATE FREEZE ON, OFF INITIAL ON, OFF EXIT WB MODE AUTO, HOLD, USER RED CONT NOT USE (AUTO, HOLD), 1 ~ 255 USER BLUE CONT NOT USE (AUTO, HOLD), 1 ~ 255 USER...
COMMISSIONING THE CAMERA Setting Up The Menu Press the MENU button to access the GENERAL mode. Chage menu Point using the UP and Down buttons. Change the status us- ing the the LEFT / RIGHT buttons. General CAMERA ID ZONE LABEL NEGA/POSI POSI SHARPNESS...
Page 12
COMMISSIONING THE CAMERA WB MODE AUTO RED CONT NOT USE BLUE CONT NOT USE PUSH AUTO NOT USE INITIAL EXIT WB MODE: The following „White Balance“ functions can be selected: AUTO: White Balance is automatically set between 2500°K~9500°K HOLD: If PUSH AUTO is selected as ON, it fixes up the value setting the current WB USER: Manual WB.
Page 13
COMMISSIONING THE CAMERA AGC MAX SET: OFF: AGC deactivated LOW: Gain is increased or decreased from 0 to 10dB automatically according to the illumination. MID: Gain is increased or decreased from 0 to 20dB automatically according to the illumination. High: Gain is increased or decreased from 0 to 30dB automatically according to the illumination.
Page 14
COMMISSIONING THE CAMERA WDR MODE WDR LEVEL BACK LIGHT BLC LEVEL INITIAL EXIT WDR MODE: ON / OFF WDR LEVEL: This value sets the level of the WDR regulation. 0 ~ 15 Ranged and adjust the brightness in WDR Mode. BACK LIGHT: ON / OFF BLC LEVEL:...
Page 15
COMMISSIONING THE CAMERA END X: Indicates the ending point on X axis. START Y: Indicates the starting point on Y axis. END Y: Indicates the ending point on Y axis. INITIAL: INITIAL PRIVACY MODE EXIT: RETURN to MAIN MENU Display CAMERA ID ZONE LABEL VERSION...
EXHIBIT Exhibit Troubleshooting Error Cause No picture No operating voltage (check red LED) Coaxial connection interrupted (check video cable) The picture is noisy Insufficient light The lens drive of the used lens (DC / AI) is not properly adjusted to the camera (level too low) The picture is too bright The lens drive of the used lens (DC / AI) is not properly adjusted to the camera (level too high)
CLEANING AND CARE & TECHNICAL SUPPORT Cleaning and Care Before you start to clean the camera body, disconnect the unit from power supply. For reasons of electrical safety never clean the camera with water or other liquid matters and never put the camera under water. To clean use a soft dry cloth. Cleaning the camera inside is strictly forbidden and may only be done by your authorised dealer.
Shipping Instructions: Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
Page 20
Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppage, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO 15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office...
