IX 8000 IR
Colour Camera
Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or
that the operation will be entirely error free or perform precisely as discribed in the documentation. This system
has not been designed to be used in life critical situations and must not be used for this purpose.
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and ist logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24- Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: vicon-cctv.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vicon IX 8000 IR
Summary of Contents for Vicon IX 8000 IR

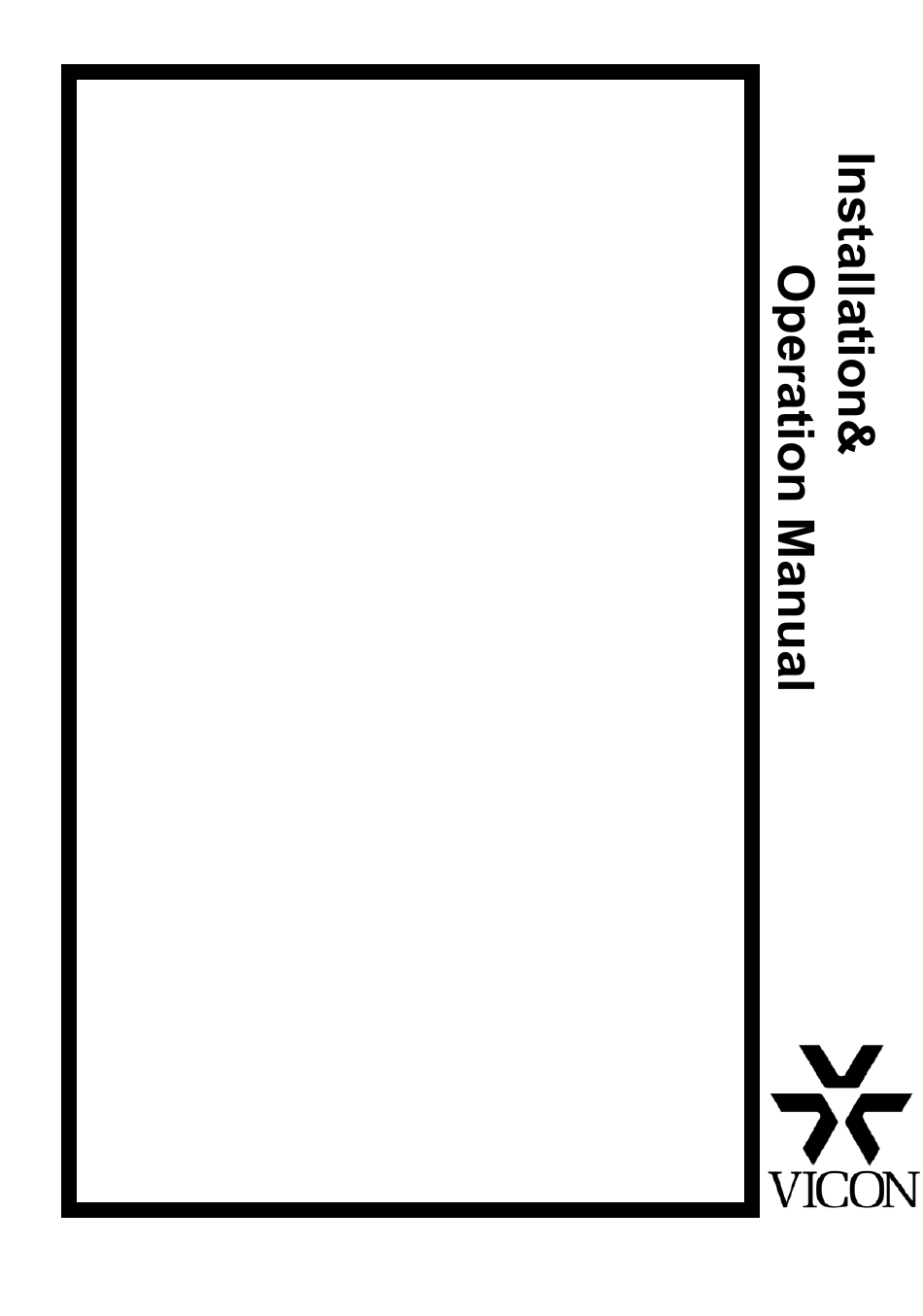

- Page 1 IX 8000 IR Colour Camera Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or that the operation will be entirely error free or perform precisely as discribed in the documentation. This system has not been designed to be used in life critical situations and must not be used for this purpose.
-
Page 2: Table Of Contents
Dear Customer! By selecting this VICON product you have chosen a professional device which guarantees highest possible quality and reliability. We like to thank you very much for your confidence in our products and kindly ask you to read the following instructions carefully before commissioning the product in order to be able to take full advantage of all quality features regarding this product line. -
Page 3: General Information
TIPS FOR CAMERA LOCATION General Information Safety Precautions · Read these instructions carefully before commissioning the camera in order to avoid damages caused by improper installation or use. · Installation may only be carried out by authorised personnel according to the local safety regulations. -
Page 4: Tips For Camera Location
TIPS FOR CAMERA LOCATION Tips for Camera Location 1.0 To avoid internal overheating: never expose the camera to direct sunlight without additional camera housing keep sufficient distance to direct heat sources. 2.0 The camera should be installed out of reach (min. height: 2.30 m) 3.0 Do not aim the camera towards indoor lighting, the windows, the sunlight or the sky (to get good pictures, camera and light should be aimed towards the object) wrong... -
Page 5: Dimensions Of The Camera
CONNECTION AND MOUNTING THE CAMERA Dimensions of the Camera... -
Page 6: Connecting The Camera
CONNECTION AND MOUNTING THE CAMERA Connecting the Kamera Video output 12V DC 24V AC Note: Polarity doesn’t play a role when connected to 12V DC... -
Page 7: Internal Adjustments
INTERNAL ADJUSTMENTS Internal Adjustments Open the camera by turning front part of the camera Adjustmensts of the Camera: · Zoom (1) · Focus (2) · DC Level (3) The default settings are ideal. Only in very special situations it can be necessary to change this adjustments. -
Page 8: Technical Specifications
TECHNICAL SPEZIFICATION Technical Specifications Model IX 8000 IR CCD SENSOR 1/3“ Sony Super HAD 470.000 Effective Pixels Resolution 550 TV Linien (Colour), 570 TV Linien (S/W) Signal system Sampling process 625 Zeilen, 2:1 Interlace Sampling rate (H) 15.625 Hz Sampling rate (V) - Page 9 NOTES Cleaning and Care Before you start to clean the camera body, disconnect the unit from power supply. For rea- sons of electrical safety never clean the camera with water or other liquid matters and never camera under water. clean soft cloth.
- Page 10 NOTES -10-...
- Page 11 Shipping Instructions: Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
- Page 12 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppage, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO 15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office...
