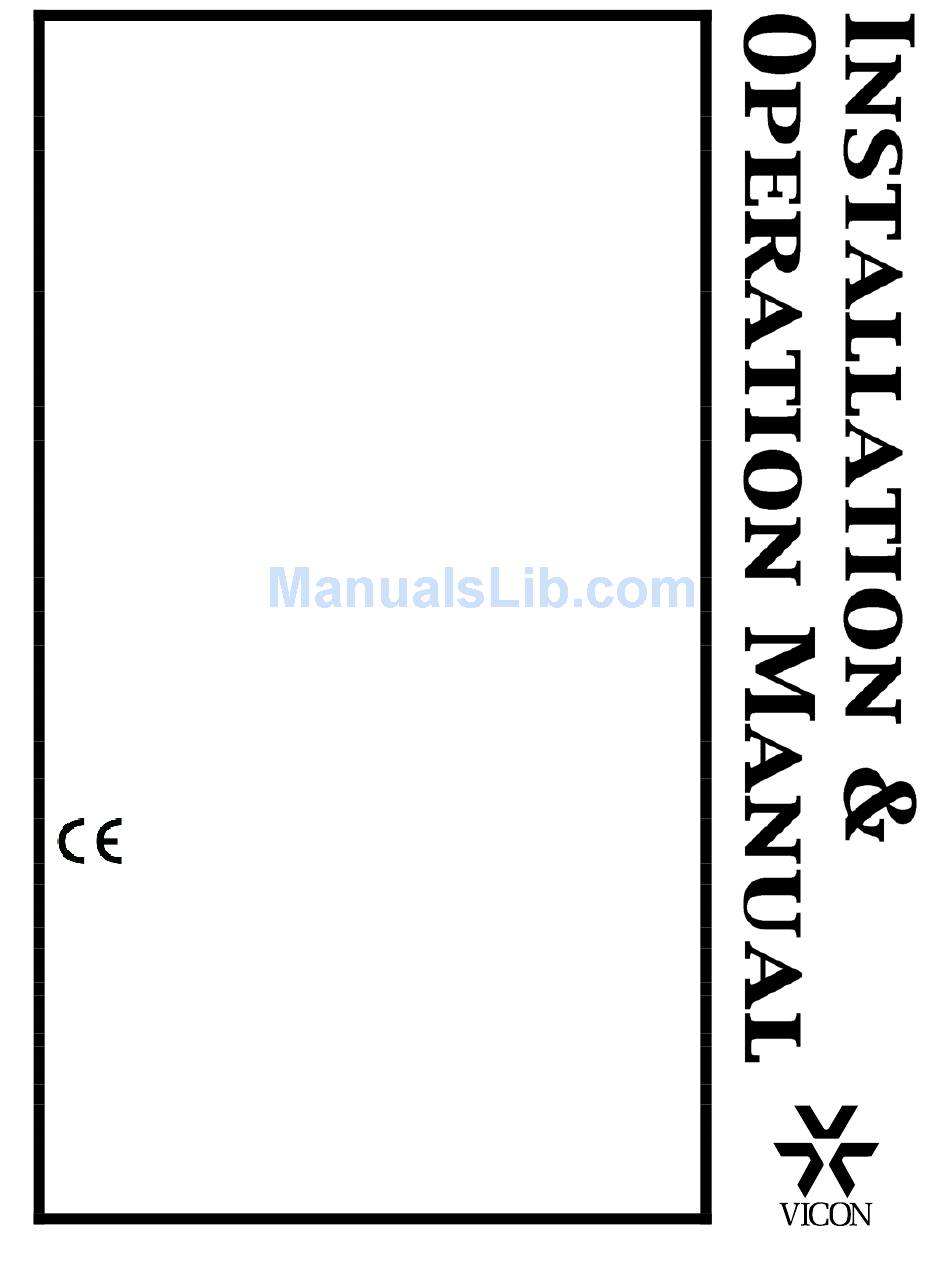

Vicon SVR-C Installation And Operation Manual

Vicon surveyor-mini camera dome series

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Surveyor-Mini Camera Dome Series

Warning: To reduce a risk of fire or electric shock, do not expose

indoor units to rain or moisture.

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your

requirements or that the operation will be entirely error free or perform precisely as described in the

documentation. This system has not been designed to be used in life-critical situations and must not be

used for this purpose.

Product specifications subject to change without notice.

Vicon and its logo are registered trademarks of Vicon Industries Inc.

Surveyor, ViconNet and Kollector are registered trademarks and NOVA and Vicoax are trademarks of Vicon Industries Inc.

VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788

TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266)

UK: 44/(0) 1489-566300

Vicon part number 8009-8203-20-01

XX203-20-01

Quick Guide for

WEB: www.vicon-cctv.com

Rev 710

Table of Contents

Need help?

Do you have a question about the SVR-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon SVR-C

Page 1 Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. Surveyor, ViconNet and Kollector are registered trademarks and NOVA and Vicoax are trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788...
Page 3: Important Safeguards - Outdoor Use
The product shows a significant change in performance. 6. Attachments - Use only UL Listed Vicon recommended attachments to prevent unit damage and personal injury. 20. Replacement Parts - Use only Vicon specified replacement 7.
Page 4: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
Page 5 ViconNet software. Video from the camera is available to all network recorders and workstations for live view and recording. Audio input capability is available on the ViconNet/H.264 versions. The Surveyor-Mini also provides video transmission over coaxial cable. Additionally, the Vicon Surveyor-Mini camera dome can be used in conjunction with competitive PTZ drivers through DIP switch selection.
Page 6 Clear SVR-SW-O-C 9904-51 Open Platform H.264 Power Table Power* Current Rating Model Number Coax Coax SVR-C/ SVR-CC 12.1 SVR-P/ SVR-PC 12.1 SVR-W/ SVR-WC SVR-S/ SVR-SC 12.1 SVR-SW/SVR-SWC *Power @ 24 VAC. 6 • Introduction XX203-20-01 Rev 710 Surveyor-Mini Camera Dome System...
Page 7: Accessory Kits
Accessory Kits There are different accessory kits included with the different configurations of Surveyor-Mini, Coaxial, ViconNet and H.264 IP versions. These kits provide the necessary items for installation as follows: Coaxial Description Quantity 8-position terminal block 4-position terminal block 2-position terminal block Video interconnect cable Torx bit Documentation CD and Quick Guide...
Page 8: Quick Installation - In-Ceiling Model
Installation Choose the installation type (In-Ceiling, Indoor or Outdoor Pendant, Indoor or Outdoor Surface-Mount). Refer to the Connection illustrations that follow and Installing the cables section for wiring details and DIP switch details. Be sure to set the DIP switches before completing installation. Quick Installation –...
Page 9 Quick Installation – Indoor/Outdoor Pendant Installation • 9 XX203-20-01 Rev 710 Surveyor-Mini Camera Dome System...
Page 10 Quick Installation – Indoor/Outdoor Surface Mount 10 • Installation XX203-20-01 Rev 710 Surveyor-Mini Camera Dome System...
Page 11 Connections Use the following diagrams to make connections. Refer to Tables 2A and 2B as needed. Note: Audio is not currently available on the H.264 version. In-Ceiling Connections, Coaxial and IP Versions Installation • 11 XX203-20-01 Rev 710 Surveyor-Mini Camera Dome System...
Page 12 Note: Audio is not currently available on the H.264 version. Pendant and Surface Mount Connections, Coaxial and IP 12 • Installation XX203-20-01 Rev 710 Surveyor-Mini Camera Dome System...
Page 13 Wiring Warning: Disable the AC power to prevent installer injury and damage to the unit. Coaxial Version Wiring 1. Remove terminal blocks from the accessory kit. The 2-pin is for power, the 8-pin is for alarm and control/relay and the 4-pin is for video. 2.
Page 14 IP Versions Wiring Note: The in-ceiling version and the surface mount/pendant versions have different board configurations. The in-ceiling version of the ViconNet model provides a module card for some connections; the open platform version includes a module card and an adapter board for some connections. The surface mount and pendant versions include an I/O option board for connections in addition to what is in the in- ceiling versions.
Page 15 CONNECTOR/PIN NUMBER CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME TERMINAL BLOCK VIDEO (TB4) TB4-1 VIDEO OUT (white wire) Video output TB4-2 Not used TB4-3 Not used TB4-4 Ground GND (black wire) TERMINAL BLOCK POWER (TB2) TB2-1 TB2-2 TERMINAL BLOCK COMM/ALARM (TB3) TB3-1 COMM IN + Command in +...
Page 16 CONNECTOR/PIN NUMBER CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME TERMINAL BLOCK POWER (TB2) TB2-1 TB2-2 Neutral TERMINAL BLOCK ALARM (TB1) TB1-1 ALARM 1 Alarm input 1 TB1-2 Ground TB1-3 Alarm output ALARM OUT TB1-4 Ground TERMINAL BLOCK ALARM (TB3) (In-Ceiling only) TB3-1 TB3-2 TB3-3...
Page 17: Setting The Dip Switches
Setting the DIP Switches This section defines how to set DIP switches. SW1 is on the Main Board, used for addressing; the DIP switch used for configuration is accessible on the side of the housing. DIP Switch Location DIP Switch Label Address DIP Switch SW1 Installation •...
Page 18: Software Features
Programming the Surveyor-Mini Programming is done by selecting options from the on-screen menu system. Once the on-screen menu system is accessed, programming is done using the AP (autopan), AI (autoiris), joystick and AUX1/AUX2 functions. The cursor wraps around when moving up and down. The following is a description of these controls: select and store parameters;...
Page 19 programming of each autotour event. This is described in greater detail in the Preset/Tour Handling menu section. Preset 90 (Pan/Tilt Lockout) — Storing preset 90 will disable joystick control of that dome, and the message Pan/Tilt Disabled will momentarily appear on the screen. Any time the joystick is moved, the message will reappear.
Page 20: Programming Menus
• To set the autopan limits — When a continuous rotation dome is in autopan, it will rotate in a full circle until autopan is disabled. When an application, such as a wall-mounted camera on a building, does not require continuous rotation, limits are set to define the left and right boundaries. Storing preset 98 will bring up a series of prompts to set the left and right autopan limits with the AUX 2 and AUX 3 keys.
Page 21 Install Defaults — Resets the Surveyor-Mini to the factory default settings. All previously programmed titles and settings are lost when this function is accessed, so keep a record of programmed settings. The main default settings are listed in the Install Defaults section. Installation •...
Page 22: Vicon Standard Equipment Warranty
Vicon Security Management Systems (SMS) All Models: All hardware is warranted for two years from date of original retail purchase. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
Page 23: Corporate Headquarters
Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
