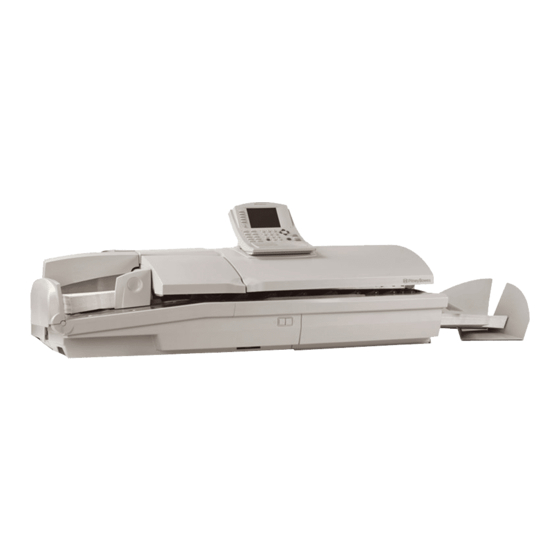

Pitney bowes dm800/900 digital mailing system
Hide thumbs Also See for DM800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
DM800/900 Digital Mailing System

Quick Reference Guide

Canada English Version
Exterior
Components

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pitney Bowes DM800

Summary of Contents for Pitney Bowes DM800

  • Page 1: Quick Reference Guide

    DM800/900 Digital Mailing System Quick Reference Guide Canada English Version Exterior Components...

  • Page 2: Exterior Components

    Exterior Components Main Cover E-Z Seal Bottle Cover Feeder Wall Back Stop IntelliLink Control Centre Side Guide Memory Card (Not on DM900) Feed Deck Adapter Quick Reference Guide Wet/Dry Tape Lever Feed Cover Tape Exit...
  • Page 3 Thickness Adjustment Roll Tape Knob Sealer Printhead Lever Assembly Feed Release Tabs Feeder Release Lever Envelope Wiper Blade Release Assembly Main Lever Ink Cartridge Interior Components...
  • Page 4 Control Centre Key to Select 5 Screen Keys The five keys directly to the left of the display screen allow you to select options on the screen. Lock Button Locks the IntelliLink Control Centre when pressed. Normal Preset Key Returns you to the factory default setting and quickly clears your current mail job allowing you to reset your processing modes, class selection, etc.
  • Page 5 Funds Keys Allows you to: • Get information about funds used in a job • Add funds to your system • Enter new refill amounts • Get Postage By Phone balance ® Reports Key Gives you the option of the type of report you want to run.
  • Page 6 • Press Done using the arrow key. • Place envelopes in the feeder deck. • Adjust the side guide to the width of the envelopes (DM800 Only). Press Start. For complete operating instructions, see the Operator Guide. Note: Processing mail requires a combination of a weight entry for the mail piece (Attached Scale, Manual Weight Entry, Weigh-on-the-Way™) and a class selection to calculate the accurate postage.

  • Page 7: Processing Mail

    For Flats: • Lower the Back Stop. • (Model DM800 Only) Move the Side Guide close to but not touching the stack of envelopes. Raise the Side Guide to allow very large envelopes to be fed under it. Processing Mail...
  • Page 8 Processing Mail (Cont.) 2. Adjust Feeder Lift the feed Cover to access the Thickness Adjustment Knob. For Letter Mail: • Turn the Thickness Adjustment Knob to position for most business envelopes. Very thin envelopes and airmail may feed better with the knob turned to position 1.

  • Page 9: Troubleshooting

    Removing Misfeed Troubleshooting • Lift Feed Cover. Jam in Transport • Lift the Main Cover and follow the directions on the label for removing the stalled piece or pieces. Lift Main release lever until the entire transport is • Lift feeder release lever raised.
  • Page 10 627-8 WARNING! You must use only ink cartridges supplied by Pitney Bowes. The use of any other ink cartridges will void your warranty and maintenance agreement. AW19588 Rev C 03/06 ©2006 Pitney Bowes Inc. All Rights Reserved Printed in U.S.A.
