Sun Oracle SPARC T4-1 Getting Started Manual page 3

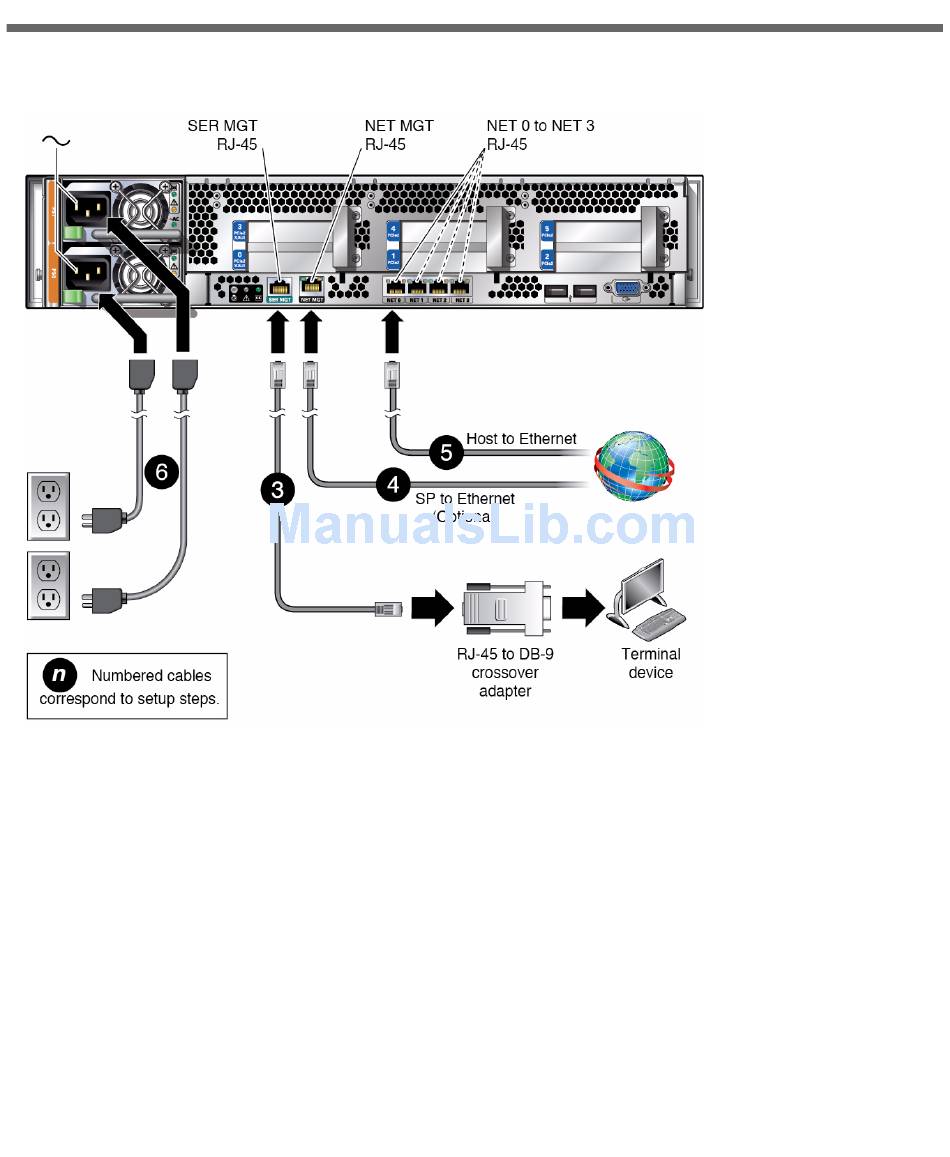

Server Connections
FIGURE 1
4. (Optional) Connect an Ethernet cable between the server's NET MGT port and the network to which
future connections to the SP and host will be made.
Configure the system for the first time through the SER MGT port. After the initial configuration, you can set
up communication between the SP and host through this Ethernet interface.
5. Connect an Ethernet cable between one of the server's NET ports and the network to which the server
will communicate.
6. Connect the power cords to the power supplies and to separate power sources.
Connect the server's power supplies to separate power sources to provide power redundancy. The system
can operate with one power connection, but having only one power source reduces the redundancy.
When the power cords are connected, the SP initializes and the power supply LEDs illuminate. After a few
minutes, the SP login prompt displays on the terminal device. At this time, the host is not initialized or
powered on.
3
