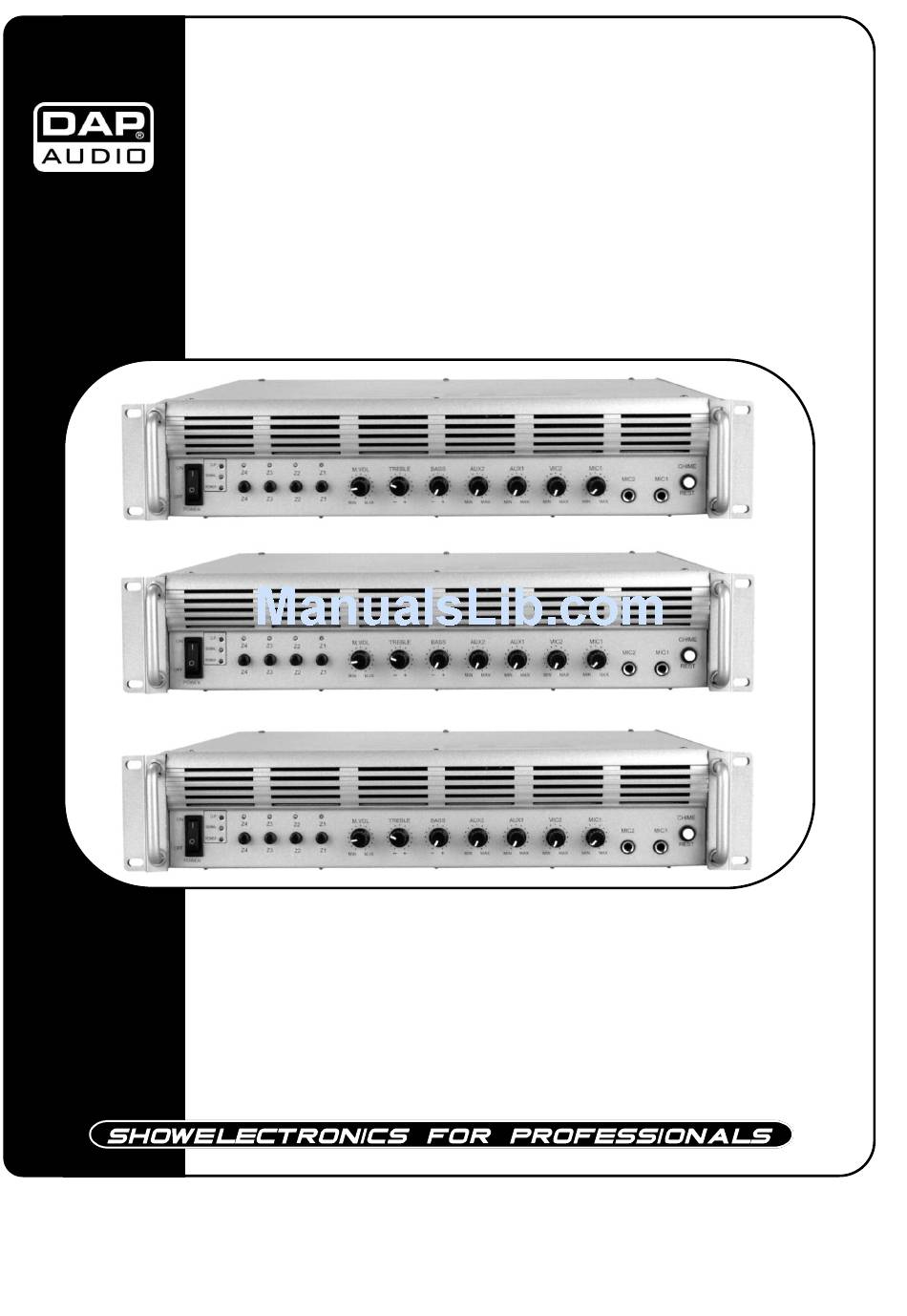

- Page 1 Palladium VPA series v2 VPA-060 ORDERCODE D4141 VPA-150 ORDERCODE D4142 VPA-250 ORDERCODE D4143...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio VPA series brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Dap Audio Dap Audio Palladium VPA- series Product Guide ™ Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..…................……….…………………………………...... Features..................................Frontside………………………………………………………………………………….……...…........Backside…….……………………………………………………………………………………….……...…..... Installation............……..……………………………….………………………....... Set Up and Operation..............……..…………………………….……....Connection Cables......…........………..………….…….………….…...... Maintenance...................………..………….…….……………....... Troubleshooting................………………….………………….…......Product Specifications..............……………….…….…………………....... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 7: Description

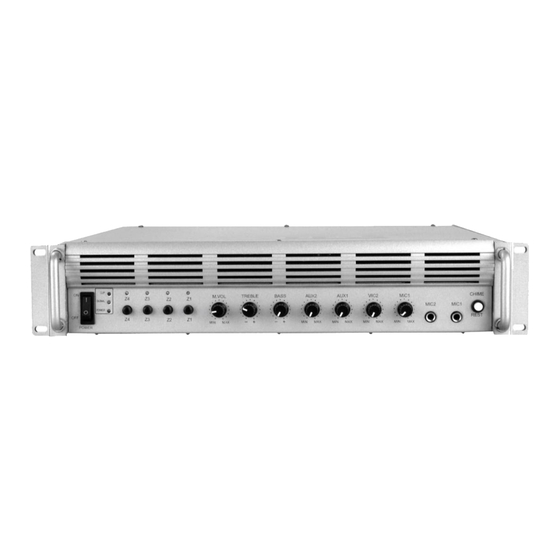

Description of the device Features The Palladium VPA is a 100V amplifier from DAP Audio. There are 3 different versions: VPA-060, VPA-150, VPA-250. VPA-060 VPA-150 VPA-250 60 Watt 150 Watt 250 Watt Overview Frontside Fig. 1 1) ON/OFF 8) Aux 1 Control... -
Page 8: Installation
Installation Palladium VPA series II Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 9 Indicators The Palladium features 3 front LED indicators per channel: Clip, Signal and Power. These LED indicators inform the user of each channel’s operating status and warn of possible abnormal conditions. Clip LED A channel’s red clip LED will light dimly at the onset of clipping and increase in brilliance, as clipping becomes more severe, staying on until the clipping ceases.
-
Page 10: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Maintenance
Maintenance The Dap Audio Palladium VPA series requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 12: Product Specifications
Product Specifications Specification VPA-060 VPA-150 VPA-250 Power (RMS) 150W 250W Frequency Response 100 Hz -16KHz Output Regulation Less than 3dB, no load to full load Speaker Output 8 Ω, 70V, 100V Aux Ouput 600 Ω, 1V (0dB) Inputs Mic 1, 2 / 600 Ω, 2,0 mV (-54dBV) Unbalanced Aux 1, 2 / 10 KΩ, 250 mV (-10dBV) Unbalanced... - Page 13 2010 Dap Audio.
