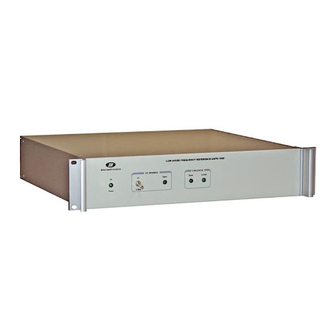

- Page 1 PECTRADYNAMICS OISE REQUENCY EFERENCE LNFR-100E PERATING ANUAL PECTRADYNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
- Page 2 Fourier frequency of 10 Hz and –168 dBc/Hz @ Fourier frequency greater than 10 kHz. The LNFR-100E outputs are matched to 50 ohms to obtain better than 25 dB return loss. The LNFR-100E can be phase locked via an electrical tuning port or by providing an external 10 MHz reference.
-
Page 3: Safety And Preparation For Use
Line Voltage This instrument can be setup to operate on 110-120 or 220-240 VAC and a line frequency of 50 to 60 Hz. For conversion to a different line voltage please contact SDI. Fuse A 1.0-Ampere 250V slow blow fuse is used in this instrument for 110-120 VAC line voltage. -
Page 4: The Front Panel
The Front Panel Power The LED is on when power is applied to unit and the unit is operating properly. External Reference Signal The LED is on when a 10 MHz reference is applied to the tuning port and the reference select switch is in the 10 MHz position. DC/10 MHz Tuning mode select switch used to change from DC tuning mode to 10 MHz external PLL mode. -
Page 5: The Back Panel
+/- 5VDC tuning voltage. 10 MHz Outputs J1 – J4 Type N output connector providing the 10 MHz output signals. AC Power Entry Module The LNFR-100E is factory configured to operate on 110 to 120 VAC. Copyright © SpectraDynamics, Inc. 2006... -
Page 6: Operation
LNFR-100E. The tuning port sensitivity is 0.5 Hz/Volt and the frequency modulation bandwidth is approximately 300 Hz. In the 10 MHz position the LNFR-100E will phase- lock to a 10 MHz signal provided at the tuning port. The external reference signal level must be between +7 dBm and +15 dBm for proper operation. - Page 7 Replace all hermetic covers when done adjusting the frequency of the oscillators. Replace the top cover of the LNFR-100E. Note: The LNFR-100E should be turned on for 1 hour prior to any mechanical frequency adjustment. Copyright © SpectraDynamics, Inc. 2006...
-
Page 8: Specifications
Specifications LNFR-100E Specifications PARAMETER CONDITIONS UNITS Output Level 50 ohm load Output Impedance Return Loss @ 10 Harmonic Distortion 50 ohm load Isolation output to output Temperature Stability 0 - 50 ºC +/- 5x10 Mechanical Tuning +/- 1x10 Electrical Tuning... -
Page 9: Warranty
This warranty shall be in effect for one (1) year from the date an LNFR-100E is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. SDI’s obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay.
