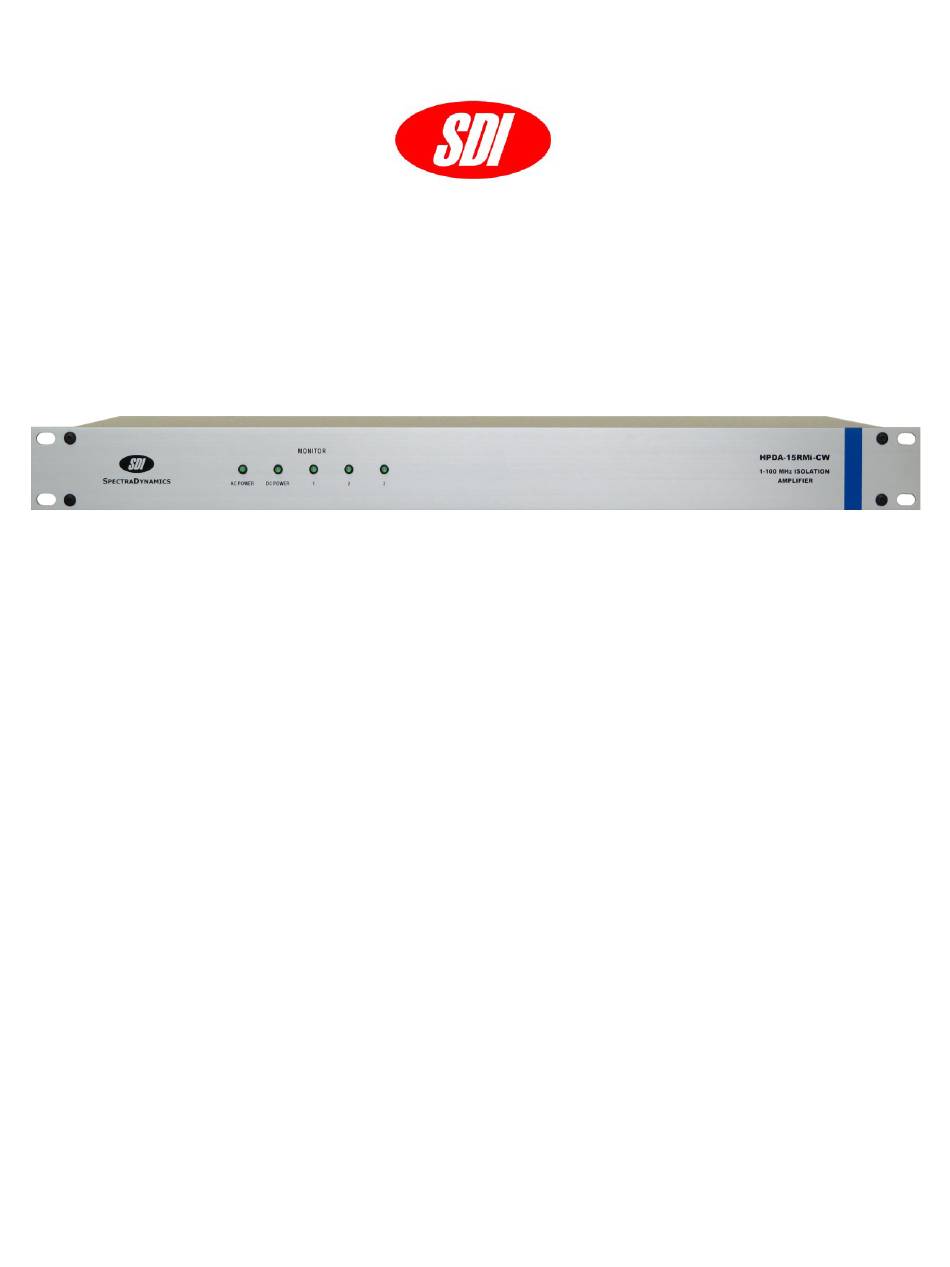

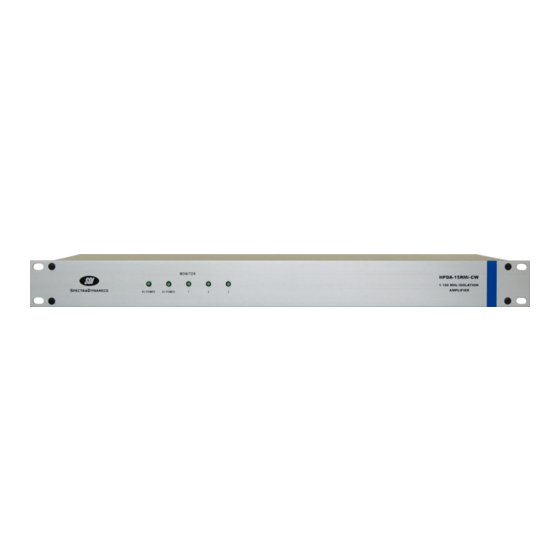

- Page 1 PECTRA YNAMICS HPDA-15RMi-CW 1-100 MHz ISOLATION AMPLIFIER OPERATING MANUAL SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2 • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
- Page 2 HPDA-15RMi-CW 1-100 MHz Isolation Amplifier Operating Manual Copyright © 2022 SpectraDynamics, Inc. All rights reserved. HPDA-15RMi-CW:R02-2022-MD/FA...
-
Page 3: Table Of Contents
Contents Introduction ……………………………………………………………………..1 Safety and preparation for use ………………………………..……….…….. 2 2.1 Electrical ……………….…………………………………………….……. 2 2.2 Instrument ……..…………….………………………………….….…….. 3 Front panel description …….…………………………………………….…… 4 Back panel description ………………………………………………….……. 5 Installation ……………………………………………………………….…….. 6 Operation ……………………………………………………………………… Troubleshooting ………………………………………………………………. 8 Specifications …………………………………………………………………. 9 Warranty and service …………………………………………………………... -
Page 5: Introduction
The HPDA-15RMi-CW is designed to be powered by a 100 to 240 VAC mains source and/or by a +12 to +36 VDC power source. The DC power may be used as a main power source for the instrument or in conjunction with the AC power as a backup power supply in case of loss of the main AC power. -
Page 6: Safety And Preparation For Use
2.0 Safety and Preparation for Use The HPDA-15RMi-CW was designed for indoor use only and is not intended for operation outdoors or in a wet environment. The instrument may be mounted in a standard 19-inch instrumentation rack or may be used on a laboratory bench. -
Page 7: Instrument
2.2 Instrument Safety and Preparation for Use The HPDA-15RMi-CW is designed to distribute RF signals with a frequency of 1 to 100 MHz. The recommended level for the RF input signal is 0 dBm to +15 dB. Input signals must be kept below +20 dBm as greater power levels will damage the unit and void all warranties. -
Page 8: Front Panel Description
100 MHz signals. RF signal levels less than the threshold will trigger a fault condition and the monitor LED will not light up. However the HPDA-15RMi-CW will still provide five buffered copies per distribution module of the RF input signal on the back panel. -
Page 9: Back Panel Description
This instrument may also operate on DC power from +12 to +36 VDC as the main power supply. When the HPDA-15RMi-CW is set up to operate with both AC and DC power sources at the same time the DC power is used as backup power in case of AC power outages. -
Page 10: Installation
5.0 Installation 5.1 Connecting power The HPDA-15RMi-CW may be mounted in a standard 19-inch instrument rack or may be operated on a laboratory bench. The instrument ships with a standard North American, European, or Chinese IEC power cord and a RM12BPE-6S(81) DC connector . -
Page 11: Operation
The HPDA-15RMi-CW is designed to distribute signals from 1 MHz to 100 MHz. The RF input has a 50 ohm input impedance. Provide a signal within the mentioned frequency range to the any of the SMA connectors available on the back panel labeled INPUT. -
Page 12: Troubleshooting
If any fuse is blown replace with same type and rating. Please contact SDI if the any of the fuses blow again or if the event that caused the fuse to blow is not known. -
Page 13: Specifications
8.0 Specifications HPDA-15RMi-CW HPDA-15RMi-C1W HPDA-15RMi-C2W HPDA-15RMi-C3W PARAMETER CONDITIONS UNITS Bandwidth +/- 1 dB 1 - 100 1 - 100 Impedance Input Ohms Output Gain @ 10 MHz Output level 1 dB compression @ 10 MHz Return loss Input (S11) @ 10 MHz... -
Page 14: Warranty And Service
Do not attempt to service or adjust the instrument unless another person, capable of providing first aid or resuscitation, is present. Please remember that any alteration or repair may void the warranty. Contact SDI with any questions or to request an RMA if a repair is needed. - Page 15 EC Declaration of Conformity All options of FS-100RM-10 Low Noise Frequency Multiplier has been designed and manufactured in accordance with the below referenced Standards and complies with all essential requirements of the Directives listed below. Directives: 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.
