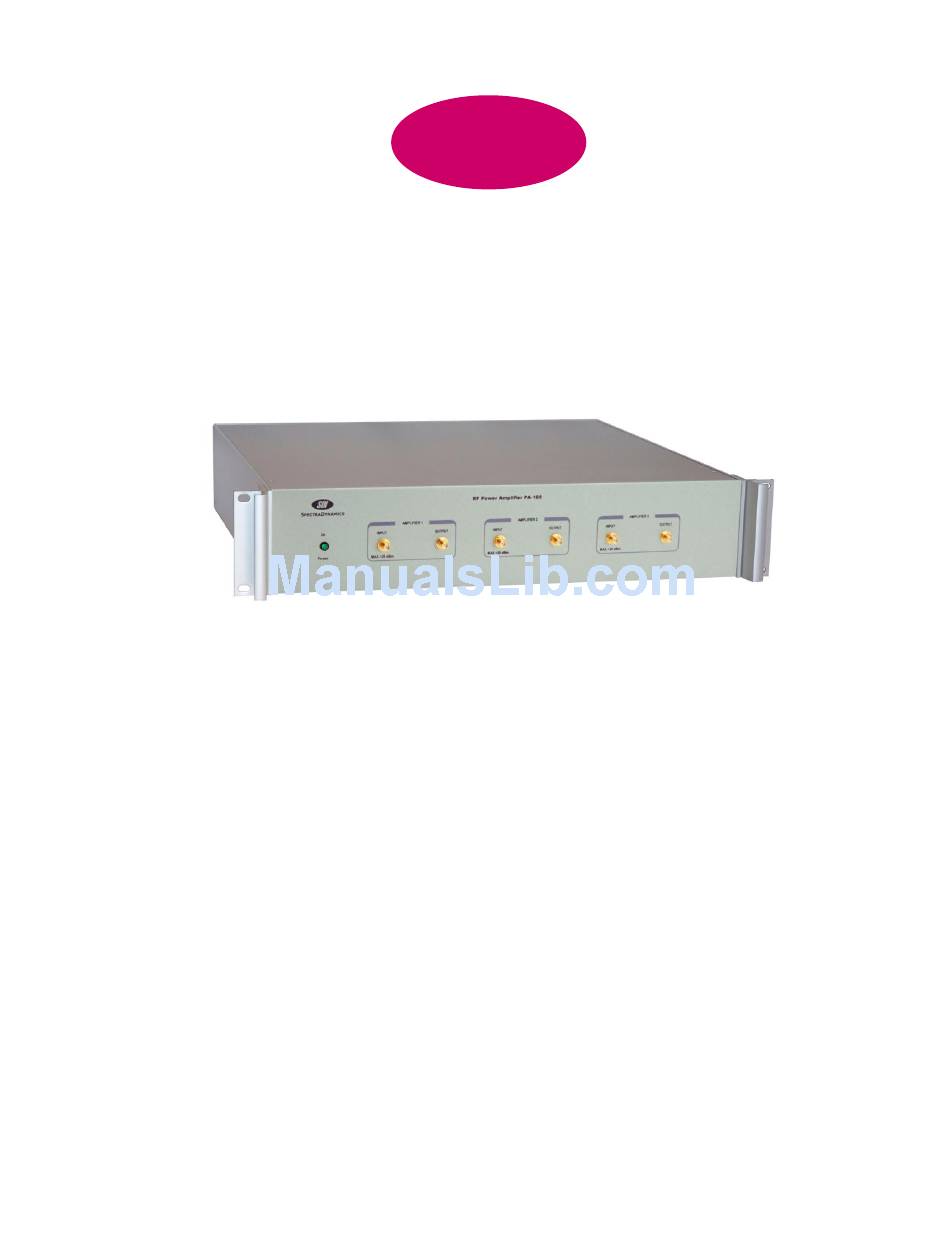

- Page 1 PECTRA YNAMICS, RF P OWER MPLIFIER PA-100 PERATING ANUAL PECTRA YNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
- Page 3 Description The PA-100 is an RF power amplifier designed to work for 10 MHz to 200 MHz bandwidth. The PA-100 contains three RF power amplifiers. Each RF power amplifier gain is typically +22 dB and the maximum output level is +34 dBm.
-
Page 4: Safety And Preparation For Use
Line Voltage This instrument may be setup to operate on 100-120 or 220-240 VAC and a line frequency of 50 to 60 Hz. The setup voltage for this PA-100 is specified on page 4. Fuse A 2.0 Ampere 250V slow-blow fuse is used for 100-120 VAC operation. -
Page 5: The Front Panel
The Front Panel AC Power LED The LED is on when power is applied to unit and the unit is operating properly. AMPLIFIER 1 INPUT SMA input to RF power amplifier #1. The maximum input level is +15 dBm. OUTPUT SMA output of power amplifier. -
Page 6: The Back Panel
The Back Panel AC POWER ENTRY MODULE The PA-100 is configured to operate on: 100-120 VAC 220-240 VAC Copyright © SpectraDynamics, Inc. 2011... -
Page 7: Operation
This unit is designed to operate only with the specified voltage on page 4. For conversion to a different voltage of operation contact SDI. To operate the unit, locate the AC power entry module on the rear and connect the power cable. -
Page 8: Specifications
Specifications PARAMETER CONDITIONS UNITS Input Power Bandwidth 3 dB 10 - 200 Gain @ 10 MHz @ 100 MHz @ 200 MHz Impedance Input Ohms Output 10 MHz Distortion Output level +30dBm Output level +33dBm 100 MHz Distortion Output level +30dBm Output level +33dBm 200 MHz Distortion Output level +30dBm... -
Page 9: Warranty
SDI’s option, any product not meeting the said specifications. This warranty shall be in effect for one (1) year from the date an PA-100 is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. - Page 10 PA-100/R02...
